Pfisterer EST145 Dry Outdoor Substation Cable Terminations

Published 04 Oct 2019

Dry Type Terminations for Substations

Thorne & Derrick are Main Distributors & Stockists for the Pfisterer range of Medium Voltage and High Voltage Power Products including Connex Plugs, Cable Jointing Tools, Sicon Connectors, Surge Arresters and Electrical Safety Equipment.

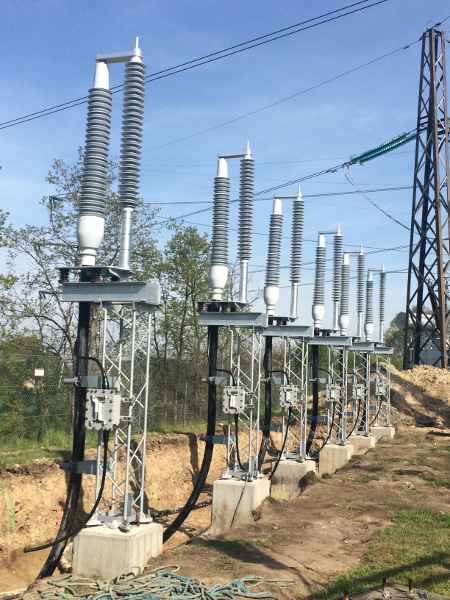

Image Courtesy: Emil Zlatev (Trainer & EHV Extra High Voltage Cable Jointer At Pfisterer)

Pfisterer MV HV cable plugs and terminations are suitable for all voltage levels and applications where medium or high voltage power cables must be reliably connected, terminated and distributed within the electricity supply industry.

The self-supporting Pfisterer IXOSIL EST SUB design replaces conventional oil-filled or gas-filled outdoor terminations in substations. The supporting elements can be installed seperately on the substation steel structure while the cable termination can be fitted on the ground and then mounted in the supporting elements afterwards.
