132kV Termination Using Pfisterer IXOSIL EST SUB Self Supporting Cable Termination
Published 12 Nov 2018
- Application: 132kV Cable Termination – Pfisterer EST SUB Self Supporting Type
- Cable Type: Pfisterer EST SUB Self Supporting Cable Termination
- Cable Jointer: Andy O’Malley (IBEW 258 EHV Cable Jointer / Cable Splicer – Allteck)
- Featured Manufacturer: Pfisterer

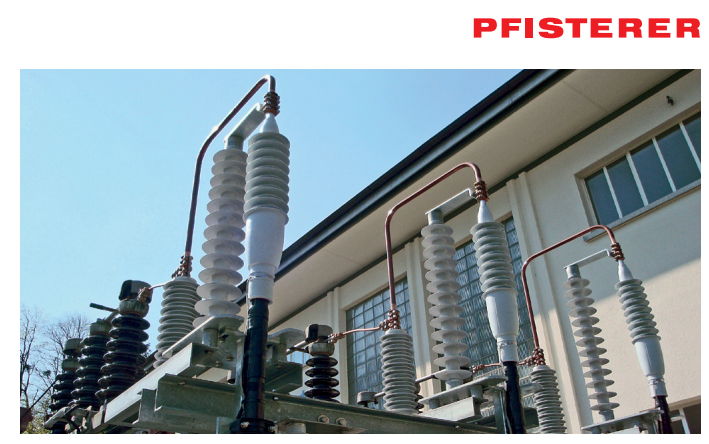

Pfisterer EST SUB
Self Supporting Cable Termination
Pfisterer oil-free and gas-free cable terminations for high voltage cables are environmentally friendly and reduce installation times by the HV Jointer – the cable terminations are available for voltage levels ranging from 52kV to 170kV and conductor cross-sections up to 2500sqmm.
The self-supporting Pfisterer EST design replaces conventional oil-filled and gas-filled outdoor cable terminations both in overhead line towers and transformer stations – the cleverly designed head fitting allows for any thermal expansion in the conductor.
The mounting frame on overhead line towers is now no longer needed since the cable termination can be installed onto the HV cable on the ground and then lifted onto the tower – this leads to very short turn-off periods of the overhead lines.
Pfisterer IXOSIL EST SUB Advantages
- Oil- and gas-free
- Leak-proof
- Compensation of cantilever forces
- Enables installation on the ground, no mounting frames required
- Time savings of up to 50% during cable preparation due to new technology
- 100% electrically routine-tested termination
- Low weight cable termination
