Concrete Infill Access Cover

Concrete Infill Access Cover

Concrete Infill

Access Covers

With a large range of access covers to compliment our access chamber systems, individual needs can be met with a bespoke cable protection combination. Cubis AX-S™ Concrete Infill covers offer flexibility in size and design with bespoke options suited to client needs.Covers can also be fitted with a variety of locking features.

Cubis Concrete Infill access covers are suitable for foot-ways, pedestrian areas and comparable areas, car parks or parking decks.

How do access covers work? Cubis access covers are used in combination with access chamber systems to protect the infrastructure networks below. A suitable frame with additional cross pieces are fitted to the chamber top. The AX-S™ Concrete Infill covers are then fitted carefully into the frame.

Concrete Infill Access Chamber Cover Installation

Concrete Infill Access Cover Installation

Access Covers

Concrete Infill Access Cover

Features & Benefits

Variable Sizes

Concrete Covers can be manufactured in a variety of sizes, bespoke to unique requirements. Cross-beams and cross-pieces can be used to build multi cover units.

Bespoke Identity

Covers can be badged with bespoke information to enable easy identification by operatives.

Access Cover For Safety

When it comes to keeping infrastructures safe, concrete infill access covers are a perfect solution. Covers are subtle and disguised as to deter attention from thieves. This eliminates the cost of additional safety measures such as the guarding of open chambers. AX-S™ Concrete Infill access covers have spring-loaded cylinder locking mechanisms that can be built in. This allows for the chambers to be locked securely. Locking keys can also be adapted to suit end user’s needs.

Long lifespan

Cubis access covers have long lifespans, reducing costs for replacements by the end user.

Design

With an anti-slip design, slip resistance increases as the product ages. Concrete covers are tapered and posses lifting point in the centre of the cover (as apposed to the corner). This allows one person to lift and slide the cover out.

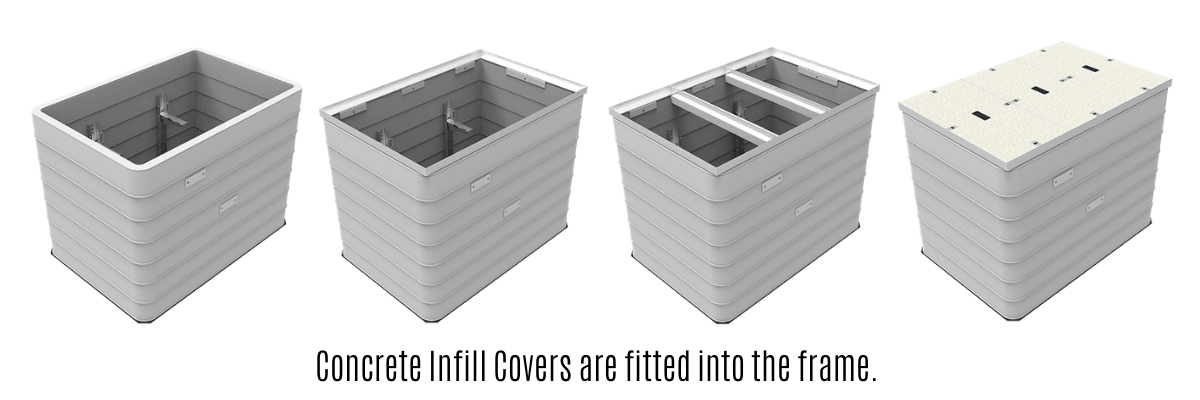

Concrete Infill Access Covers How It Works




How The Concrete Infill Cover Works

The Concrete Infill access cover is used for infrastructure and cable protection, when used in conjunction with an access chamber. Covers are available in a variety of different sizes, and can be made to bespoke requirements to suit client needs. Concrete Access Cover leaves are tapered and possess lifting points in the centre of the cover. This allows one person to lift and slide the cover out, enabling easy access.

This Cover Meets requirements of BS EN124: 1994 (B125)

Meets relevant European and British standards and is kitemarked for compliance.

➡ See also | Access Chambers | Cable Protection | Cable Trough

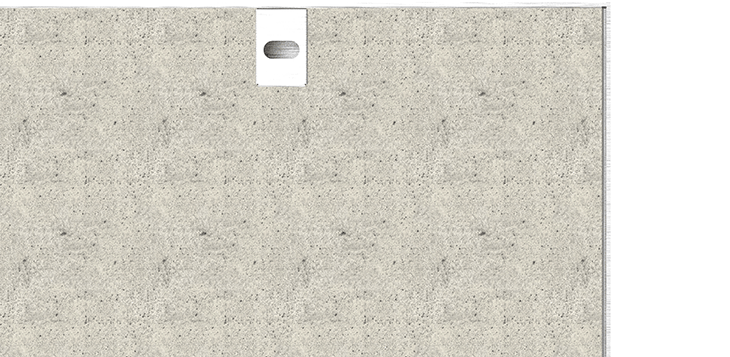

concrete cover materialMaterials

Concrete & Rolled Steel

The frames, covers and cross pieces are manufactured from rolled steel section in compliance with BS1449 and galvanised in compliance with BS EN ISO 1461 .

Individual covers are filled with concrete.





Concrete Cover Sizesconcrete cover sizes

Concrete Infill covers are available in a range of standard sizes as well as available as bespoke covers. Cross-beams and cross-pieces can be used to build multi-cover units with options in security and badging.

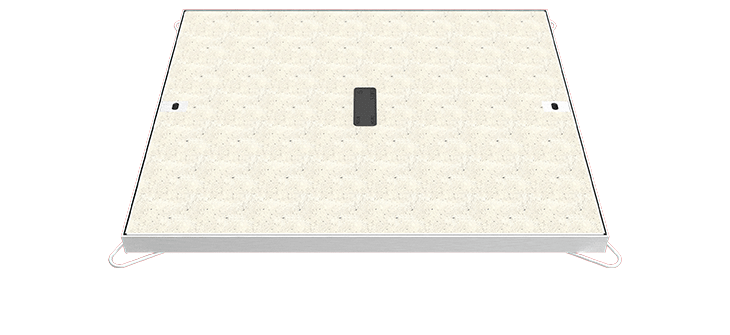

concrete cover load rating

Load Rating

AX-S™ Concrete Infill covers are suitable for installation in environments rated to B125 under EN124.

Suitable for footways, pedestrian areas and comparable areas, car parks or parking decks.

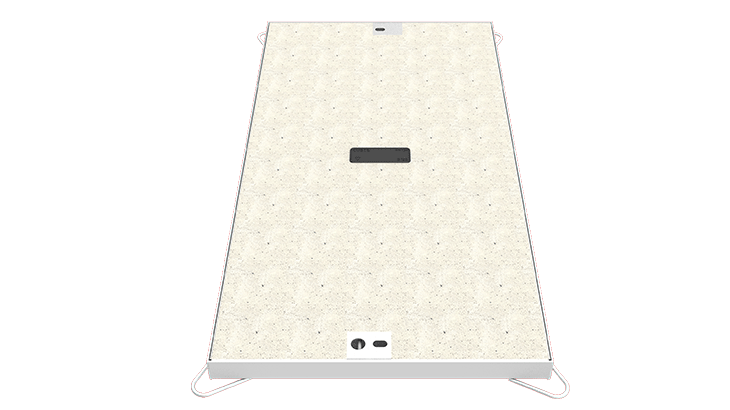

concrete cover front

Long standing Approvals

AX-S™ Concrete Infill covers are the sole approved footway cover used by end users such as Openreach and Virgin Media.















Concrete Infill Access Cover

Technical Specification

Cover Size

Weight

Product Code

300 x 300 B125 20.3 kg FCCI07-03000300-00*0*B**1
450 x 300 B125 30 kg FCCIMP-04500300-00*0*B**1
550 x 315 B125 34 kg FCCIMP-05500315-00*0*B**1
600 x 450 B125 48 kg FCCIMP-06000450-00*0*B**1
610 x 610 B125 72 kg FCCIMP-06100610-00R0*B**2
740 x 471 B125 64 kg FCCI73-07400471-00*0*B**1
750 x 600 B125 74 kg FCCI03-07500600-00*0*B**1
900 x 600 B125 90 kg FCCI96-09000600-00R0*B**1
915 x 445 B125 71 kg FCCIMP-09150445-00*0*B**1
1200 x 600 B125 120 kg FCCIMP-12000600-00*0*B**2
1310 x 610 B125 132 kg FCCIMP-13100610-00*0*B**2
2319 x 741 B125 264 kg FCCI10-23190742-00*0*B**3



access cover types


For additional data sheets contact Thorne & Derrick, or visit Cubis’ technical library here


Thorne & Derrick are also distributors of Filoform duct sealing products.

Protection of Cables Against Water Ingress (Flood), Gas Migration (Explosion) & Fire – see duct sealing systems for further information
