Ductile Iron Access Cover

Ductile Iron Access Cover

Ductile Iron

Access Covers

With a large range of access covers to compliment our access chamber systems, individual needs can be met with a bespoke cable protection combination.

Cubis AX-S™ Ductile Iron covers offer flexibility in design with bespoke options suited to client needs. Covers can also be fitted with a variety of locking features.

How do access covers work? Cubis access covers are used in combination with access chamber systems to protect the infrastructure networks below.

Ductile Covers are indexed to ensure correct fitting and developed using a locked, sequential cover opening system.

Cubis Ductile Iron Cover Installation

Cubis Ductile Iron Cover Installation

Access Covers

Ductile Iron Access Cover

Features & Benefits

Security

Access chamber covers have security options, which can be added with the use of a standard feature such as a spring bar, captive hinge, factory fitted security bolts and screws; or by providing the facility to enable a locking kit to be fitted retrospectively.

Access Cover For Safety

The development of a comprehensive range of hinged access covers and gully grates, helps minimise the risk of injury through static lifting of ironwork.

Durability

Cubis access covers have long lifespans, reducing costs for replacements by the end user. Optimum performance is ensured through the seating contact areas, the thickness of the frame and controlled manufacturing tolerances.

Quality Assurance Design

Ductile Iron Covers are manufactured under BS EN ISO 9001 quality system and independently tested and certified by the British Standards Institute

Ductile PErformance

This combination of material properties allows the design and production of many innovative features as well as making significant weight savings that could not be achieved with less sophisticated materials.

EN124 Rating

Access covers meet the requirements of the European Standard BS EN 124.




How The Ductile Iron Cover Works

The Ductile Iron access cover is used for infrastructure and cable protection, when used in conjunction with an access chamber. Ductile Covers are indexed to ensure correct fitting and developed using a locked, sequential cover opening system. Bespoke security locking options are available. Suitable for areas imposing high wheel loads, e.g. docks and aircraft pavements.

This cover meets the requirements of the European Standard BS EN 124.

See also | Access Chambers | Cable Protection | Cable Trough

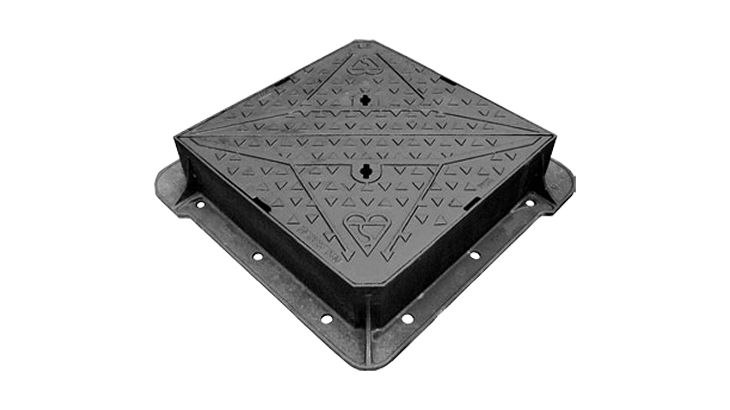

ductile materialsMaterials

Ductile Iron Access Chambers

Ductile iron maintains the traditional qualities of cast irons, resulting from the high carbon content.

  • compression strength
  • castability
  • abrasion resistance
  • machinability
  • fatigue strength



Load Ratingductile iron load rating

AX-S™ Ductile Iron covers are suitable for installation in environments rated up to F900 under EN124.

Suitable for areas imposing high wheel loads, e.g. docks, aircraft pavements.






For additional data sheets contact Thorne & Derrick


Thorne & Derrick are also distributors of Filoform duct sealing products.

Ductile Iron Access Chambers

Protection of Cables Against Water Ingress (Flood), Gas Migration (Explosion) & Fire – see duct sealing systems for further information
