Recessed Access Cover

Recessed Infill Access Cover

Recessed

Access Covers

With an extrensive range of access covers to compliment our access chamber systems, individual project requirements can be met with a bespoke cable protection combination.

Cubis AX-S™ Recessed Covers are reputable in the construction and utilities industries for being high-quality and safe to use. Recessed Access Covers have excellent value for money and are secure when installed, with fitted locking options to enhance the security of the infrastructure networks.

How do access covers work? Recessed access covers are used for the protection of infrastructure networks, when used in combination with an access chamber. Covers are available to meet client needs, and have bespoke & customisation options.

Recessed Covers Installation

Recessed Access Cover Installation

Access Covers

RECESSED Access Cover

Features & Benefits

Variable Sizes

Recessed access covers can be manufactured in a variety of sizes, bespoke to unique requirements. Cross-beams and cross-pieces can be used to build multi cover units.

Bespoke Identity

Covers can be badged with bespoke information to enable easy identification by operatives.

Access Cover For Safety

AX-S™ Recessed access covers have bolt-down locking mechanisms that can be built in. This allows for the chambers to be locked securely. Locking keys can also be adapted to suit end user’s needs.

Design

Recessed covers have centralised lifting points in the centre (as apposed to the corner). This allows for one person to lift and slide the cover out. In line with industry specification, individual AX-S™ Recessed Covers will not weigh more than 78kg even when filled, and the cover will not bow under the strain of filled materials. Manufactured from 6mm steel, these access covers can also be filled with any material to suit the surrounding area.

Recessed Access Covers How It Works




How The Recessed Cover Works

The Recessed access cover is used for infrastructure and cable protection, when used in conjunction with an access chamber. Covers are available in a variety of different sizes, and can be made to bespoke requirements to suit client needs. Recessed Access Cover leaves are tapered and possess lifting points in the centre of the cover. This allows one person to lift and slide the cover out, enabling easy access.

This Cover Meets requirements of BS EN124: 1994 (B125)

See also | Access Chambers | Cable Protection | Cable Trough



recessed materialsMaterials

Rolled Steel Access Covers

The frames and cross pieces are manufactured from rolled steel section in compliance with BS1449 and galvanised in compliance with BS EN ISO 1461

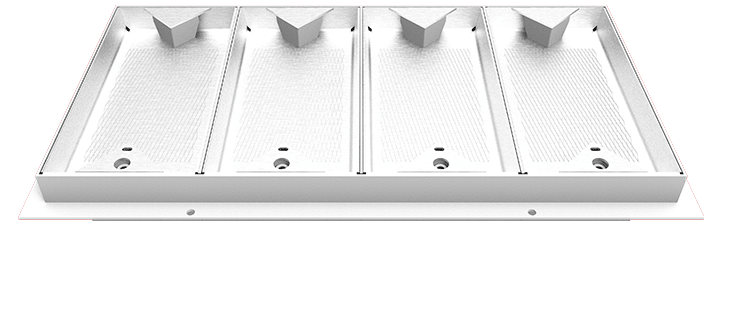

Sizesrecessed available sizes

Recessed covers are available in a range of standard sizes as well as available as bespoke covers. Cubis’ Recessed range can be manufactured in a large size range, using cross-beams and cross-pieces to build multi-cover units with options in security and identification.







recessed load rating

Load Rating

AX-S™ Recessed covers are suitable for installation in environments rated to B125 under EN124.

Suitable for footways, pedestrian areas and comparable areas, car parks or parking decks.









Shared spacesRecessed shared spaces

The approved solution for areas that feature slow moving traffic and where the demarcation between pedestrians and drivers is minimised.

















AX-S™ Recessed Access Cover

Technical Specification

Cover Size

Weight

Product Code

450 x 450 (75mm) 33.2 kg FCRS45-04500450-7500*B**1
600 x 450 (75mm) 39.3 kg FCRS01-06000450-7500*B**1
610 x 610 (75mm) 64.9 kg FCRS05-06100610-7500*B**2
725 x 255 (75mm) 40.7 kg FCRS02-07250255-7500*B**1
750 x 600 (75mm) 77.8 kg FCRS03-07500600-7500*B**2
915 x 445 (75mm) 75.9 kg FCRS04-09150445-7500*B**3
1200 x 900 (75mm) 195.7 kg FCRSMP-12000900-7500*B**6
1200 x 1200 (75mm) 218.5 kg FCRSMP-12001200-7500*B**6
1310 x 610 (75mm) 128.9 kg FCRS06-13100610-7500*B**4
1500 x 915 (75mm) 240.4 kg FCRSMP-15000915-7500*B**9
1690 x 710 (75mm) 140.2 kg FCRS11-16900710-7500*B**5
1800 x 675 (75mm) 198.0 kg FCRSMP-18000675-7500*B**5
2285 x 710 (75mm) 230.8 kg FCRS10-22850710-7500*B**6
610 x 610 (100mm) 72.8 kg FCRS05-06100610-1000*B**2
1000 x 1000 (100mm) 211.0 kg FCRSMP-10001000-1000*B**6
1100 x 800 (100mm) 210.0 kg FCRSMP-11000800-1000*B**6
1200 x 900 (100mm) 197.0 kg FCRSMP-12000900-1000*B**6
1500 x 1500 (100mm) 412.6 kg FCRSMP-15001500-1000*B**+
2100 x 1000 (100mm) 365.0 kg FCRSMP-21001000-1000*B**8



access cover types



Access Covers For Shared Spaces

What are Shared Surfaces?

  • Areas where the demarcation between pedestrians and drivers is minimised.
  • Use deep paving materials rather than typical road construction materials.
  • Areas that have low speed limits.
  • Qualify as B125 areas because they feature slow moving traffic.

What happens when a B125 access cover is trafficked by vehicles?

access covers in shared spaces


For additional data sheets contact Thorne & Derrick


Thorne & Derrick are also distributors of Filoform duct sealing products.

Protection of Cables Against Water Ingress (Flood), Gas Migration (Explosion) & Fire – see duct sealing systems for further information
