Banding, Strapping & Clamping Systems for Subsea & Offshore Cables & Umbilicals
Monel Banding & Strapping
Monel, inconel and titanium banding and strapping systems manufactured by BAND-IT are specified for various marine, offshore and subsea fastening applications. The two main types of Subsea Cable Strapping & Clamping Straps are Monel 400 Banding and Inconel 625.
Monel 400 Strapping & Banding
A nickel-copper alloy with high strength and excellent corrosion resistance in a range of media including sea water, hydrofluoric acid, sulfuric acid and alkalies. Monel 400 metal banding is used for marine engineering, chemical and hydrocarbon processing equipment, valves, pumps, shafts, fittings, fasteners and heat exchangers.
Inconel 625 Strapping & Banding
A nickel-chromium-molybdenum alloy with an addition of niobium that acts with the molybdenum to stiffen the alloys matrix and provide high strength without a strengthening heat treatment. Inconel 625 strapping alloy resists a wide range of severely corrosive environments and is especially resistant to pitting and crevice corrosion.
Used in chemical processing, aerospace, marine and subsea, pollution-control equipment and nuclear reactors. Inconel 625 metal banding strapping systems are specified for subsea diver-less clamp connections.
Monel 400 BANDing & Strapping PRODUCT SPECIFICATION
The following table overviews the options for Monel 400 type banding and strapping systems from the standard range of BAND-IT clamping products;
| BAND-IT Part No | Strapping Material | Band Width (mm) | Band Thickness (mm) | Average Braking Strength of Banding (lbs) | Package Quantity | Weight (kg) |
|---|---|---|---|---|---|---|

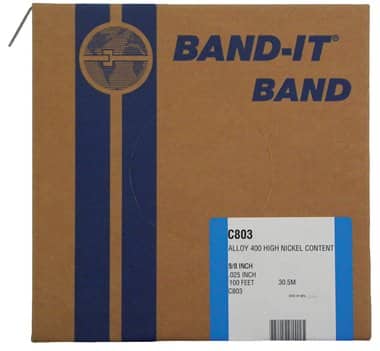

| BAND-IT C80399 | Alloy Monel 400 Band Strapping | 9.6 | 0.64 | 630 | 30.5m/Roll | 1.7 |
| BAND-IT C80499 | Alloy Monel 400 Band Strapping | 12.7 | 0.76 | 1050 | 30.5m/Roll | 2.4 |
| BAND-IT C80599 | Alloy Monel 400 Band Strapping | 15.9 | 0.76 | 1310 | 30.5m/Roll | 3.5 |
| BAND-IT C80699 | Alloy Monel 400 Band Strapping | 19.1 | 0.76 | 1595 | 30.5m/Roll | 3.6 |
Monel 400 Buckles Product Specification
The following table overviews the options for Monel 400 type buckles for use with banding and strapping systems from the standard range of BAND-IT clamping products;
| BAND-IT Part No | Buckle Material | Buckle Width (mm) | Quantity | Weight (kg) |
| BAND-IT C85399 | Alloy Monel 400 Buckles | 9.6 | 100 per box | 0.4 |
| BAND-IT C85499 | Alloy Monel 400 Buckles | 12.7 | 100 per box | 1.0 |
| BAND-IT C85599 | Alloy Monel 400 Buckles | 15.9 | 100 per b0x | 1.0 |
| BAND-IT C85699 | Alloy Monel 400 Buckles | 19.1 | 100 per box | 1.7 |
BAND-IT installation tools
(Not all tools are compatible with all banding and straipping sizes)

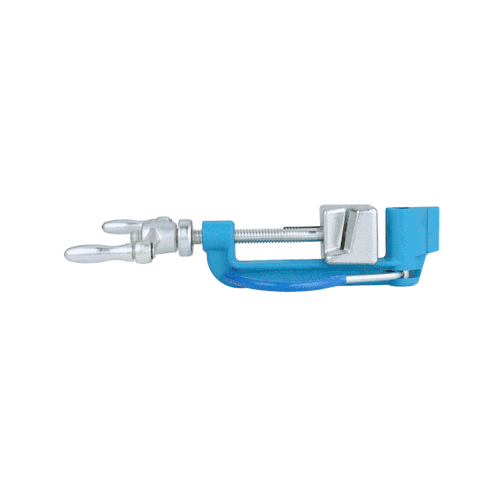

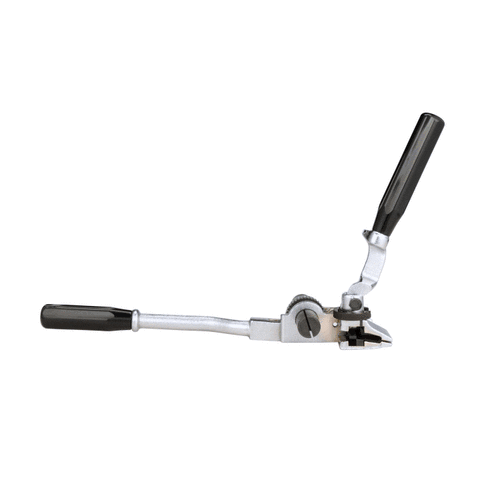

| BAND-IT C00169 Standard Banding Tool | BAND-IT C00369 Heavy Duty Banding Tool | BAND-IT C40099 Rachet Tool |

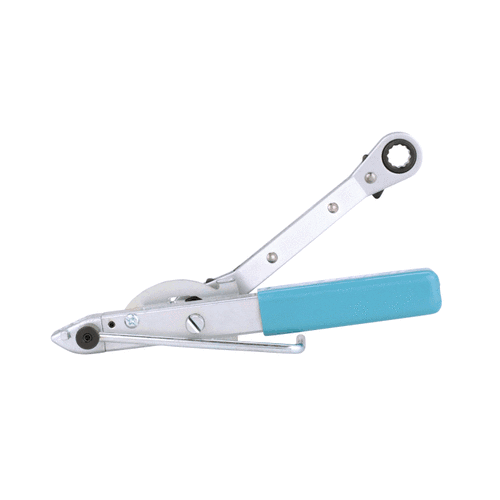

BAND-IT J02069 POK-IT II Tool With Cutter |
 |
 |
 |
 |
Band-It Offshore and Subsea Strapping Systems are in service throughout the global marine and offshore industry providing high strength containment of cable and pipes in extreme service conditions.
