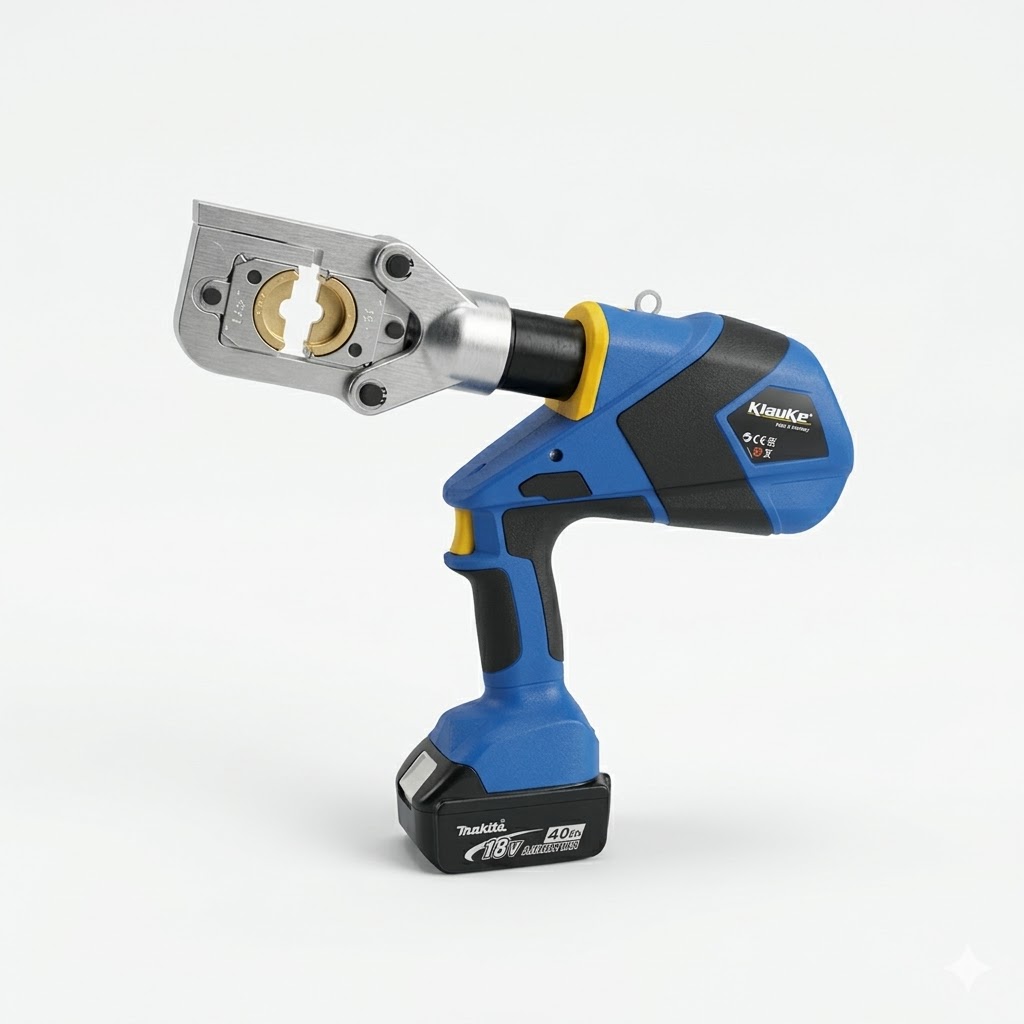

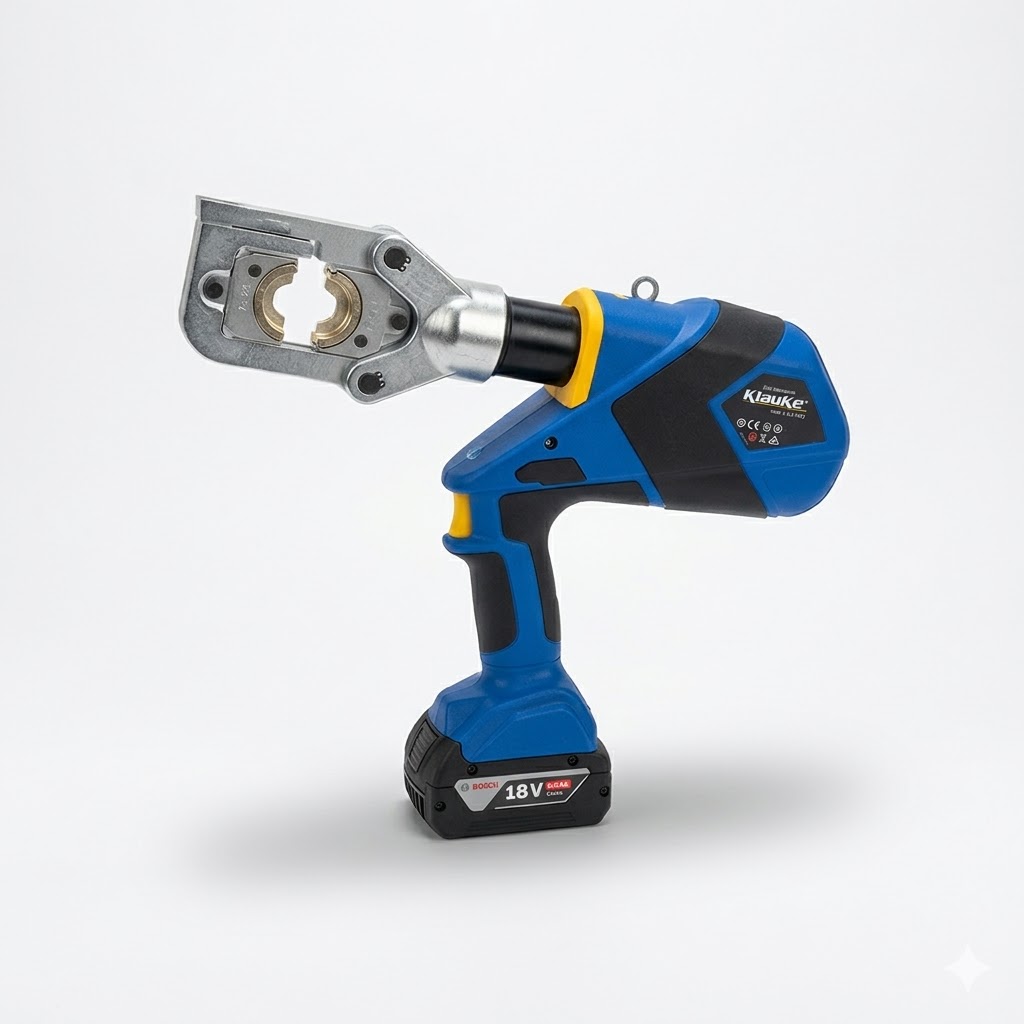

Klauke EK60UNV Battery Powered Hydraulic Universal Tool

Klauke EK60UNV Battery Powered Hydraulic Universal Tool

Klauke EK60UNV Battery Powered Hydraulic Universal Tool

Universal Tool

Cutting & Crimping Tool

The Klauke EK60UNV is a universal tool that can be used as a battery powered cable crimping tool and battery operated cable cutting tools that comes with one head for crimping, cutting and punching – one tool for all applications.

The Klauke EK60UNV is ideal in the assembly field where all common jobs can be carried out using one battery powered hydraulic power tool.

All tool data in view thanks to display and i-press® app on the universal tool.

Klauke EK60UNV

Klauke EK60UNV

Battery Powered Hydraulic Universal Tool Klauke EK60UNV

Features

  • Choose your battery system: Bosch or Makita
  • All data can be easily read via Bluetooth
  • Universal head flip top style, rotatable
  • Simple and safe: One-button operating concept for controlling all tool functions
  • Effortless working due to balanced centre of gravity
  • LED for work area illumination
  • 2-stage hydraulic system with fast feed and power stroke
  • Simple and safe: Automatic retraction after operation completed (crimping or cutting)
  • Always ready-to-use thanks to battery charge and service display

Technical Specification

The following table outlines the performance specification of the Klauke EK60UNV crimping tool:

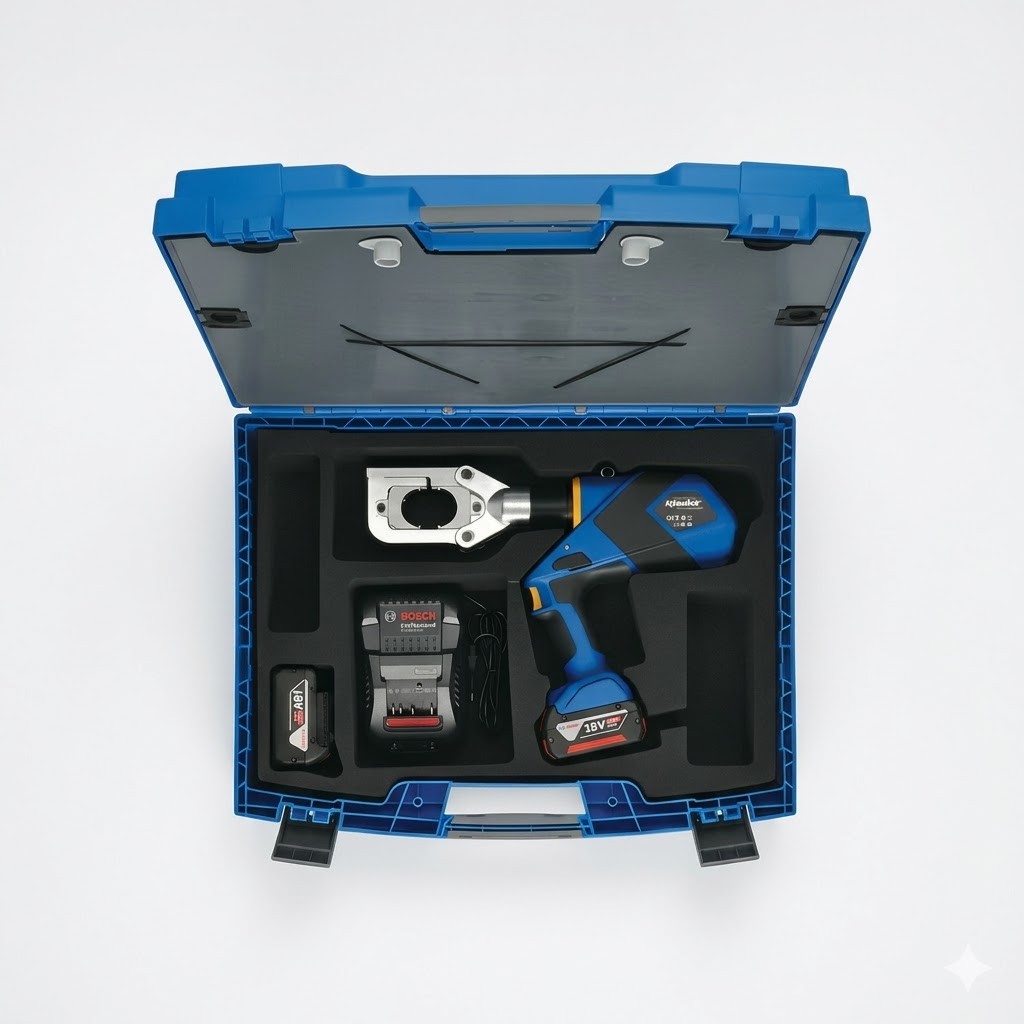

BOSCH BATTERY SYSTEM

Cable crimping force 60 kN
Stroke 42 mm
Crimping tool range 6-300sqmm
Crimping tool cycle 3 s to 5 s (depending on cross-section)
Cutting range max. 40 mm dia.
Punching capacity
to 64 mm dia. round; to 92 x 92 mm square
Battery voltage 10.8 V
Battery capacity 5 Ah, Li-Ion
Charging time approx 45 min
Weight incl. battery 4.8 kg
Ambient temperature -10°C to +40°C

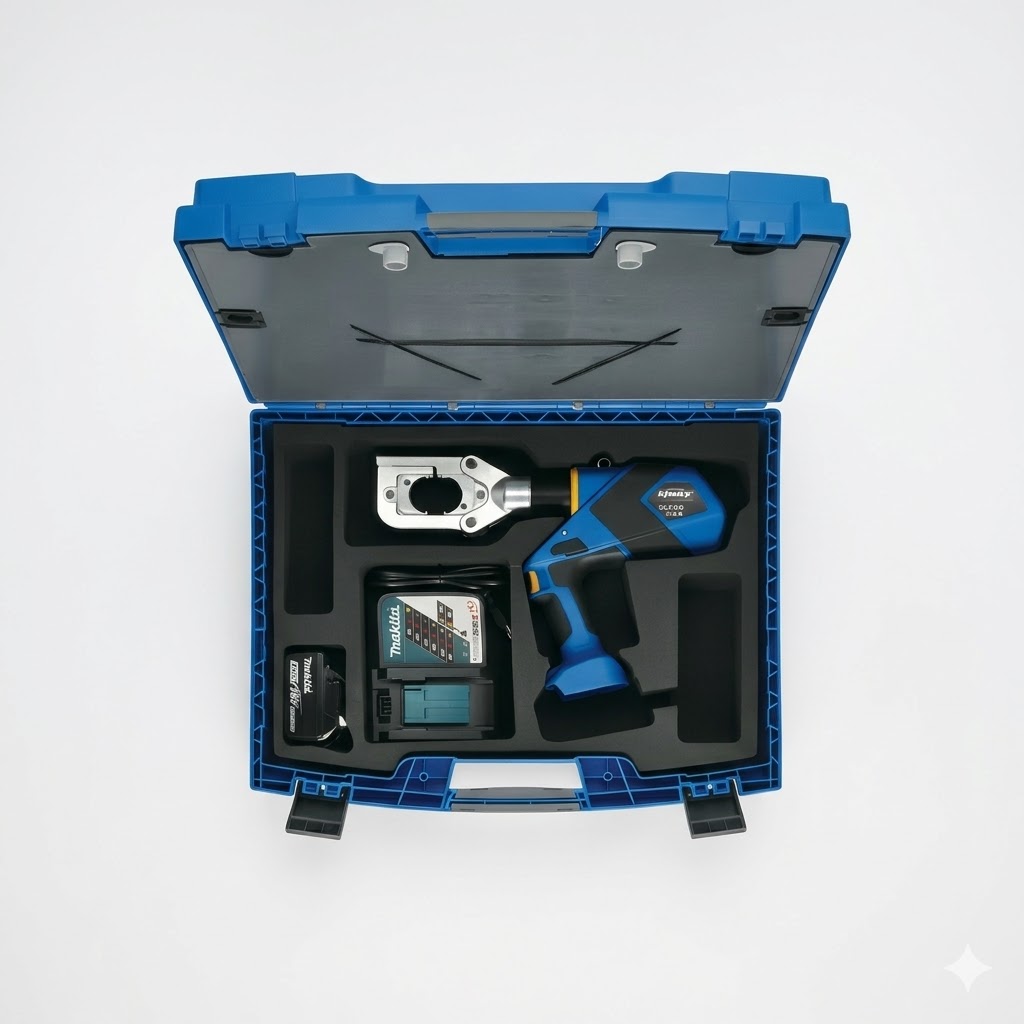

MAKITA BATTERY SYSTEM

Cable crimping force 60 kN
Stroke 42 mm
Crimping tool range 6-300sqmm
Crimping tool cycle 3 s to 5 s (depending on cross-section)
Cutting range max. 40 mm dia.
Punching capacity
to 64 mm dia. round; to 92 x 92 mm square
Battery voltage 10.8 V
Battery capacity 4 Ah, Li-Ion
Charging time approx 36 min
Weight incl. battery 4.8 kg
Ambient temperature -10°C to +40°C
CABLE TOOLS

Should you require technical assistance to select the correct cable crimping or cable cutting tools please contact us.

Thorne & Derrick are Specialist Distributors of cable tools to enable the preparation of all LV MV HV cables prior to the installation of Joints, Terminations & Connectors – this includes Klauke, Cembre, Alroc and Boddingtons cable jointing tools for removal of cable sheath, screen and insulation on 11/33kV (MV) and 66kV/132kV (HV) power cables.
