Cable Jointers Tools Sets

Nexans – MV Medium Voltage Cable Jointers Tool Kits 11kV 33kV

Nexans Euromold cable jointers tools sets are used for preparing 11kV and 33kV medium voltage power cables with XLPE insulation and bonded semi conductive screens – recommended for stripping MV cables up to 33kV to enable the installation of Euromold separable connectors.

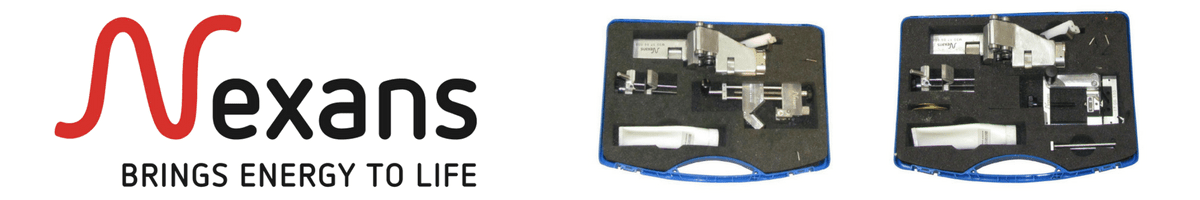

Medium voltage cable jointers tool kits are available in two sets (Nexans CPTK1 | CPTK2) and both are supplied in a hard wearing, foam filled case protecting the cable jointing tools from site damage and ensuring longevity of the tool sets.

Nexans CPTK1 MV Medium Voltage Cable Jointers Kit

Nexans CPTK1 MV Medium Voltage Cable Jointers Kit

CABLE JOINTERS TOOLS SETS

Nexans CPTK1

MV Medium Voltage Cable Jointers Kit

  • P20 Tool – Semi screen removal tool over core insulation diameters 10-50mm
  • M30 – 2-in-1 cable sheath and cable insulation removal tool 20-70mm diameter cables
  • Plastic insert for M30 cable tool
  • Chamfering tool – suit XLPE insulated cables 15-60mm diameters including 11kV/33kV
CPTK2 MV Medium Voltage Cable Jointers Kit

CPTK2 MV Medium Voltage Cable Jointers Kit

Nexans CPTK2

MV Medium Voltage Cable Jointers Kit

  • Rheycut II cable peeling tool with stop rings, size 2
  • M30 – 2-in-1 cable sheath and cable insulation removal tool
  • Plastic insert for M30 cable tool
  • Size 2 chamfering tool

Please note all cable jointing tools can be purchased separately if required.

P20 Peeling Tool

P20 Peeling Tool

Nexans P20 peeling tool is used to remove the extruded outer semi conductive cable screen of MV cables with an over core insulation diameter between 10-50mm. An adjustable v-plate guide allows for different stripping speeds and include a radial screen cut for medium voltage power cables. The blade cutting depth can be fixed which is particularly useful when preparing the same cables offering a smooth and faultless finish every time.

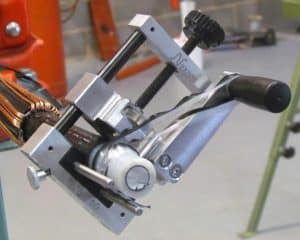

Rheycut II Peeling Tool With Stop Rings

Rheycut II Peeling Tool With Stop Rings

Nexans Rheycut II peeling tool removes outer semi conductive cable screen on medium voltage cables with an over core insulation diameter between 15-60mm and can be used with or without length control. Using the jointers tool without the length control permits the semi-con layer to be removed up to a length of 25mm measured from the cut-off edge of the outer cable sheath.

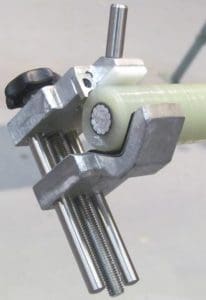

Chamfering Tool

Chamfering Tool

Nexans chamfering tool removes sharp edges at the cut-off edge of cable insulation to ease installation of slip-on or cold shrink joints and accessories for cables with XLPE insulation, diameters from 15-60mm. A specially formed blade provides a 35 degree chamfer radius at the cut-off edge which reduces the force required to install non-size sensitive slip-on cable joints and terminations, typically at 33kV.

M30 Cable Sheath & Cable Insulation Cutter

M30 Cable Sheath & Insulation Cutter

M30 cable sheath and XLPE insulation cutting tool can be used to remove the outer cable sheath/jacket and polymeric insulation with a diameter from 20-70mm (20-31mm when using the plastic insert) – can also provide spiral cutting or circumferential cutting of 11kV/33kV cables. The cutting blade of the M30 cable tool has an adjustable cutting depth and is able to cut wall thicknesses up to 14mm and is specially formed with a guiding system lifting the material to avoid damaging cable layers underneath.
