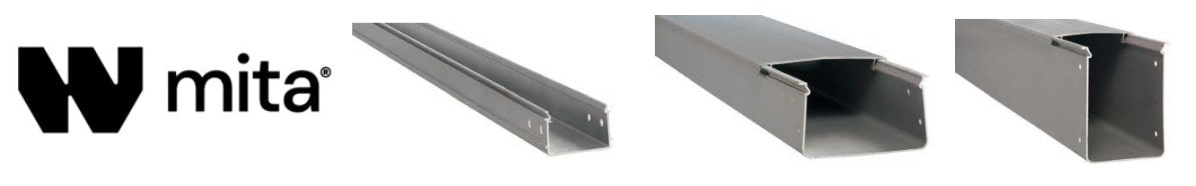

Cabsys Cable Tray

GRP Cable Tray

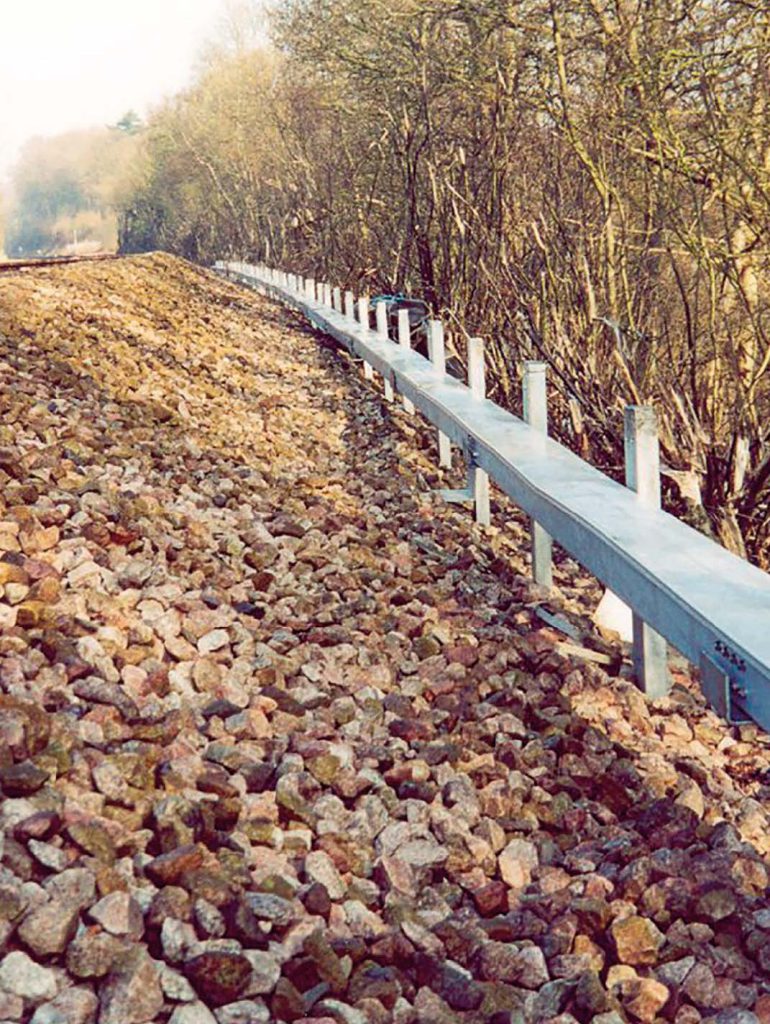

CABSYS cable tray manufactured by MITA powered by WIBE, is specified for rail cable containment throughout Network Rail and London Underground – GRP cable tray provides extreme corrosion resistance, zero halogen properties and high strength cable support for LV (Low Voltage), MV (Medium Voltage) and HV (High Voltage) power, signal and instrumentation cables.

As a comprehensive manufacturer of corrosion resistant industrial cable support products, Wibe Group have the cable trough support and management solutions and expertise to specify a suitable solution, and deliver a product which can support any type of power circuit, cable, data and instrumentation.

GRP cable tray from the CABSYS range is available in a range of depths with solid or slotted base and covers (lids). The cable tray system is supported by a complete range of accessories and ancillaries including flat bends, external risers, internal risers, tee/cross units, reducers and couplers.

GRP Cable Support Solutions

Cable Trays

CABSYS cable trays offer a market leading design, higher load capacity and a longer life span. A complete offer available in:

PY1, PY1C, PY2, MX resin type cable trays
Height: 50, 60, 110, 210mm
Width: 50, 75, 100, 150, 200, 300, 400mm
Length: 3m and 6m
Base: Solid (GRP) or slotted (GSP)
Angle of Bends: 45 or 90 (30 and 60 optional)
Radius Bends: 300mm (600, 900 and 1500mm optional)
See also Cable Cleats | Cable Hooks

GRP GmaxR is the registered trademark of MITA by WIBE for the 6m cable troughing (elevated) which can support a heavy duty loading without any middle cable support.

Solid or Slotted Base CABSYS Cable Tray

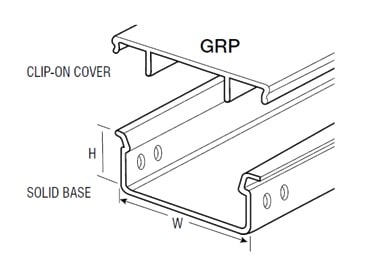

GRP Solid Base | CABSYS Cable Trays

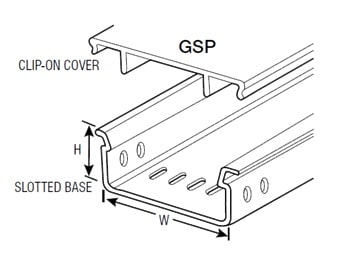

GSP Slotted Base | CABSYS Cable Trays

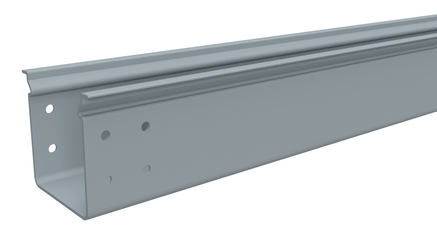

GRP Cable Tray

Selection & Ordering from the CABSYS Range of GRP Cable Tray

GHL Series GRP Tray	Standard Product	Alternative Options
Material	Resin (PY2, PY1, MX,PY1C)	Other resins available on request
Depth	50mm, 100mm, 110mm, 210mm (please check width options
Length	3000mm	6000mm
Width	50-400mm
Coupler Hole Diameter	8mm clearance
Construction	Solid or Slotted Base
Construction of fittings	316 stainless steel bolts and assembly plates	Grylon bolts or GRP couplers
Radius of Bends	300mm	600mm, 900mm or 1500mm
Angle of Bends	45° or 90°	30° or 60°

Please contact T&D for details of any minimum manufacturing quantities, lead times and price premiums which may apply.

Why use GRP? – Cabsys Cable tray

Excellent cable tray product strength due to pultrusion and design
GRP is lightweight in comparison to conventional products
Reduced risk of staff injuries – easy to cut, lift and fit
No sharp edges, deburring or painting required
Non-conductive material, does not need earthing
Supplied in 3 metre or 6 metre lengths with click on troughing lids. No secondary lid fixings required.
Does not conduct heat and UV resistant compound built in
CABSYS cable tray option is fire rated to the highest levels
Cheaper, quicker and easier to install
Fit and forget solution GRP cable tray as support system

➡ Related Cable Management Products | GRP Cable Ladder | GRP Cable Tray | GRP Cable Trough | Cable Hooks

MITA, Schneider Electric + Wibe Group

MITA brand is now powered by Wibe Group.

MITA have been supporting customers through their technical journey on choosing the correct product, manufactured from GRP, in cable support applications for almost five decades. MITA are now fully separated operationally from Schneider Electric. They now have a stand alone presence in the UK market with their “Made in UK” products which are fully compliant to the related cable management standards.

MITA are marker-leaders in the manufacture of GRP non-metallic troughing, GRP cable ladders, trays, ducts, cable support channels and Fibastrut as the brand continues to lead the industry towards a sustainable future for a wide range of low (LV), medium (MV) and high voltage (HV) cable installation applications.
