CSD CONTROFIL Multi-Cable Transit Sealing System

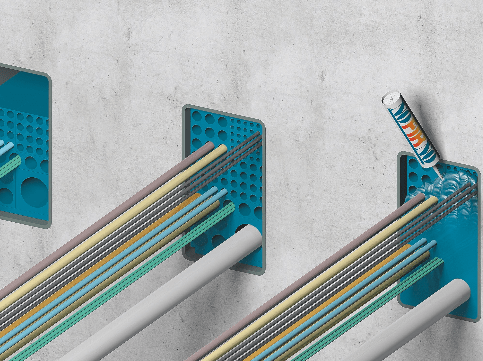

The CSD CONTROFIL System is the newest innovation in cable sealing products. The proprietary rubber blocks are designed only as passage modules for cables (not compression devices), which ensure neat cable routing as cables pass through A15 to A60 and A0 bulkheads and decks.
The superior sealing capabilities of the system are achieved by the use of the NOFIRNO Sealant, which prevents damage to cables that is often seen with compression based systems. CONTROFIL steel frames are available in combinations to allow for maximum flexibility of cable ducting. Cables can be easily added or removed during maintenance and repair operations.
CONTROFIL prevents that fire-resistant, gas, smoke and watertight multi-cable transits become cluttered through excess filling of the transit. The CONTROFIL transit blocks enable you to take complete control and no special mechanical compressive forces are needed for an effective seal. The layout of the cable transit can be determined entirely on site. CONTROFIL is also fire-resistant and gas and watertight for 4 hours.
In collaboration with CSD Sealing Systems, Thorne & Derrick offers an extensive range of products designed to deliver gas-tight, watertight, fire-resistant and rodent protection sealing for cable duct entries and pipe penetrations in industrial and hazardous area Zones in both onshore and offshore solutions.
Multi-Cable Transit Sealing System
- Fire Safety Certification: Approved for A60 and A0 boundaries, with no insulation required for A0

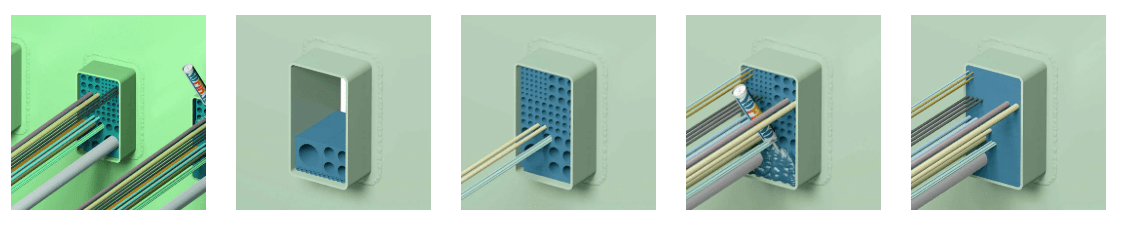

- Easy Installation: The modules provide a friction fit, allowing easy cable pulling and dressing through oversized holes
- Sealing: NOFIRNO sealant is used to complete the seal once all cables are in place, ensuring a secure and fire-resistant barrier
- Cable Management: Helps to organise cables, avoid crossing, and offers better fill capacity compared to other transit systems
- Flexibility: Allows for part-sealing and easy cable additions/removals
 CSD CONTROFIL System Typical Applications
- Train and metro carriages and other vehicles with high cable densities
- Industrial plants
- Utilities and power plants
- Construction
Sealing Solutions For Cable Ducts & Pipe Penetrations | CSD NOFIRNO Pipe Penetration System | CSD NOFIRNO RISE Ultra | CSD DYNATITE | CSD GLANDMOD | CSD CONTROFIL | CSD Fairless
CSD CONTROFIL Multi-Cable Transit Sealing System – Installation InstructionsDownload
