Earth Bars
Earth bars from Furse have a plastic channel base that is entirely corrosion proof, made from high impact uPVC unlike the traditional galvanized steel channel.
The use of a modern polymer channel has also reduced the weight of our earth bars, making them lighter and easier to handle.
View the complete range of Earthing & Lightning Protection products below – this includes bare and covered copper earth tapes to provide effective earthing protection to LV, MV & HV substations, buildings and electrical infrastructure supported by a complete range of earthing system products such as earth rods, plates and lattice or solid type copper earth mats.
Copper Conductors | Earth Rods | Earth Bars | Earth Bonds | Earth Clamps

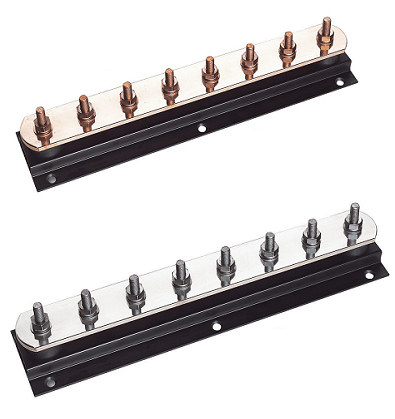

Furse Earth Bars
Features
-
Available as bare copper or tinned copper hard drawn bar
-
Pre-drilled fixing holes for ease of installation
- Swan-Neck accessory available to facilitate the main earth bar connection
- Standard height 90 mm, standard depth 77 mm
- Tightening torque 20 Nm
- Fix using countersunk wood screws 1½” No. 12 (Part no. SW110) and wall plugs (Part no. PS310)
- BS 7430 compliant
Specification
Earth Bars
Part Number | Description | Length (mm) | Weight each (kg) |
Copper Earth Bars | |||
LK245-6 | 6 way copper earth bar | 400 | 2.80 |
LK245-8 | 8 way copper earth bar | 500 | 3.20 |
LK245-10 | 10 way copper earth bar | 650 | 3.80 |
LK245-12 | 12 way copper earth bar | 750 | 4.20 |
LK245-14 | 14 way copper earth bar | 850 | 4.60 |
LK245-16 | 16 way copper earth bar | 950 | 5.00 |
LK245-18 | 18 way copper earth bar | 1050 | 5.40 |
LK245-20 | 20 way copper earth bar | 1200 | 6.00 |
LK245-22 | 22 way copper earth bar | 1300 | 6.40 |
LK245-24 | 24 way copper earth bar | 1400 | 6.80 |
LK245-26 | 26 way copper earth bar | 1500 | 7.20 |
LK245-28 | 28 way copper earth bar | 1650 | 7.90 |
LK245-30 | 30 way copper earth bar | 1750 | 8.30 |
Tinned Copper Earth Bars | |||
LK245-6-T | 6 way tinned copper earth bar | 400 | 1.80 |
LK245-8-T | 8 way tinned copper earth bar | 500 | 2.20 |
LK245-10-T | 10 way tinned copper earth bar | 650 | 2.80 |
LK245-12-T | 12 way tinned copper earth bar | 750 | 3.20 |
LK245-14-T | 14 way tinned copper earth bar | 850 | 3.60 |
LK245-16-T | 16 way tinned copper earth bar | 950 | 4.00 |
LK245-18-T | 18 way tinned copper earth bar | 1050 | 4.40 |
LK245-20-T | 20 way tinned copper earth bar | 1200 | 5.00 |
LK245-22-T | 22 way tinned copper earth bar | 1300 | 5.40 |
LK245-24-T | 24 way tinned copper earth bar | 1400 | 5.80 |
LK245-26-T | 26 way tinned copper earth bar | 1500 | 6.20 |
LK245-28-T | 28 way tinned copper earth bar | 1650 | 6.90 |
LK245-30-T | 30 way tinned copper earth bar | 1750 | 7.30 |
Furse Earth bar with single disconnecting link
Earth Bar With Single Disconnecting Link
Part Number | Description | Length (mm) | Weight each (kg) |
Copper Earth Bars with Single Disconnecting Link | |||
LK243-6 | 6 way copper earth bar | 475 | 2.30 |
LK243-8 | 8 way copper earth bar | 575 | 2.70 |
LK243-10 | 10 way copper earth bar | 725 | 3.30 |
LK243-12 | 12 way copper earth bar | 825 | 3.70 |
LK243-14 | 14 way copper earth bar | 925 | 4.10 |
LK243-16 | 16 way copper earth bar | 1025 | 4.50 |
LK243-18 | 18 way copper earth bar | 1125 | 4.90 |
LK243-20 | 20 way copper earth bar | 1275 | 5.50 |
LK243-22 | 22 way copper earth bar | 1375 | 5.90 |
LK243-24 | 24 way copper earth bar | 1475 | 6.30 |
LK243-26 | 26 way copper earth bar | 1575 | 6.70 |
LK243-28 | 28 way copper earth bar | 1725 | 7.40 |
LK243-30 | 30 way copper earth bar | 1825 | 7.80 |
Tinned Copper Earth Bars with Single Disconnecting Link | |||
LK243-6-T | 6 way tinned copper earth bar | 475 | 2.30 |
LK243-8-T | 8 way tinned copper earth bar | 575 | 2.70 |
LK243-10-T | 10 way tinned copper earth bar | 725 | 3.30 |
LK243-12-T | 12 way tinned copper earth bar | 825 | 3.70 |
LK243-14-T | 14 way tinned copper earth bar | 925 | 4.10 |
LK243-16-T | 16 way tinned copper earth bar | 1025 | 4.50 |
LK243-18-T | 18 way tinned copper earth bar | 1125 | 4.90 |
LK243-20-T | 20 way tinned copper earth bar | 1275 | 5.50 |
LK243-22-T | 22 way tinned copper earth bar | 1375 | 5.90 |
LK243-24-T | 24 way tinned copper earth bar | 1475 | 6.30 |
LK243-26-T | 26 way tinned copper earth bar | 1575 | 6.70 |
LK243-28-T | 28 way tinned copper earth bar | 1725 | 7.40 |
LK243-30-T | 1825 | 7.80 |
Furse Earth bar with twin disconnecting link
Earth Bar With Twin Disconnecting Link
Part Number | Description | Length (mm) | Weight each (kg) |
Copper Earth Bars | |||
LK207-6 | 6 way copper earth bar | 550 | 2.80 |
LK207-8 | 8 way copper earth bar | 650 | 3.20 |
LK207-10 | 10 way copper earth bar | 800 | 3.80 |
LK207-12 | 12 way copper earth bar | 900 | 4.20 |
LK207-14 | 14 way copper earth bar | 1000 | 4.60 |
LK207-16 | 16 way copper earth bar | 1100 | 5.00 |
LK207-18 | 18 way copper earth bar | 1200 | 5.40 |
LK207-20 | 20 way copper earth bar | 1350 | 6.00 |
LK207-22 | 22 way copper earth bar | 1450 | 6.40 |
LK207-24 | 24 way copper earth bar | 1550 | 6.80 |
LK207-26 | 26 way copper earth bar | 1650 | 7.20 |
LK207-28 | 28 way copper earth bar | 1800 | 7.90 |
LK207-30 | 30 way copper earth bar | 1900 | 8.30 |
Tinned Copper Earth Bars | |||
LK207-6-T | 6 way tinned copper earth bar | 550 | 1.80 |
LK207-8-T | 8 way tinned copper earth bar | 650 | 2.20 |
LK207-10-T | 10 way tinned copper earth bar | 800 | 2.80 |
LK207-12-T | 12 way tinned copper earth bar | 900 | 3.20 |
LK207-14-T | 14 way tinned copper earth bar | 1000 | 3.60 |
LK207-16-T | 16 way tinned copper earth bar | 1100 | 4.00 |
LK207-18-T | 18 way tinned copper earth bar | 1200 | 4.40 |
LK207-20-T | 20 way tinned copper earth bar | 1350 | 5.00 |
LK207-22-T | 22 way tinned copper earth bar | 1450 | 5.40 |
LK207-24-T | 24 way tinned copper earth bar | 1550 | 5.80 |
LK207-26-T | 26 way tinned copper earth bar | 1650 | 6.20 |
LK207-28-T | 28 way tinned copper earth bar | 1800 | 6.90 |
LK207-30-T | 30 way tinned copper earth bar | 1900 | 7.30 |
Furse Earth bars with stainless steel fixings
Earth Bars With Stainless Steel Fixings
Part Number | Description | Length (mm) | Weight each (kg) |
Copper Earth Bars with Stainless Steel Fixings | |||
LK245-6SS | 6 way copper earth bar | 400 | 1.80 |
LK245-8SS | 8 way copper earth bar | 500 | 2.20 |
LK245-10SS | 10 way copper earth bar | 650 | 2.80 |
LK245-12SS | 12 way copper earth bar | 750 | 3.20 |
Tinned Copper Earth Bars with Stainless Steel Fixings | |||
LK245-6TSS | 6 way tinned copper earth bar | 400 | 1.80 |
LK245-8TSS | 8 way tinned copper earth bar | 500 | 2.20 |
LK245-10TSS | 10 way tinned copper earth bar | 650 | 2.80 |
LK245-12TSS | 12 way tinned copper earth bar | 750 | 3.20 |
Copper Earth Bars with Stainless Steel Fixings & Single Disconnecting Link | |||
LK243-6SS | 6 way tinned copper earth bar | 475 | 2.30 |
LK243-8SS | 8 way tinned copper earth bar | 575 | 2.70 |
LK243-10SS | 10 way tinned copper earth bar | 725 | 3.30 |
LK243-12SS | 12 way tinned copper earth bar | 825 | 3.70 |
Tinned Copper Earth Bars with Stainless Steel Fixings & Single Disconnecting Link | |||
LK243-6TSS | 6 way tinned copper earth bar | 475 | 2.30 |
LK243-8TSS | 8 way tinned copper earth bar | 575 | 2.70 |
LK243-10TSS | 10 way tinned copper earth bar | 725 | 3.30 |
LK243-12TSS | 12 way tinned copper earth bar | 825 | 3.70 |
Copper Earth Bars with Stainless Steel Fixings & Twin Disconnecting Link | |||
LK207-6SS | 6 way tinned copper earth bar | 550 | 2.80 |
LK207-8SS | 8 way tinned copper earth bar | 650 | 3.20 |
LK207-10SS | 10 way tinned copper earth bar | 800 | 3.80 |
LK207-12SS | 12 way tinned copper earth bar | 900 | 4.20 |
Tinned Copper Earth Bars with Stainless Steel Fixings & Twin Disconnecting Link | |||
LK207-6TSS | 6 way tinned copper earth bar | 550 | 2.80 |
LK207-8TSS | 8 way tinned copper earth bar | 650 | 3.20 |
LK207-10TSS | 10 way tinned copper earth bar | 800 | 3.80 |
LK207-12TSS | 12 way tinned copper earth bar | 900 | 4.20 |
