Thorne & Derrick distribute the full range of copper lattice Earth Mats that offer a more economical cost option to installing solid earth copper plates – when used with Bentonite or Marconite the earth mats provide a lasting earthing solution. The Copper Earth Mats are often used for potential grading and are a preferred option on installations such as telecommunications towers where touch and step potential could cause problems.
Earth mats manufactured from high conductivity copper tape also reduce the danger of exposure to high step and touch voltages to substation and authorised personnel working on high voltage switching providing reliable earthing in high fault current and step potential avoidance applications, such as high voltage substations and switchrooms.
Copper earth mats are manufactured to BS EN 12163 (formerly BS 2874) – solid copper earth plates are also available.
Pictured | Solid Copper Lattice Type Earth Mat – this copper lattice earth mat has 6 linear metres of 25x3mm bare copper conductor, the reduced size is compact for civil engineering works during street excavations and underground earthing system installations.. The earth mat features a central hole to enable the installer to place this copper lattice earth mat over an already installed earth rod. This earth mat also comes with a 900mm copper tail to enable connection to the earthing system. Order Code EML303/900.
Earth Mats
➡ Also: Earth Rods | Earth Bars | Earth Tapes
LV MV HV Power Earthing Systems
Copper Earth Mats
Earth Mats – Copper Lattice Type
Selection Table
The following table details the standard range of earth mats available in lattice design and manufactured from high conductivity copper:
| AN Wallis Part Number | Earth Mat Dimensions | Copper Surface Area | Grid | Unit Weight | Pack Quantity |
| EML 603 | Lattice Mat 600mm x 600mm x 3mm | 0.31sqmm | 5 Bar | 4kg | 1 |
| EML 903 | Lattice Mat 900mm x 900mm x 3mm | 0.55sqmm | 6 Bar | 7.2kg | 1 |
| EML 903 SPC | 0.46sqmm | 5 Bar | 6.1kg | 1 |

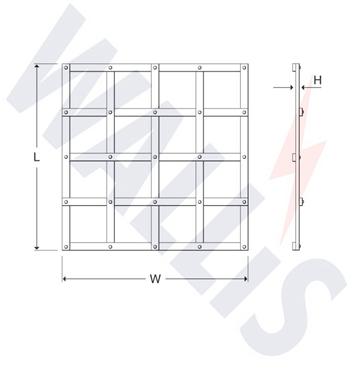

Earth Mats Dimensions
6.6kV 11kV 33kV Switchgear Copper Earthing Mats
Earth mats are configured into the design of earthing systems incorporating pole-mounted equipment distributing medium/high voltage power at 33kV, 11kV and 6.6kV – preformed copper earth lattice mats are required to be installed at ground level switchgear locations directly below the operator when working on the MV HV switchgear. The earth mats are usually constructed of copper tape in lattice design or using bare copper conductor and connected to the switch handle or control unit depending on the anticipated fault current.
In pole-mounted equipment earthing designs the following items should be effectively bonded or earthed:
- Transformers
- Switchgear (with control units)
- Switchgear (with operating handles at low level
- Cable Terminations
- Surge Arresters
Where any item of electrical equipment on the pole is connected to earth all steelwork on the pole above 3.0m, including cross arms, pilot insulator pins, trussing gear and high voltage cable boxes should be connected to the main earth. Steelwork below 3.0m, such as low level 33kV cable support steelwork, shall have a separate earth electrode installed and shall not be bonded to the main earth.
According to UKPN Earthing Design Standard EDS 06-0015 the following earth electrodes and earth rods are recommended as minimum levels for effective below ground protection:
- Earth Electrode up to 4kA – 35sqmm bare stranded copper cable
- Earth Electrode up to 8kA – 70sqmm bare stranded copper cable
- Earth Rod All Fault Levels – 1M or 1.2m copperbond earth rod
Image: UKPN Copper Earth Mats
