Pfisterer offer a wide range of insulating poles suitable for high voltage detectors with different HV applications including rail power systems.

Insulating poles are hand-held devices for the operations and testing of live components with nominal voltages of 11kV, 33kV, 66kV and up to 132kV.

The insulating poles are compatible for us with all KP-Test 5 Series allowing all voltage detectors to be optimised for particular applications on the system.

The insulated poles are used by personnel carrying out live operations such as HV high voltage drop-out fuse replacement, live-line tapping at earthed locations or ABSD switching on earth poles.

Insulating Poles for Voltage Detectors, Type IP

One-piece insulating pole with end cap, hand guard and hexagon connection for KP-Test 5 Series voltage detectors.

Pfisterer Part Number Total Length LG (mm) Insulating Length Li IP (mm) Length of Handle LH (mm) Diameter of Insulating Element d (mm)
973 500 001 572 135 24
973 501 001 725 285 24
624 760 001 1485 830 605 33

Insulating Poles for Voltage Detectors, Type IP - Dimensions

Insulating Pole Base Parts for Voltage Detectors, Type BP

Insulating pole base part with end cap, hand guard and plug-in connection for insulating pole upper or intermediate parts, for multi-piece insulating poles.

Pfisterer Part Number Total Length LG (mm) Insulating Length Li BP (mm) Length of Handle LH (mm) Diameter of Insulating Element d (mm)
624 333 502 1225 225 1000 43
624 333 504 1500 500 1000 43
624 334 501 1855 855 1000 43
624 334 502 2010 1010 1000 43

Insulating Pole Base Parts for Voltage Detectors, Type BP - Dimensions

Insulating Pole Upper Parts for Voltage Detectors, Type UP

Insulating pole upper part for multi-piece insulating poles. With hexagon connection for KP-Test 5 Series voltage detectors.

Pfisterer Part Number Total Length LG (mm) Insulating Length Li UP (mm) Diameter of Insulating Element d (mm)
624 780 002 977 802 33
624 780 001 2050 1875 33



Insulating Pole Upper Parts for Voltage Detectors, Type UP - Dimensions

Insulating Pole Intermediate Parts for Voltage Detectors, Type EP

Insulating pole intermediate part for multi-piece insulating poles. Plugs in between insulating pole upper part and base part.

Pfisterer Part Number Total Length LG (mm) Insulating Length Li EP (mm) Diameter of Insulating Element d (mm)
624 336 501 1100 95 43
624 336 002 3130 3005 43

Insulating Pole Intermediate Parts for Voltage Detectors, Type EP - Dimensions

Insulating Pole Extensions for Voltage Detectors

This insulating pole extension makes it simple to extend the Pfisterer insulating poles of voltage detectors. The insulating pole extension is screwed onto the existing insulating pole. This does not reduce the minimum insulation length.

These insulation pole extensions can be used for:

  • KP-Test 5
  • KP-Test 5 dual
  • KP-Test 5L
  • KP-Test 5L dual
Pfisterer Part Number Total Length LG (mm) Diameter of Insulating Element d (mm)
620 518 002 560 24
620 518 001 1060 24

Insulating Poles for Voltage Detectors KP-Test 5 and 5H

Minimum length of insulating elements Li by standard EN 61243-1.

Ur
Li
(kV)
Li
(mm)
1 < Ur ≤ 36 520
36 < Ur ≤ 72,5 830
72,5 < Ur ≤ 123 1300
123 < Ur ≤ 170 1700
170 < Ur ≤ 245 2300
245 < Ur ≤ 420 3600

U= rating voltage

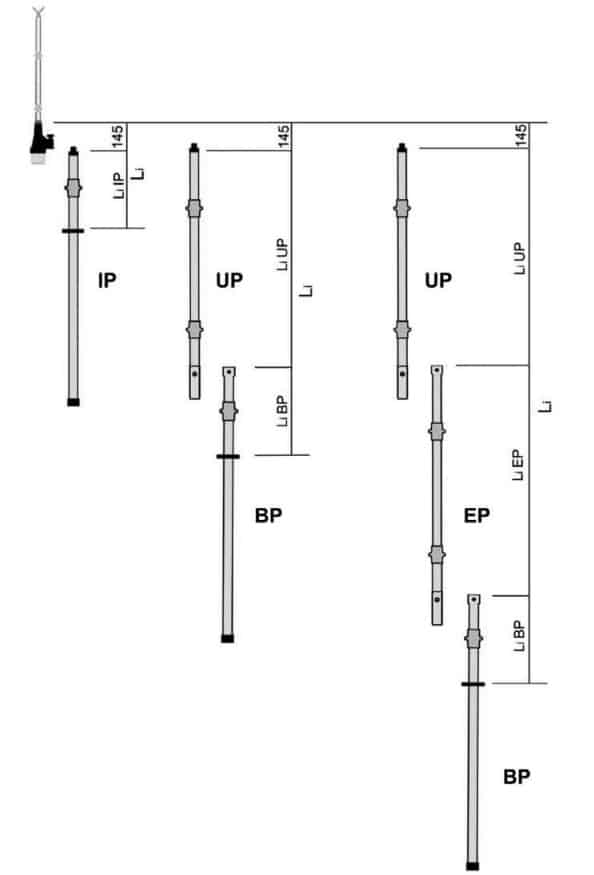

Insulating Poles for Voltage Detectors KP-Test 5 and 5H

Insulating Poles for Railway Voltage Detectors

These insulating poles are applicable to all KP-Test 5R voltage detectors series. Optimal way for laying out voltage detectors for respective applications.

Insulating Pole Base Parts for Three-part Voltage Detectors, Type RP1

Insulating pole base part with end cap, hand guard and plug-in connection for insulating pole upper parts UP.

Pfisterer Part Number Total Length LG (mm) Insulating Length Li RP1 (mm) Length of Handle LH (mm) Diameter of Insulating Element d (mm)
620 780 002 1950 480 1465 33
620 780 001 2450 480 1965 33

Insulating Pole Base Parts for Three-part Voltage Detectors, Type RP1 - Dimensions

Insulating Pole Base Parts for Five-part Voltage Detectors, Type RP2

Insulating pole base part with end cap, hand guard and plug-in connection for insulating pole intermediate parts RP3.

Pfisterer Part Number Total Length LG (mm) Length of Handle LRP2 (mm) Diameter of Insulating Element d (mm)
623 930 001 1080 955 43

Insulating Pole Base Parts for Five-part Voltage Detectors, Type RP2 - Dimensions

Insulating Pole Intermediate Parts for Five-part Voltage Detectors, Type RP3

Insulating intermediate part with plug-in connection for insulating pole intermediate parts RP4.

Pfisterer Part Number Total Length LG (mm) Length of Handle LRP3 (mm) Diameter of Insulating Element d (mm)
623 929 001 1080 955 43

Insulating Pole Intermediate Parts for Five-part Voltage Detectors, Type RP3

Insulating Pole Intermediate Parts for Five-part Voltage Detectors, Type RP4

Insulating base part with plug-in connection for insulating pole upper parts UP.

Pfisterer Part Number Total Length LG (mm) Insulating Length Li RP4 (mm) Length of Handle LRP4 (mm) Diameter of Insulating Element d (mm)
623 929 100 1010 5 945 43

Insulating Pole Intermediate Parts for Five-part Voltage Detectors, Type RP4 - Dimensions

Insulating Poles for Voltage Detectors KP-Test 5R DC and KP-Test 5R DC dual

Minimum length of insulating elements Li

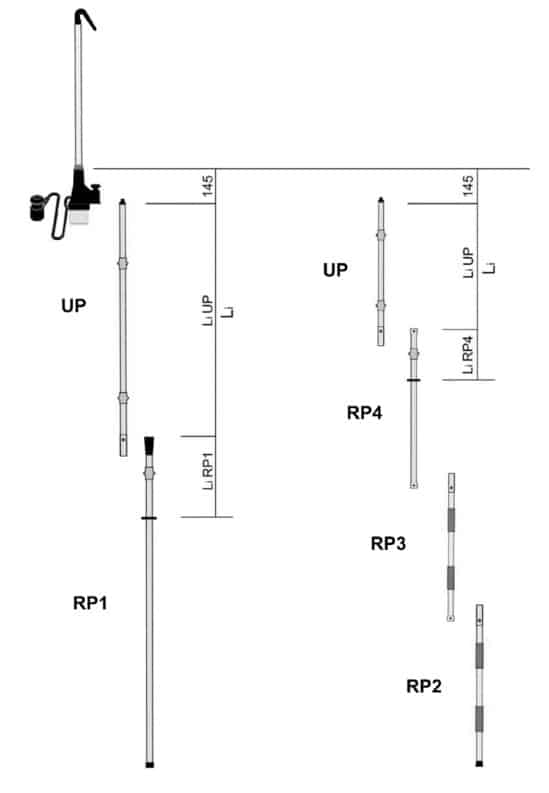

Insulating Poles for Voltage Detectors KP-Test 5R DC and KP-Test 5R DC dual - Dimensions

In-service Tests for Voltage Detectors

Depending on national regulations in the country concerned, in-service tests are required for voltage detectors with nominal voltages above 1 kV. Pfisterer have been successfully carrying out these in-service tests on their own test equipment for many years. The voltage detectors are tested according to the specifications and immediately adjusted if necessary.

Pfisterer Part Number Description
200 000 001 KP-Test II
200 000 002 KP-Test III
200 000 003 KP-GLI
200 000 004 KP-Test II Railway
200 000 005 KP-Test II USE
200 000 006 Testing set
200 000 014 SONIC signal application
200 000 200 KP-Test 5
