Insulating Poles

Pfisterer insulating poles are hand-held insulated poles for operating and testing live components distributing medium/high voltage electrical power via switchgear or overhead line. They consist of insulating part, hand protecting shield, handle and receiving head for eg the manipulation of insulating guard plates.

bring the connecting parts of the test equipment to parts of high-voltage systems for the purpose of testing, switching, earth or short-circuiting
protection of the operator from electrical hazards

Large-size, extendable and durable insulated poles for reaching up to higher electrical applications safely and without needing to use ladders. The range consists of insulating, switching, single earthing, two piece earthing and earthing poles for rail power systems.

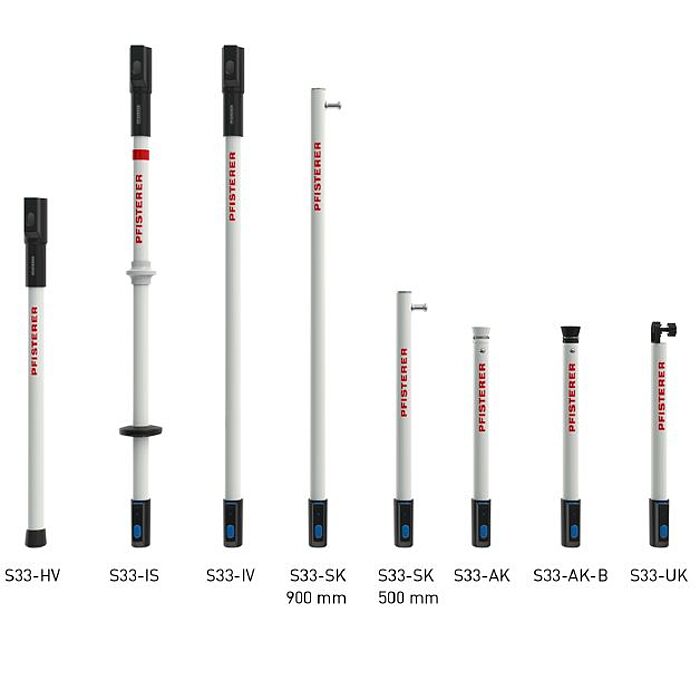

Pfisterer offers various types of insulating poles for different applications:

Insulating Poles MV HV EHV Up To 110kV
Insulating Poles Telescopic MV HV EHV Up to 110kV
Switching Poles – Medium & High Voltage MV HV EHV Poles
Single Pole Earthing Poles With & Without Line Clamps
Single Pole Telescopic Earthing Poles With & Without Line Clamps
Two Piece Earthing Poles With Line Fixed Point
Earthing Poles For Rail Power Systems

Insulating poles are available to suit high voltage substation, transmission line and distribution line applications.

Insulating Poles

Insulating Poles | Thorne & Derrick distribute the complete range of Insulating Poles manufactured by Pfisterer for substation (switchgear) and overhead line (OHL) applications with MV Medium Voltage & HV High Voltage Power Systems – typically used to manoeuvre portable earthing kits and voltage detectors to ensure site electrical safety.
