PENTA LINK BOX TEMPORARY EARTHING KITS

Discover the range of PENTA Link Box Earthing Kits, available in three variants to suit working scenarios. The Earthing Kits for use with Link Boxes are suitable for direct grounding and earthing connections, typically used whilst maintenance, electrical diversion or cable testing is undertaken and are developed with National Grid in accordance with the NSI-5 standards.

♦ NSI-5 National Grid Approved

NSI-5 is a National Safety Instruction from National Grid UK Electricity Transmission that provides guidance on working safely on and around LV MV HV underground cable systems and overhead lines – this electrical safety covers how to apply safety rules to protect people working on or near cable systems and their accessories for voltage classes: 11kV, 33kV, 66kV and 132kV.

NSI-5 covers the following:

  • Working under impressed voltage conditionsHow to work safely when there is impressed voltage, such as when applying test voltages to cables.
  • Cable systems: How to work safely with cable systems, including optical fibre cables.
  • Safety documents: How to use safety documents to ensure work is done safely and effectively.
  • Competent people: How to identify and work with competent people who are responsible for safety.

Who Are National Grid?

In the UK, National Grid own and develop the high-voltage electricity transmission network in England and Wales, taking electricity from where it’s generated to where it’s needed. National Grid Electricity Distribution delivers electricity to over 20 million people across homes and businesses in the Midlands, South West England, and South Wales.


PENTA Link Box Earthing Kits Benefits

  • Product is easy to use/apply by the Electrical Engineer
  • The kits are supplied in protective carrying bag for convenience
  • All Earthing Kits are fully tested & Type Registered (TR) with National Grid
  • High insulation rating for electrical safety
  • Robust construction of Earthing Kits
  • Special cable clamp design for use with electrical distribution link boxes

Thorne & Derrick are Approved Suppliers for PENTA – we can provide excellent customer support, product selection and competitive prices with next-day delivery from stocks of electrical LV, MV & HV Link Box Earthing Kits.


PENTA CE80 LINK BOX EARTHING KITS

CE80 Link Box Earthing Kit | PENTA

CE80 Model Earthing Kit | PENTA

Short Term Temporary Earth Kit (Bronze/Copper Temporary Kit)

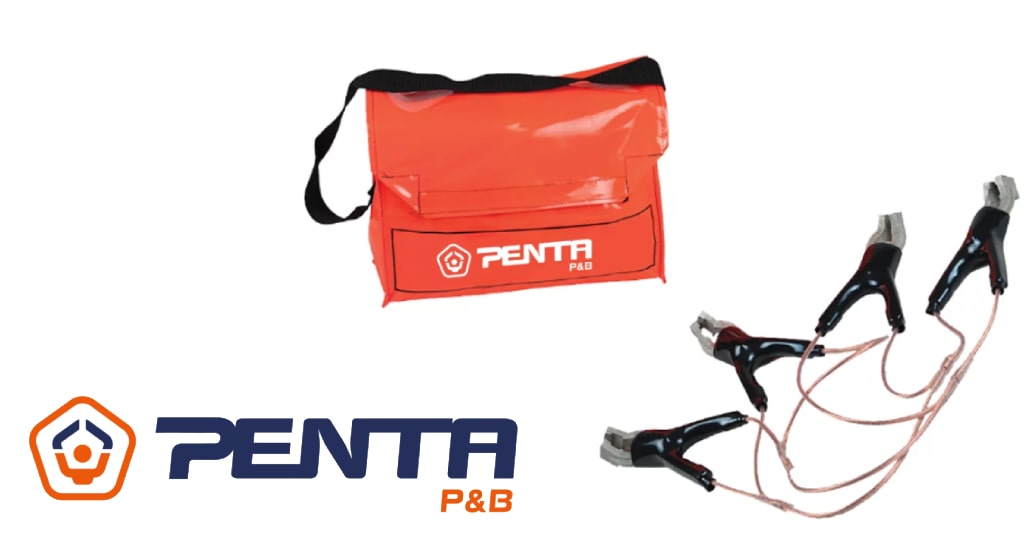

Comprising of 4 CE80 Spring loaded insulated Bronze clamps, connected by flexible copper standard cables. The CE80 model designed by Penta, is to be used for Link Box earthing whilst the main/permanent earthing kit is applied.

CE80 Link Box Technical Specifications

This table provides additional coverage on the PENTA CE80 Model technical specifications to aid product selection:

PENTA CE80 Product Specifications
Current Rating 150A/5mins
Short Circuit Rating 4.9kA/1s
Insulating Rating Typically 2kV/1min
Conductor Size 1-1/2″ x ½” nominal
Part Reference Number PENTA EFU-19311

PENTA CE78/A LINK BOX EARTHING KITS

CE78A Link Box Earthing Kit | PENTA

CE78A Model Earthing Kit | PENTA

Temporary Earth Kit (Aluminium Kit/M12 Fitting)

This CE78/A designed by PENTA, is used upon underground Earth Link Boxes within electrical installation (modern metric-type). The CE78/A model is denoted by black handles and M12 threaded aluminium cable clamps. The CE78/A is supplied with an aluminium temporary junction plate in a yellow fabric reinforced PVC carrying bag for safe and convenient handling.

CE78/A Link Box Technical Specifications

This table provides additional coverage on the PENTA CE78/A Model technical specifications to aid product selection:

PENTA CE78/A Product Specifications
Continuous Current Rating 150A
Short Circuit Rating 7.9kA/1sec
Insulation Rating Typically 2kV/1min
Part Reference Number PENTA EFU-19309

PENTA CE78/C LINK BOX EARTHING KITS
CE78C Link Box Earthing Kit | PENTA

CE78C Model Earthing Kit | PENTA

Temporary Earth Kit (Copper Kit/BSW Fitting)

The CE78/C model is designed for use on the traditional underground “Diving Bell Style” imperial link boxes. This particular PENTA Earth Kit is denoted by red handles and BSW threaded copper cable clamps and supplied with a temporary copper junction plate, in a fluorescent orange reinforced PVC carry bag for safe and convenient carrying.

CE78/C Link Box Technical Specifications

This table provides additional coverage on the PENTA CE78/C Model technical specifications to aid product selection:

PENTA CE78/C Product Specifications
Continuous Current Rating 150A
Short Circuit Rating 8.0kA/1sec
Insulation Rating Typically 2kV/1min
Part Reference Number EFU-19310

EMELEC MV HV LINK BOXES

EMELEC‘s extensive range of electrical MV HV Link Boxes, designed for bonding/grounding connections made through removable links. Operating in voltages of up to 6kV, 10kV, 15kV & 18kV but may also contain arrestors functioning as Sheath Voltage Limiters (SVLs). The MV HV Link Boxes are ideally paired and installed with cold/heat shrink MV HV Cable Joints & Terminations on medium or high voltage power systems.

Click the ‘VIEW LINK BOXES RANGE’ button to browse Thorne & Derrick‘s wide range of stocks for EMELEC electrical MV HV Link Boxes. We provide competitive prices, exceptional customer support and product knowledge, all with next-day delivery.

EMELEC | Link Boxes Range

Link Boxes Configurations

Link Boxes are used with cable joints and terminations to provide easy access to shield breaks for test purposes and to limit voltage build-up on the sheath; suitable for 600/1000V (LV), 11kV 33kV (MV) & 66kV 132kV (HV).


High Voltage Cable Systems & Accessories

Thorne & Derrick distribute the most extensive range of MV HV Medium & High Voltage Cable Joints, Terminations & Connectors from manufacturers including 3M, Prysmian, Nexans Euromold, Elastimold, Pfisterer CONNEX & SEANEX and Shrink Polymer Systems.

Heat shrink, cold shrink, push-on and slip-over cable accessories enable the jointing, terminating and connection of 11kV-33kV and 66kV-132kV cables to oil, air or gas insulated switchgear, transformers, motors and overhead lines distributing electricity at medium/high voltages.

MV HV Medium & High Voltage Cable Joints, Terminations & Connectors
