Lucy Zodion Slimline Steel Feeder Pillars

Lucy Zodion Slimline Steel Feeder Pillars

Feeder Pillars LV Electrical Power Distribution

Lucy Zodion Slimline feeder pillars are manufactured from galvanised steel (with optional painted versions) for LV power distribution and control – these compact design pillars from the Fortress range are designed in a modular format with the feeder pillar cabinet width increasing in increments of 100mm or 150mm.

Slimline pillars are available in 6 sizes: the includes 250mm – 800mm widths with 3mm feeder pillar shell thickness, single door and stainless steel option.

FEEDER PILLARS

Features & Benefits

  • Long life solid stainless steel hinge blocks on all versions
  • Vandal resistant fully flush hinges
  • Two tri-head locks fitted as standard
  • Backboard made from 18mm treated exterior grade plywood
  • ‘Danger’ warning label fitted in door recess
  • Detachable root section finished in bitumen enriched paint
  • Earth lead between pillar body and door
  • High quality UV resistant paint to an average thickness of 60 microns
  • Door seal to IP65
  • Ground level marked

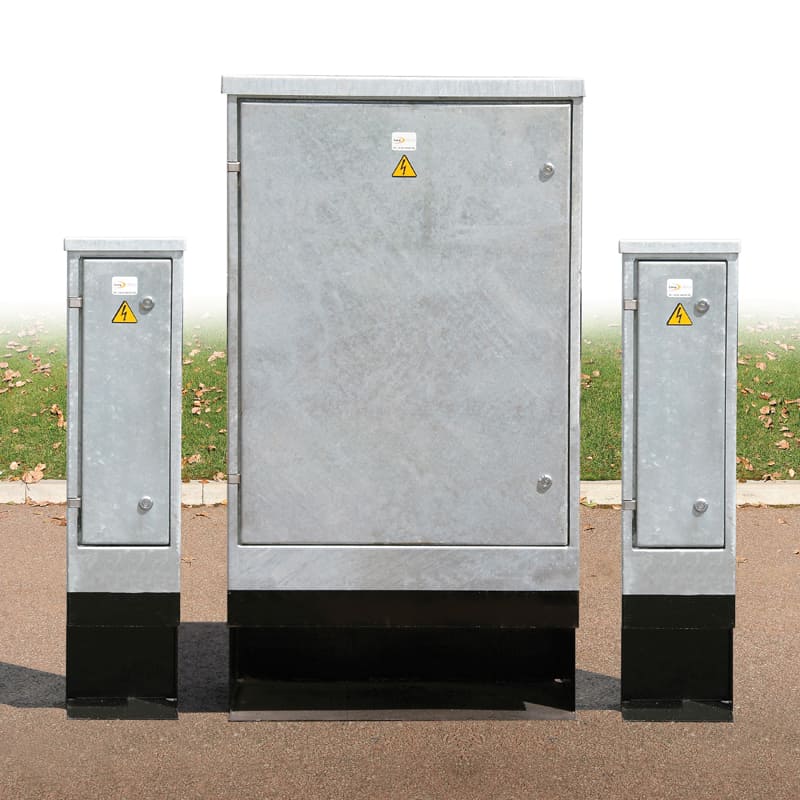

Lucy Zodion Slimline Steel Feeder Pillars

Lucy Zodion Slimline Steel Feeder Pillars – Dimensions

The ranges of Slimline feeder pillars from the Fortress range manufactured by Lucy Zodion are shown in the selection table below:

Lucy Zodion Slimline Feeder Pillar Size Code SL01 SL02 SL03 SL04 SL05 SL06
Height (H) Above Ground 800mm 950mm 1093mm 1100mm 1150mm 1150mm
Root Section (R) 300mm 300mm 300mm 300mm 300mm 300mm
Width (W) 250mm 350mm 450mm 550mm 650mm 800mm
Depth (D) 160mm 235mm 260mm 275mm 300mm 325mm
Door Opening Height (DH) 590mm 740mm 740mm 840mm 940mm 940mm
Door Opening Width (DW) 149mm 249mm 349mm 449mm 549mm 699mm
Working Depth (WD) 106mm 181mm 206mm 221mm 246mm 271mm
Backboard Size (WxH) 240 x 765mm 340 x 915mm 440 x 915mm 540 x 1015mm 640 x 1115mm 790 x 1115mm
Weight (kg) (3mm thickness) 21kg 29kg 39kg 38kg 77kg 84kg
Feeder Pillar Stock Code (3mm Galv) THM0011393 THM0011394 THM0011396 THM0011398 THM0011400 THM0011402

Ordering Feeder Pillars

The ordering code for Lucy Zodion Slimline feeder pillars from the Fortress range is comprised of 4 sections.

Section 1 – Feeder Pillar Size

  • SL01 – H = 800, W = 250, D = 160
  • SL02 – H = 950, W = 350, D = 235
  • SL03 – H = 1093, W = 450, D = 260
  • SL04 – H = 1100, W = 550, D = 275
  • SL05 – H = 1150, W = 650, D = 300
  • SL06 – H = 1150, W = 800, D = 325

Section 2 – Material Type

  • HDG – Hot Dip Galvanised Steel
  • HDP – Hot Dip Galvanised Steel (Painted Grey Standard | Other Paint Colours On Request)
  • 304 – Stainless Steel Grade 304 Type
  • 30P – Stainless Steel Grade 304 Type Painted Finish
  • 30L – Stainless Steel Grade 304 Type Grit Finish
  • 3CP – 3CR12 Painted Finish
  • 316 – Stainless Steel Grade 316 Type
  • 31P – Stainless Steel Grade 316 Type Painted Finish
  • 31S – Stainless Steel Grade 316 Type Polished Finish
  • 31L – Stainless Steel Grade 316 Type Grit Finish

Section 3 – Nominal Material Thickness

  • 3 – 3mm

Section 4 – Feeder Pillar Options

  • D – Yale Lock
  • E – Hasp & Staple
  • G – Heater Kit
  • H – 13 Amp Socket Kit
  • I – Lighting Kit
  • J – Document Pocket Inside Feeder Pillar Door
  • SS – Stainless Steel

Eg Lucy Zodion SL01 HDG 3 D G I

This is a Fortress range Slimline feeder pillar manufactured by Lucy Zodion – the material is hot dip galvanised steel, 3mm thickness, with yale lock, heater kit and lighting kit.
