Lucy Fortress Feeder Pillars – THM0011398

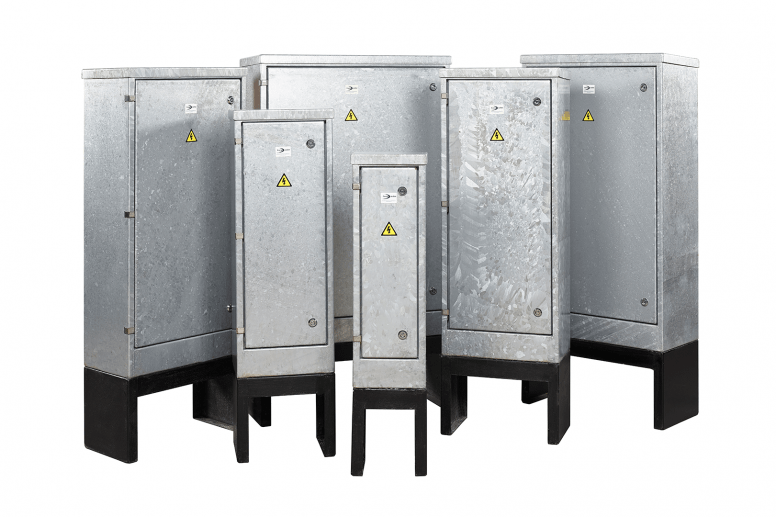

Lucy Zodion Slimline Steel Feeder Pillars

Lucy Zodion THM0011398

Lucy Zodion Slimline feeder pillars are manufactured from galvanised steel (with optional painted versions) for LV power distribution and control applications. The feeder pillars from the Lucy Fortress range are available in a range of sizes.

Lucy Zodion THM0011398
  • Feeder Pillar Stock Code (3mm Galv) – Lucy Zodion Fortress Feeder Pillars THM0011398
  • Lucy Zodion Slimline Feeder Pillar Size Code – SL04
  • Height (H) Above Ground – 1100mm
  • Root Section (R) – 300mm
  • Width (W) – 550mm
  • Depth (D) – 275mm
  • Door Opening Height (DH) – 840mm
  • Door Opening Width (DW) – 449mm
  • Working Depth (WD) – 221mm
  • Backboard Size (WxH) – 640 x 765mm
  • Weight (kg) (3mm thickness) – 38kg
  • See complete range of Feeder Pillars

Low Voltage Cable Installation Equipment

T&D distribute a comprehensive range of LV Underground Cable Installation Equipment to enable the connection of 600/1000V power supply to the feeder pillar – this includes cable joints in resin cast, heat shrink and Cold Shrink along with cable ducts and duct sealing systems to protect against water ingress, flammable migration and fire spread.

Full range of cable rollers, cable socks and cable pulling equipment to install LV power cable systems into cable trench or duct.
