11kV Cable Lugs | Cembre ECW-H3D Presshead Die Sets

Cembre ECW-H3D Head

11kV Cable Lugs – Tools & Die Set Selection

Cembre ECW-H3D Tools

Die Sets

Selection Table

11kV Cable Lugs

The following table enables the selection of the correct Die Set to use with Cembre ECW-H3D presshead tools when installing 11kV cable lugs used with MV HV Cable Terminations for medium / high voltage applications from the Cembre range.

Cembre die sets and 11kV cable lugs are specified to terminate or connect stranded copper conductors up to 630sqmm when using model ECW-H3D from the hydraulic crimping tool range manufactured by Cembre – the Cembre 2A range of cable lugs rated up to

Please refer to the Cembre presshead range of hydraulic crimping tools – for crimping 11kV cables up to 400sqmm the Cembre HT131-C hydraulic crimping tool is recommended.

11kV Lugs

Copper Conductor Sqmm Terminal Lug Hexagonal
Low Str Flex Die Set No of Crimps
4-6 Adaptor AU230-130D
with Die Set MMT..-C
Refer to HT131-C
Die Selection Guide
10
16 2A3-M
25 2A5-M
35 25
35
2A7-M
50 50 2A10-M
70 70 2A14-M
95 95 2A19-M
120 120 2A24-M
150 150 2A30-M
185 185 2A37-M
240 240 2A48-M
300 240
300
2A60-M
400 300 2A80-M ME80-3D 3
500 400 2A100-M ME100-3D 3
630 500 2A120-M ME120-3D 4



➡ For further information about High Voltage Connectors for use on MV-HV power cables including 11kV/33kV networks please see HV cable lugs and connectors.

Cembre

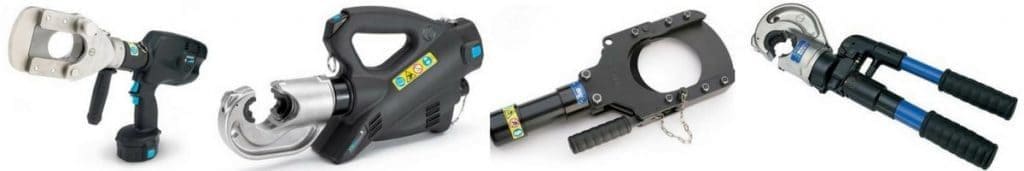

See the complete range of Cable Crimping & Cable Cutting Tools
