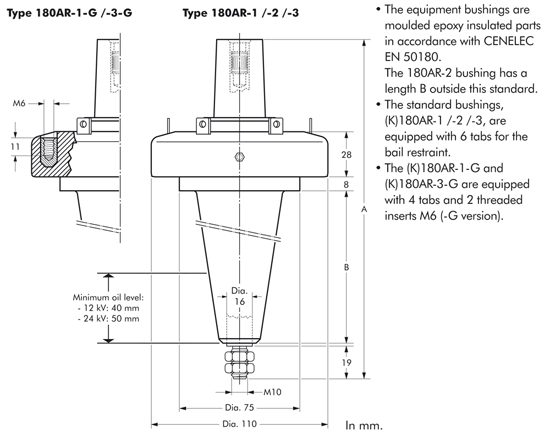

180AR-1/2/3 Nexans Euromold – Interface A – Equipment Bushing
- Interface A Connector
- Up to 24kV 250A
- Euromold Equipment Bushing
International Standards – CENELEC EN 50180; CENELEC HD 629.1; IEC 60137
Equipment bushing for use in equipment insulated with oil fluid, typically for transformers, switchgear, capacitors. Each separable connector is tested for AC withstand and partial discharge prior to leaving the factory.
For complete technical and specification on this Interface A product please see Nexans Euromold 180AR-1/2/3
- Connector shape – Bushing
- Connector type – N/A
- Technology – N/A
- Conductor Material -Bare Copper
- Conductor Cross Section Range – 16sqmm-95sqmm
- Maximum Partial Discharge At 2Uo – 10pc
- Dielectric Withstand Voltage 50Hz 1mn 55kV
- Rated Voltage Uo/U (Um) – 12 / 20 (24kV)
- Interface A – 250A
