Euromold 180AR Bushings 11kV 24kV (Oil Filled & Dry Type)

View Sub Products

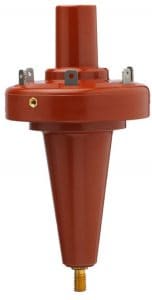

Euromold 180AR

11kV Bushings

11kV bushings are available for oil, air and gas insulated electrical equipment to suit all Interface Bushing types for medium/high voltage applications.

Euromold 180AR are epoxy bushings for use in MV-HV switchgear, capacitors and transformers insulated with oil and used to connect medium/high voltage cables onto Interface A electrical equipment using Euromold connectors in the following voltage classes:

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)

Euromold 180AR plug-in type epoxy bushings can be supplied with Euromold 158LR elbow connectors and with medium voltage surge arresters (156SA).

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Interface A
  • Maximum Operating Current – 250A (Amps)
  • Voltage Classes – 11kV 12kV 24kV Maximum
  • MV HV Bushings Suit – Polymeric XLPE EPR Cables 11kV 24kV
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 180AR-1-2-3 Specification & Selection table

Euromold equipment
bushing
type
Voltage
Um
(kV)
Current Ir (A) Dimensions (mm)
A B
180AR-1 12 250 222 106
K180AR-1 24 250 222 106
180AR-2 12 250 284 168
K180AR-2 24 250 284 168
180AR-3 12 250 171 55
K180AR-3 24 250 171 55

To order the equipment bushing, specify the type. The bushings are supplied with an earth jumper (/J) or an earth plate (/GS). This earth connection must be specified when ordering. E.g. K180AR-1/J.

Euromold 180AR Equipment Bushings 11kV 24kV - Design

Euromold 180AR Equipment Bushings 11kV 24kV – Design

  • The equipment bushings are moulded epoxy insulated parts in accordance with CENELEC EN 50180 – The 180AR-2 bushing has a length B outside this standard.
  • The standard bushings, (K)180AR-1 /-2 /-3, are equipped with 6 tabs for the bail restraint
  • The (K)180AR-1-G and (K)180AR-3-G are equipped with 4 tabs and 2 threaded inserts M6 (-G version).
CONSTRUCTION CHARACTERISTICS
Connector shape Bushing
Connector type
Conductor material Bare copper
Technology
DIMENSIONAL CHARACTERISTICS
Conductor cross-section, range 16 .. 95sqmm
ELECTRICAL CHARACTERISTICS
Maximal partial discharge at 2Uo 10pC
Dielectric withstand voltage, 50Hz 1mn 55kV
Impulse voltage 125kV
Rated Voltage Uo/U (Um) 12 / 20 (24) kV
USAGE CHARACTERISTICS
Interface A (250 A)

Euromold 158LR Fixings For Bushings

Bushing Interface A

Bushing Interface A

Euromold 180AR - Fixings For Equipment Bushings

Euromold 180AR – Fixings For Equipment Bushings
