A275S Brass Cable Gland Kit – Prysmian Bicon KM409-62

A2 Brass Cable Gland Kits – Prysmian Bicon KM409 Glands (Unarmoured Cable Terminations)

A275S Brass Cable Gland Kits

A275S

Prysmian Bicon KM409-62 (A275S) A2 brass cable glands with 75mm entry thread enable cable termination of plastic or rubber sheathed unarmoured cables in indoor or outdoor applications  – the A275S cable glands are weatherproof and waterproof and suitable for 54.5-61.0mm cable diameters.

A275S cable gland kits are suitable for use with all unarmoured cables complying with BS EN 50262 & BS 6121-1: 1989. The A275S glands are rated to IP66 with use of suitable sealing washer and thread sealant at gland interface.

Metric & NPT Nickel Plated versions available.

Prysmian Bicon A275S

Brass Cable Gland Kit

Technical Specification

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Material: Brass
  • Cable Gland Size: A275S
  • Quantity Per Kit: 1 Gland
  • Cable Diameter (B): 54.5-61.0mm
  • Entry Thread (D) : M75 x 1.5
  • Thread Length (E) : 15mm
  • Protrusion Length (F): 32mm
  • Hexagon A/F (G): 80mm
  • Hexagon A/C (H): 87.4mm
  • Order Code:  KM409-62 (A275S)
  • NPT Version: Prysmian Bicon 409NP-44V
  • Cable Gland Size: 3″ – 75S
  • Quantity Per Kit: 1 Gland
  • Cable Diameter (B): 54.5-61.0mm
  • Entry Thread (D) : 3″ NPT
  • Thread Length (E) : 33.5mm
  • Protrusion Length (F): 32mm
  • Hexagon A/F (G): 98.8mm
  • Hexagon A/C (H): 109.2mm

A2 Cable Gland Kit Contents: A1/A2 Gland, Brass Locknut and PVC Shroud. A2 glands packs also available for low smoke zero halogen and ATEX hazardous area applications. For 11kV-33kV cable terminations see MV-HV cable glands.

Also available from Prysmian ➡ BW Brass Cable Glands CW Aluminium Cable Glands A2 Brass Cable Glands

Gland kit order code: pRYSMIAN A275S KM409-63 (Standard) KM409-63V (Nickel Plated) 409NP-44V (NPT Version)
A2 Brass Cable Gland Kits – Prysmian Bicon KM409 Glands (Unarmoured Cable Terminations) 1

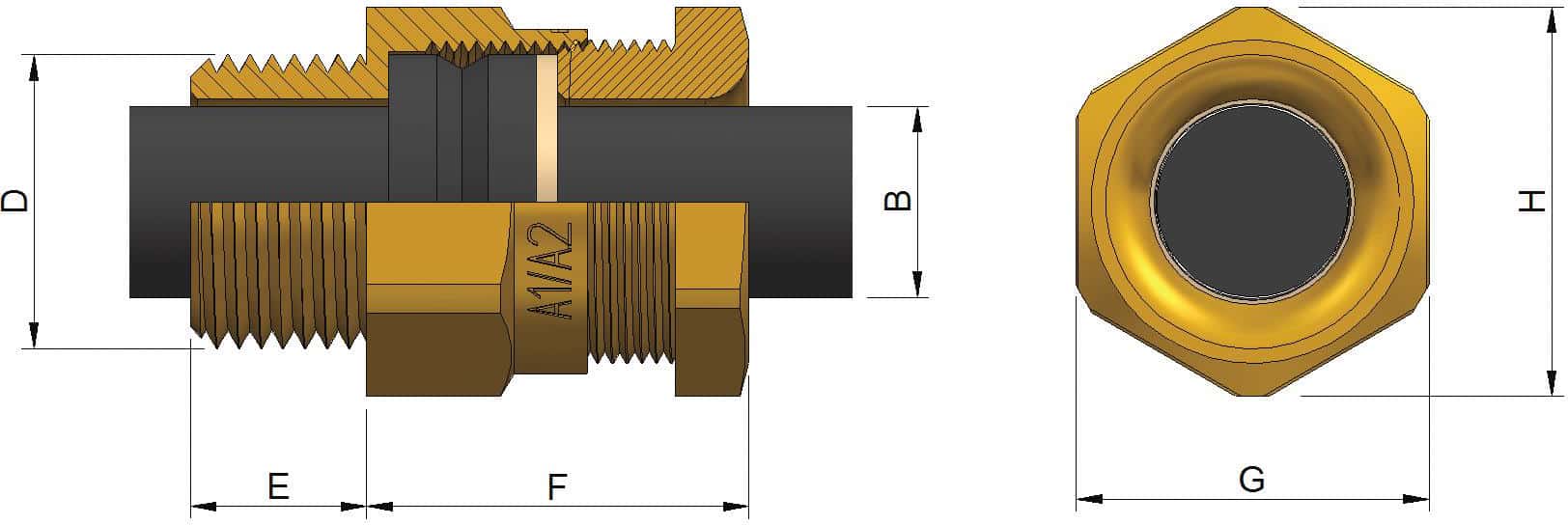

Prysmian Bicon A275S Brass Cable Gland Kits – Dimensions Illustration
