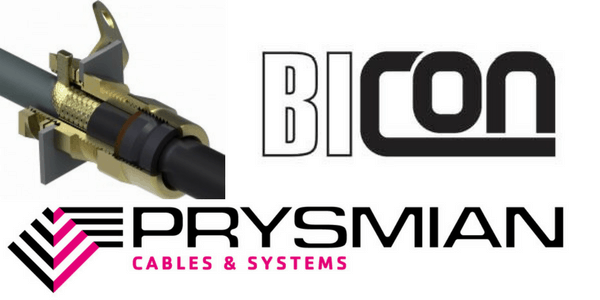

AXT Brass Cable Gland Kits – Prysmian Bicon 423AX Glands (Wire Braided Cable Terminations)
AXT Brass Cable Gland Kits
Prysmian Bicon AXT brass cable gland kits are industrial cable glands used to terminate wire braided cables where superior mechanical cable retention is required.
AXT brass cable gland kits are used for circular unarmoured, or wire braid or screened, plastic or rubber sheathed cables and are weatherproof and waterproof and suitable for indoor and outdoor use and includes::
- AXT Brass Cable Gland
- 2 x Flat Brass Washers
- Brass Earth Tag
- Steel Locknut
- PVC Shroud (2 per kit)
AXT Brass Cable Gland Kits
LV Cable Terminations
Prysmian Bicon AXT brass cable gland kits comply with BS EN 50262 and are suitable for glanding CY & SY type power and instrumentation cables – stranded copper conductors can be terminated using Cembre crimp or Pfisterer shearbolt cable lugs.
♦ LSF Low Smoke Zero Halogen Cable Glands BS6724
♦ Fire Resistant Cable Glands BS6387
♦ High Fault Current MV-HV Cable Glands BS6622
CuZn39Pb3 brass alloy is used for guaranteed performance – the gland kit is rated to IP66 with the use of a suitable sealing washer or thread sealant at gland interface and is suitable for service temperatures from -50ºC to +200ºC.
Prysmian Cable Glands – Industrial, Hazardous Area & High Voltage Cable Terminations
Prysmian Bicon AXT Brass Cable Gland Kits
Technical Specification
| Prysmian Bicon Reference | Size | Quantity Per Kit | Cable Dimensions (mm) | AXT Cable Gland Dimensions (mm) | |||||
| Cable Diameter ∅ (B) mm | Entry Thread (D) | Thread Length (E) | Protrusion Length (F) | Hexagon | |||||
| Min | Max | A/F (G) | A/C (H) | ||||||
| 423AX-52 | 20S | 2 | 5.5 | 11.5 | M20 x 1.5 | 15 | 34 | 22 | 24.9 |
| 423AX-53 | 20 | 2 | 8.0 | 16.0 | M20 x 1.5 | 15 | 44 | 25.7 | 28.7 |
| 423AX-55 | 25 | 2 | 11.5 | 21.0 | M25 x 1.5 | 15 | 46 | 33.0 | 36.9 |
Prysmian Bicon AXT Brass Cable Gland Kits – Dimensions Illustration
Prysmian Cable Glands
Terminating Low Voltage Cables
Prysmian cable gland kits available in brass, aluminium, nickel plated or stainless steel for cable termination of wire armoured, wire braided and unarmoured cables, including low smoke zero halogen cables in industrial non-hazardous areas. Flameproof and explosion proof Ex e/Ex d hazardous area cable glands with ATEX and IECEx certifications also available.
Also a complete range of Prysmian single, trefoil and bundled LV-HV cable cleats.
Prysmian Bicon BW Brass, CW Brass, CW Aluminium and A2 Brass Cable Glands
➡ For complete information, technical specifications and ordering details about AXT Brass Cable Glands see the product sections below.
AXT Brass Cable Gland Kits – Prysmian Bicon 423AX Glands (Wire Braided Cable Terminations)Download
