95sqmm Cable Lugs 11kV 33kV – Cembre 2A19

95sqmm Cable Lug

Cembre 2A19

Copper Cable Lug Specifications

Cembre 2A19 copper cables lugs are suitable for medium/high voltage crimping and terminating of 95sqmm stranded copper conductor cables with stud hole sizes of M10, M12, M14, M16 and M20.

Cable lugs suitable for connection of 11kV-33kV power cables to MV-HV electrical equipment including switchgear, transformers and control panels – heavy duty crimped joint for 95sqmm (2/0-3/0 AWG) copper conductors (low/fine stranded) cables.

• Conductor Metric: 95sqmm
• Conductor American Wire Gauge: 2/0-3/0 AWG
• Conductor Type: Stranded Copper
• Cable Lug Voltage: LV 11kV 33kV
• Lug Stud Options: M10 M12 M14 M16 M20
• UL Listed UL486A
• More: Cable Crimps, Lugs, Connectors

2A19 high voltage cable lugs are annealed with double length barrel and suitable for both indoor and outdoor cable termination, typically at 11kV/33kV.

cEMBRE CABLE LUGS

High Voltage hv 11kv 33kv – 95sqmm

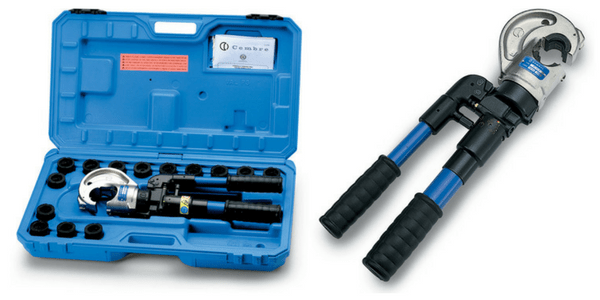

Cembre 2A19 cable lugs are installed using hydraulic or battery type cable crimping tools:

• Crimping Tools (50kN) – HT51, RH50, RHM50, B51, B500
•  Die Set 16sqmm – ME3-50

• Crimping Tools (120-130kN) – HT120, HT131-C, RHC131, RHM132, RHU131-C, B135, B1350, B131, B1300
• Nest + Indentor + Die Set 16sqmm – MA3 + PA10-C + ME3-C

• Crimping Tools (230kN) – ECW-H3D
• Cembre AU230-130D Adapter + 130kN Dies

• Crimping Tools 520kN) – RHU520
• Cembre AU520-130C Adapter + 130kN Dies

Cembre Cable Lugs

2A19-M10   2A19-M12  2A19-M14  2A19-M16  2A19-M20

Specifications

HV High Voltage Cable Lugs – Cembre single/double hole, angled and stalk connectors

Data Sheets

• Cembre 2A Cable Lugs MV HV 11kV 33kV – Information
  Download
• Cembre 2A Cable Lugs MV HV 11kV 33kV – Installation
  Download
