CATU MS-917-L Low Voltage Detector

CATU MS-917-L LV Detector

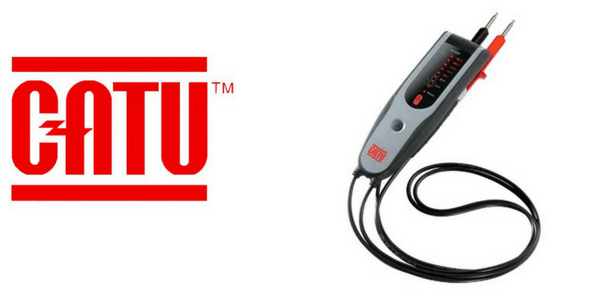

CATU Low Voltage Detector

MS-917-L

CATU MS-917-L low voltage detectors are compliant to IEC 61243-3 standards and the European standard EN 50110-1. The MS-917-L is suitable for indoor/outdoor use and is able to check voltage levels from 12 to 690V AC, 750V DC.

Safety features include a light indicating the presence of a dangerous voltage (> 50 V), test button to verify correct functionality and a high degree of protection thanks to IP65 and IK06 protection means this voltage detector is suitable for all environments.

The voltage detectors manufactured by CATU Electrical distributed by Thorne & Derrick are designed to carry out electrical safety checks on the absence of voltage during electrical or non-electrical work with the power off and in accordance with the mandatory rules for intervention on work or electrical installation.

CATU MS-917-L LV Detector

MS-917-L LV Detector Features

Fitted with test lead points Ø 2 mm L: 19 mm
Total safety with hazardous voltage indicator light (> 50 V)
Protection level: IP65/IK06
Self test button to discern the verification of the good functioning and the continuity function
Completely modular and adjustable to eclipse sockets
LED display
Also MV Medium Voltage Detectors | HV High Voltage Detectors

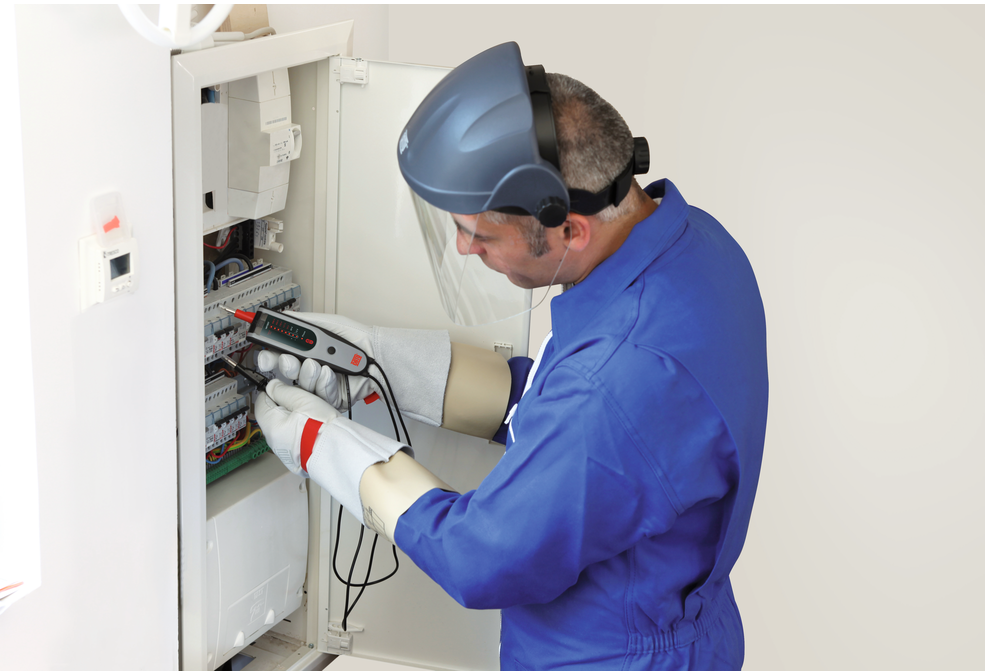

Low Voltage Detector DETEX

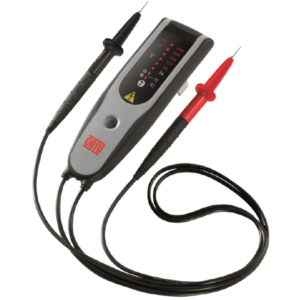

CATU MS-917-L LV Detector

Part Number – CATU Electrical MS-917-L
Frequency – 50/60 Hz +/- 10 %
Operating Voltage AC– 12-690V
Operating Voltage DC – 12-750V
Protection – IP65, IK06
Category – CAT III 1000 V CAT IV 600 V
Operating Temperature – -15 to +45 °C (class N)
Length – 165mm
Weight – 210g
Call T&D To Discuss 11kV 33kV 66kV Substation Equipment

Standards

IEC 61243-3:2014 / EN50110-1 / IEC 61010-1 /IEC 61010-031

Low Voltage (LV) Detector Range

This table provides an overview of the Voltage Detectors suitable for Low Voltage Electrical Power Systems – should you require any technical support or product selection advice please contact us.

CATU Part Reference	Voltage	Frequency	Threshold	Polarity DC	Indication	Continuity	Continuity (Tempo)	Digital Screen	Phase Rotation	Lighting Unit
MS-917-L	+12 to 690 Vac / 750 Vdc	50 – 60 Hz	7 thresholds	✅	✅	200 Ω	❌	❌	❌	❌
MS-918-L	900 Vac / 1000 Vdc	50 – 60 and 400 Hz	8 thresholds	✅	✅	80 Ω	✅	❌	✅	✅
MS-920-EX	690 Vac / 800 Vdc	50 – 60 Hz	Resolution 1 V	✅	✅	100 Ω	✅	✅	✅	✅
