Voltage Detectors MV Medium Voltage 11kV 33kV

View Sub Products

Voltage Detectors MV Medium Voltage 11kV 33kV

Voltage Detectors MV Medium Voltage 11kV 33kV

Pfisterer medium voltage detectors offer reliable voltage detection from 3kV to 33kV/36kV and are suitable for indoor and outdoor medium voltage switchgear and overhead line applications – all detectors can be used outdoors and in harsh weather conditions such as rain and snow.

All Pfisterer medium voltage detectors are designed and type tested to Standard IEC 61243-1 and have an integrated audible signal for reliable voltage detection even in extremely noisy environments.

Other versions with deviating voltages, ranges of nominal voltages, frequencies and languages are available on request.

Voltage Detectors – High Voltage HV Substations, Overhead Lines & Cables

Voltage Detectors

MV HV Detectors – 11kV, 20kV, 33kV, 66kV, 132kV up to 400kV

Voltage Detectors MV

Medium Voltage Detector MV Application Nominal Voltages Detector Image
Pfisterer KP-Test 5 Medium voltage (MV) voltage detection applications with contact electrode extension 1 to 33kV/36kV, Type S Pfisterer KP-Test 5
Pfisterer KP-Test 5 Dual Medium voltage (MV) voltage detection applications with contact electrode extension and nominal voltage range selector 3 to 33kV/36kV, Type S Pfisterer KP-Test 5 dual

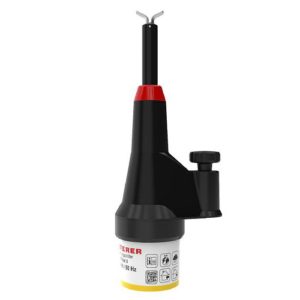

Pfisterer KP-Test 5L Used to detect voltages on medium voltage (MV) overhead lines 3 to 33kV/36kV, Type L Pfisterer KP-Test 5L
Pfisterer KP-Test 5L Dual Used to detect voltages on medium voltage (MV) overhead lines with nominal voltage range selector 3 to 33kV/36kV, Type L Pfisterer KP-Test 5L dual
