CATU MS-920-EX Low Detector

CATU Low Voltage Detector

MS-920-EX

CATU MS-920-EX low voltage detectors are compliant to IEC 61243-3 standards and the European standard EN 50110-1. The MS-920-EX is suitable for indoor/outdoor use and is able to check voltage levels from m 12 to 690V AC, 800V DC.

Safety features include a light indicating the presence of a dangerous voltage (> 50 V), test button to verify correct functionality (threshold of 100 Ω) and a high degree of protection thanks to IP65 and IK06 protection means this voltage detector is suitable for all environments.

The voltage detectors manufactured by CATU Electrical distributed by Thorne & Derrick are designed to carry out electrical safety checks on the absence of voltage during electrical or non-electrical work with the power off and in accordance with the mandatory rules for intervention on work or electrical installation.

MS-920-EX LV Detector Features

Test lead points Ø 2 mm L: 19 mm

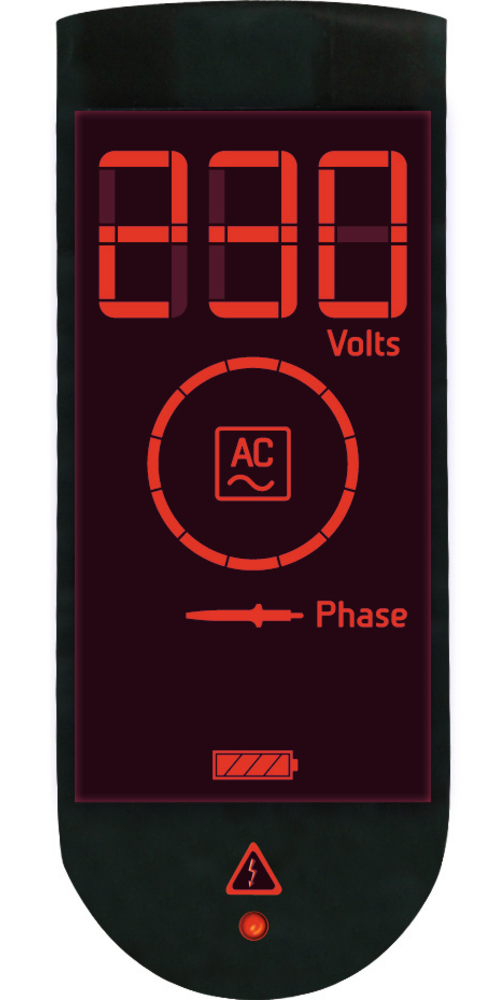

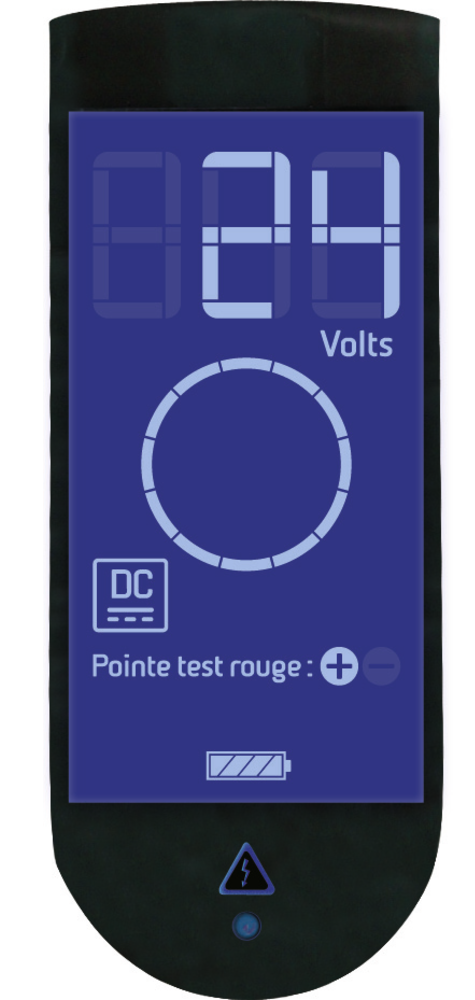

Three digit colour LCD screen display (red and blue)
Push-button for the self-test and for the continuity test (100 Ω)
Indicator light when voltage is dangerous (> 50 V)
Completely modular and adjustable using type E plugs
Lighting feature to light on the working area
Also MV Medium Voltage Detectors | HV High Voltage Detectors

Voltage Detector Detex

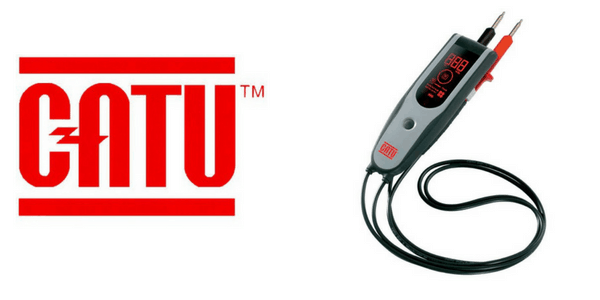

CATU MS-920-EX DETEX LV Detector

Part Number – CATU Electrical MS-920-EX
Voltage – 50/60 Hz
Class – III
Category IV – 600 V
Operating Temperature – -15 to +55 °C (class N)
Length – 165mm
Weight – 210g
Call T&D To Discuss 11kV 33kV 66kV Substation Equipment

CATU MS-920-EX DETEX LV Detector

Standards

IEC 61243-3:2014 / EN50110-1 / IEC 61010-1 /IEC 61010-031

Low Voltage (LV) Detector Range

This table provides an overview of the Voltage Detectors suitable for Low Voltage Electrical Power Systems – should you require any technical support or product selection advice please contact us.

CATU Part Reference	Voltage	Frequency	Threshold	Polarity DC	Indication	Continuity	Continuity (Tempo)	Digital Screen	Phase Rotation	Lighting Unit
MS-917-L	+12 to 690 Vac / 750 Vdc	50 – 60 Hz	7 thresholds	✅	✅	200 Ω	❌	❌	❌	❌
MS-918-L	900 Vac / 1000 Vdc	50 – 60 and 400 Hz	8 thresholds	✅	✅	80 Ω	✅	❌	✅	✅
MS-920-EX	690 Vac / 800 Vdc	50 – 60 Hz	Resolution 1 V	✅	✅	100 Ω	✅	✅	✅	✅
