CMP A2F-FF Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex d, Ex nR, Ex ta

CMP A2F-FF Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex d, Ex nR, Ex ta

CMP A2F-FF Cable Gland

CMP A2F-FF cable gland for terminating all types of flat-form unarmoured and braid type cables located in Zone 2 hazardous areas.

CMP A2F-FF Cable Glands

  • Designed for flat-form / heat trace cables
  • Displacement type flameproof seal
  • Deluge protected cable gland
  • -60˚C to +130˚C, -20ºC to 200ºC (ThermEx option A2F-FFHT)
  • Globally marked – hazardous area certified to IECEx & ATEX
  • Order Code: CMP A2F-FF** (Brass) Cable Gland

Hazardous Area Cable Glands

CMP A2F-FF cable glands are certified by ATEX for safe glanding of cables in Zone 2 potentially explosive atmospheres according to the following hazardous area classification:

  • II 2G, II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
  • II 3G Ex nR IIC Gc, I M2 Ex d I Mb , Ex e I Mb

➡ See full range of CMP ATEX Cable Glands for unarmoured and braided cables – to view the complete range of CMP glands for Zone 1 & Zone 2 cable termination please visit Hazardous Area Cable Glands Zone 1 & Zone 2 locations.

cmp A2f-FF Cable Glands specification

CMP A2F-FF Cable Gland Material: Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel

Cable Gland Design Specification: BS6121: Part 1: 1989, IEC 62444, EN 62444

The following table enables the selection of CMP A2F-FF cable glands – should you need to discuss a specific application for hazardous area or high voltage cable applications please call T&D.

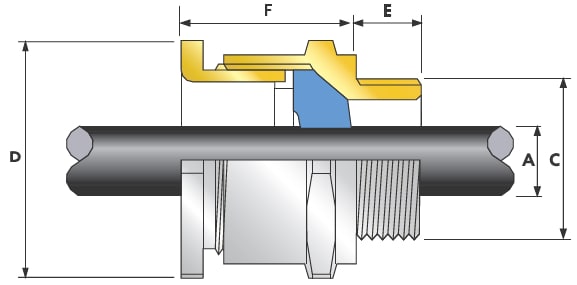

CMP Cable Gland Size Available Entry Threads “C” (Alternative Metric Thread Lengths Available Overall Cable Diameter “A” Across Flats “D” Across Corners “D” Protrusion Length “F” Combined Ordering Reference (Brass Metric) Cable Gland Weight (kgs)
Standard Option
Metric Thread Length (Metric) “E” NPT Thread Length (NPT) “E” NPT Min Max Max Max Max Size Type Ordering Suffix
A2F-FF20S M20 15.0 1/2″ 19.9 3/4″ 4.0 x 6.2 6.8 x 11.7 24.0 26.4 25.1 20S A2F-FF 1RA 0.054
A2F-FF20 M20 15.0 1/2″ 19.9 3/4″ 5.7 x 8.0 8.7 x 13.5 27.0 29.7 27.2 20 A2F-FF 1RA 0.059

CMP A2F-FF Cable Gland

CMP A2F-FF Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex d, Ex nR, Ex ta

A2F-FF Cable Glands CMP

CMP Cable Glands

CMP Cable Glands – cable terminations for Industrial, High Voltage, Hazardous Area Explosive Atmospheres (ATEX & IECEx) & Group 1 Mining Cables  – including CIEL High Fault Current, SOLO Low Smoke Zero Halogen, ZEN Insulated & RapidEx Barrier Cable glands

➡ For connecting, repairing or splicing cables see Hazardous Area Cable Joints.
