CMP A2e Zone 2 Hazardous Area ATEX Cable Gland Ex e, Ex nR, Ex

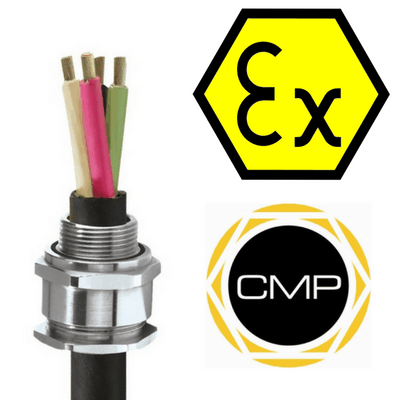

CMP A2e cable gland for terminating all types of unarmoured and braid type cables located in Zone 2 hazardous areas.
CMP A2e Cable Glands
- 10mm thread length on cable gland sizes 32 and below
- Displacement type flameproof seal
- Deluge protected cable gland
- -60˚C to +130˚C
- Globally marked – hazardous area certified to IECEx & ATEX
- Order Code: CMP A2e** (Brass) Cable Gland
Hazardous Area Cable Glands
CMP A2e cable glands are certified by ATEX for safe glanding of cables in Zone 2 potentially explosive atmospheres according to the following hazardous area classification:
- II 2G Ex e IIC Gb, II 1D Ex ta IIIC Da
- II 3G Ex nR IIC Gc
➡ See full range of CMP ATEX Cable Glands for unarmoured and braided cables- to view the complete range of CMP glands for Zone 1 & Zone 2 cable termination please visit Hazardous Area Cable Glands Zone 1 & Zone 2 locations.
cmp A2e Cable Glands specification
CMP A2e Cable Gland Material: Brass, Electroless Nickel Plated Brass, Aluminium, Stainless Steel
Cable Gland Design Specification: BS6121: Part 1: 1989, IEC 62444, EN 62444
The following table enables the selection of CMP A2e cable glands – should you need to discuss a specific application for hazardous area or high voltage cable applications please call T&D.

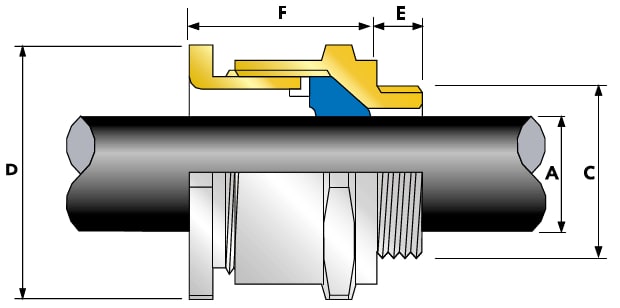

CMP Cable Gland Size | Available Entry Threads “C” (Alternative Metric Thread Lengths Available | Overall Cable Diameter “A” | Across Flats “D” | Across Corners “D” | Protrusion Length “F” | Combined Ordering Reference (Brass Metric) | Cable Gland Shroud | Cable Gland Weight (kgs) | |||||||
Standard | Option | ||||||||||||||
Metric | Thread Length (Metric) “E” | NPT | Thread Length (NPT) “E” | NPT | Min | Max | Max | Max | Max | Size | Type | Ordering Suffix | |||
A2e16 | M16 | 10.0 | – | – | – | 3.2 | 8.7 | 24.0 | 26.4 | 28.6 | 16 | A2e | 1RA | PVC02 | 0.060 |
A2e20s16 | M20 | 10.0 | 1/2″ | 19.9 | 3/4″ | 3.2 | 8.7 | 24.0 | 26.4 | 26.3 | 20S16 | A2e | 1RA | PVC04 | 0.070 |
A2e20S | M20 | 10.0 | 1/2″ | 19.9 | 3/4″ | 6.1 | 11.7 | 24.0 | 26.4 | 26.0 | 20S | A2e | 1RA | PVC04 | 0.060 |
A2e20 | M20 | 10.0 | 1/2″ | 19.9 | 3/4″ | 6.5 | 14.0 | 27.0 | 29.7 | 27.7 | 20 | A2e | 1RA | PVC05 | 0.070 |
A2e25 | M25 | 10.0 | 3/4″ | 20.2 | 1″ | 11.1 | 20.0 | 36.0 | 39.6 | 36.3 | 25 | A2e | 1RA | PVC09 | 0.130 |
A2e32 | M32 | 10.0 | 1″ | 25.0 | 1 1/4″ | 17.0 | 26.3 | 41.0 | 45.1 | 35.1 | 32 | A2e | 1RA | PVC10 | 0.150 |
A2e40 | M40 | 15.0 | 1 1/4″ | 25.6 | 1 1/2″ | 23.5 | 32.2 | 50.0 | 55.0 | 35.1 | 40 | A2e | 1RA | PVC13 | 0.200 |
A2e50S | M50 | 15.0 | 1 1/2″ | 26.1 | 2″ | 31.0 | 38.2 | 55.0 | 60.5 | 33.0 | 50S | A2e | 1RA | PVC15 | 0.260 |
A2e50 | M50 | 15.0 | 2″ | 26.9 | 2 1/2″ | 35.6 | 44.0 | 60.0 | 66.0 | 37.3 | 50 | A2e | 1RA | PVC18 | 0.270 |
A2e63S | M63 | 15.0 | 2″ | 26.9 | 2 1/2″ | 41.5 | 49.9 | 70.5 | 77.6 | 33.5 | 63S | A2e | 1RA | PVC21 | 0.430 |
A2e63 | M63 | 15.0 | 2 1/2″ | 39.9 | 3″ | 47.2 | 55.9 | 75.0 | 82.5 | 36.2 | 63 | A2e | 1RA | PVC23 | 0.400 |
A2e75S | M75 | 15.0 | 2 1/2″ | 39.9 | 3″ | 54.0 | 61.9 | 84.0 | 92.4 | 34.1 | 75S | A2e | 1RA | PVC24 | 0.520 |
A2e75 | M75 | 15.0 | 3″ | 41.5 | 3 1/2″ | 61.1 | 67.9 | 84.0 | 92.4 | 40.9 | 75 | A2e | 1RA | PVC26 | 0.500 |
A2e90 | M90 | 24.0 | 3 1/2″ | 42.8 | 4″ | 66.6 | 79.9 | 108.0 | 118.8 | 60.3 | 90 | A2e | 1RA | PVC31 | 1.600 |
A2e100 | M100 | 24.0 | 3 1/2″ | 42.8 | 4″ | 76.0 | 91.0 | 123.0 | 135.3 | 57.2 | 100 | A2e | 1RA | LSF33 | 1.780 |
A2e115 | M115 | 24.0 | 4″ | 44.0 | 5″ | 86.0 | 97.9 | 133.4 | 146.7 | 67.3 | 115 | A2e | 1RA | LSF34 | 2.670 |
A2e130 | M130 | 24.0 | 5″ | 46.8 | – | 97.0 | 114.9 | 152.4 | 167.6 | 74.7 | 130 | A2e | 1RA | LSF35 | 3.800 |
CMP A2e Cable Gland
➡ For connecting, repairing or splicing cables see Hazardous Area Cable Joints.
