CMP A2LSF100
A2 Cable Glands LSF | LV MV HV

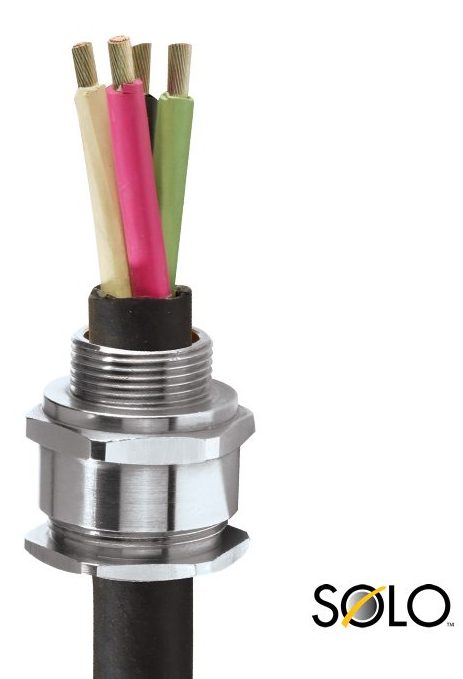

The A2 Solo Industrial Cable Gland is designed to provide secure and reliable cable termination for all types of unarmoured and braid armoured cables providing mechanical retention for LV MV HV power cables. CMP A2LSF20S16 is suitable for use in a wide range of industrial applications including rail, renewables, data centre, utility and energy transition sectors.
A2LSF100 Cable Gland Features:
- Order Code: CMP A2LSF100
- Displacement type seal
- CMP cable glands designed to prevent Coldflow

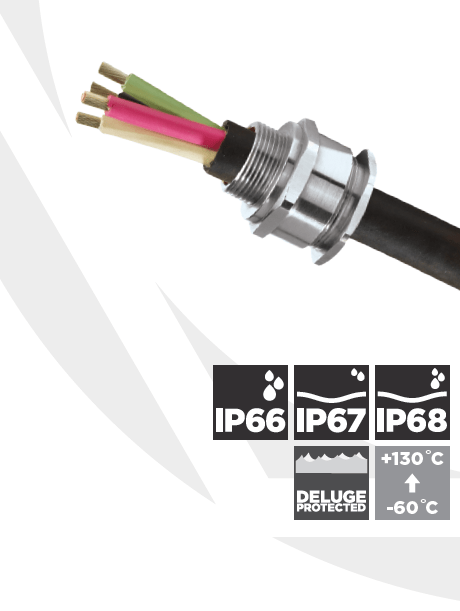

- Deluge protected
- -60°C to +130°C
- LUL (London Underground) Approved
- More CMP Cable Glands
The A2 cable gland manufactured by CMP is available in a range of sizes to accommodate different cable diameters. CMP A2LSF100 is made from high quality materials to ensure durability and long-lasting performance – typically used in conjunction with cable lugs manufactured by Cembre used to terminate stranded copper conductors into electrical connections, 600V to 33kV.
A2 solo Cable Glands specification
A2 SOLO Cable Gland Material: Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Design Specification: BS 6121:Part 1:1989, IEC 62444, EN 62444
| CMP Cable Gland Size | Available Entry Threads “C” (Alternative Metric Thread Lengths Available | Overall Cable Diameter “A” | Across Flats “D” | Across Corners “D” | Protrusion Length “F” | Combined Ordering Reference (Brass Metric) | Cable Gland Weight (kgs) | |||||||
| Metric | Thread Length (Metric) “E” | NPT | Thread Length (NPT) “E” | Option: NPT | Max | Max | Max | Max | Max | Size | Type | Ordering Suffix | ||
| A2LSF100 | M100 | 24.0 | 4” | 44.0 | 5” | 76.0 | 91.0 | 123.0 | 135.3 | 55.2 | 100 | A2LSF | 2RA | 1.780 |
Note: Ordering suffix ‘2RS’ includes locknut & shroud
CABLE GLAND KITS AVAILABLE
A2 SOLO cable gland kit up to & including size 25 – 2 glands, 2 locknuts & 2 LSF shrouds. Size 32 & above – 1 gland, 1 locknut & 1 LSF shroud
