Concrete Cable Trough

Anderlite Straight Trough & Lids

Anderlite lightweight, straight concrete cable troughs and lids are manufactured by Anderton and used to provide cable containment and protection and can be used within rail industry applications weighing up to 30% less than traditional concrete trough.

Straight concrete troughs are used for housing and protecting signalling, telecommunication and power cables.

Anderlite holds PADS approval for the full, traditional C/1 size range. This allows a seamless transition from existing ground routes to a new route.

Manufactured in the UK, cost effective and easy to maintain Anderlite straight cable trough is always available to deliver within a few days.

The Anderlite range replaces the standard Straight Concrete Cable Troughs & Lids range from Anderton.

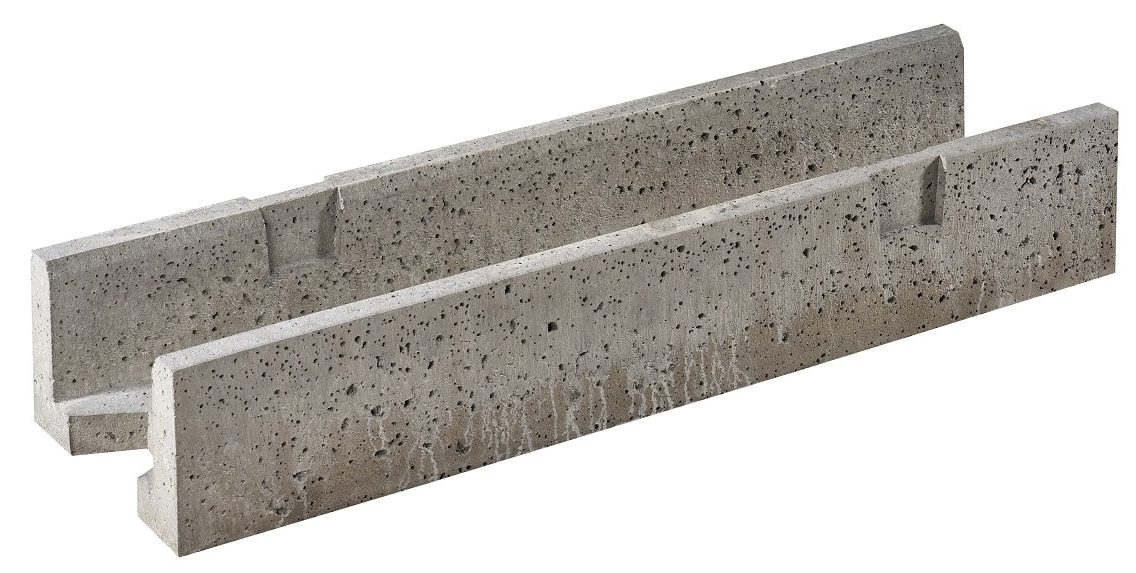

Anderlite Straight Concrete Cable Trough

Anderlite Straight Concrete Trough

Features

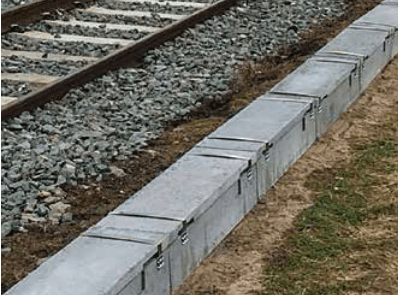

Anderlite trough retains enough mass to ensure that once installed lineside, it provides a stable installation that is free from future movement, ‘snaking’ or disruption brought about from train movement, severe weather conditions or ground movement.

Anderlite concrete is naturally fire resistant. The system also offers the optional benefit of being able to protect cables against theft when used in conjunction with Ander-Loc and Ander-Fin cable theft deterrants.

Concrete Cable Troughs & Lids - Anderlite 1000 Some of the benefits of Anderlite troughing are:

Network Rail Approved
Environmentally Friendly
Up to 30% lighter than traditional systems
Reduces manual handling concerns
Cost effective in purchase
Strong, robust and durable
Reduces transport costs by up to 20%
Fire resistant
Weather resistant
Also available in half lengths of 500mm – See Concrete Cable Troughs & Lids – Anderlite 500

Anderlite straight Concrete Cable Trough

Specification

Anderlite Straight Concrete Trough – 1000mm lengths
Trough Order Code	PADS Number	Internal Dimensions		External Dimensions			Weight	Number per Tonne	Pallet Quantity
Trough Order Code	PADS Number	Width	Depth	Width	Depth	Length	Weight	Number per Tonne	Pallet Quantity
C/1/6TRW	0004/131417	100mm	90mm	190mm	130mm	1000mm	24kg	41	36
C/1/7TRW	0004/131419	130mm	130mm	220mm	170mm	1000mm	32kg	31	30
C/1/8TRW	0004/131421	150mm	200mm	250mm	240mm	1000mm	45kg	22	15
C/1/9TRW	0004/131423	190mm	130mm	280mm	170mm	1000mm	38kg	27	24
C/1/10TRW	0004/131425	250mm	130mm	340mm	170mm	1000mm	40kg	25	18
C/1/29TRW	0004/131427	350mm	130mm	440mm	170mm	1000mm	46kg	21	14
C/1/43TRW	0004/131428	350mm	300mm	440mm	340mm	1000mm	75kg	13	9

• Please note once the lid is fitted the internal capacity of the trough will be reduced.

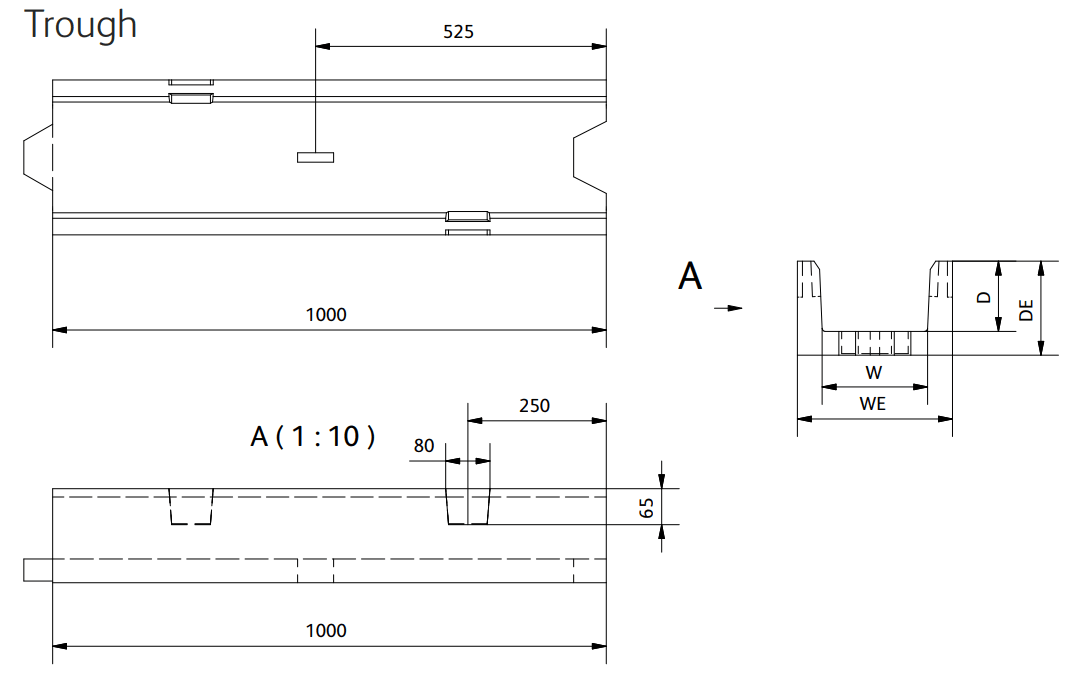

Anderlite Straight Concrete Trough | Dimensions

Anderlite Concrete Cable Trough Lids

Specification

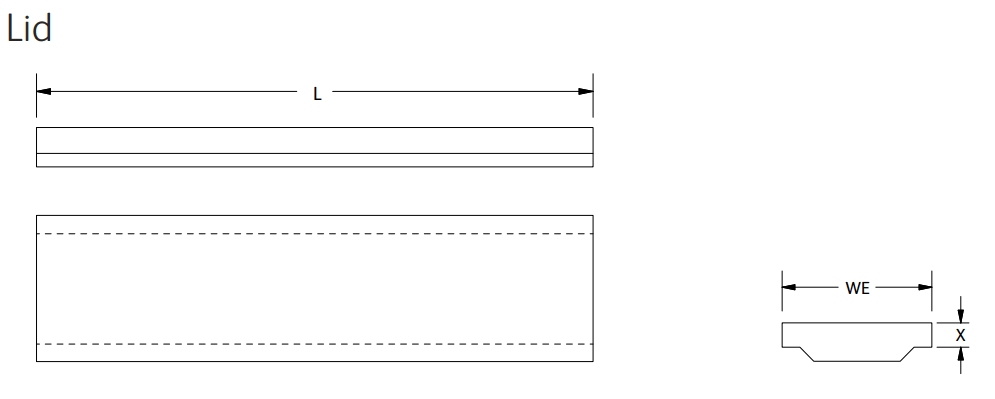

Anderlite Straight Concrete Trough Lids – 1000mm lengths
Lid Order Code	PADS Number	External Dimensions			Weight	Number per Tonne	Pallet Quantity
Lid Order Code	PADS Number	Width	Depth	Length	Weight	Number per Tonne	Pallet Quantity
C/1/6LRW	0004/131418	190mm	40mm	1000mm	16kg	62	60
C/1/7LRW	0004/131420	220mm	40mm	1000mm	20kg	50	50
C/1/8LRW	0004/131422	250mm	40mm	1000mm	22kg	45	50
C/1/9LRW	0004/131424	280mm	40mm	1000mm	28kg	36	48
C/1/10LRW	0004/131426	340mm	40mm	1000mm	31kg	32	36
C/1/29LRW	0004/131429	440mm	50mm	1000mm	46kg	21	20
