Concrete Cable Troughs & Lids – Anderlite 500

Concrete Cable Troughs & Lids - Anderlite 500

Concrete Cable Troughs & Lids – Anderlite 500

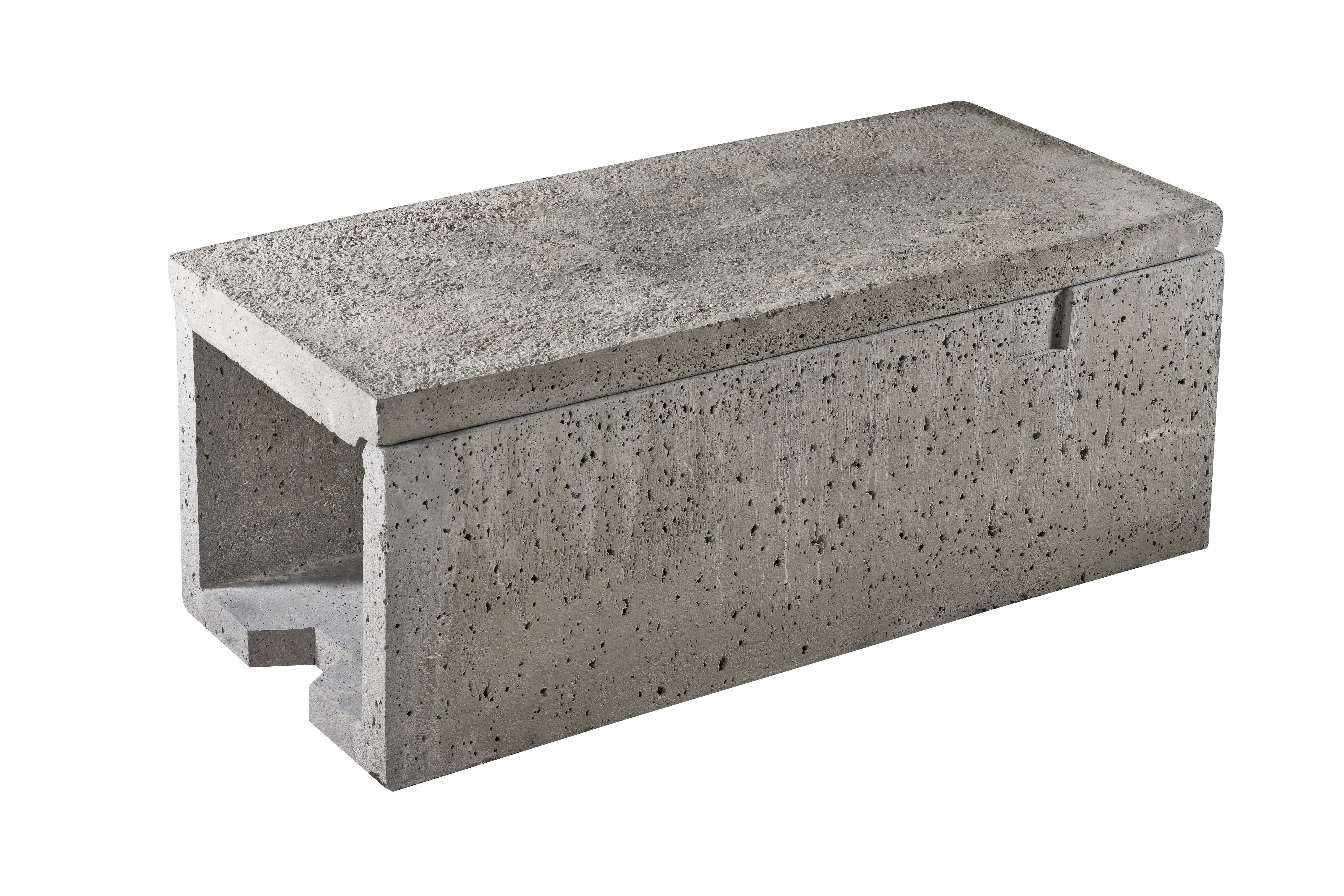

Anderton Anderlite 500 concrete cable troughs are used to provide cable containment and protection and can be used within rail industry applications and benefit from a reduction in weight of up to 30%. This can also reduce transports costs by up to 20% making the Anderlite 500 a cost effective solution.

Anderlite 500 cable troughs & lids are non-conductive to electricity and ensure cables are protected from environmental damage.

Anderton’s Anderlite 500 cable troughs & lids are for pedestrian traffic only. Additionally once the lid is fitted, the internal capacity of the concrete cable trough will be reduced.

Concrete Cable Troughs & Lids - Anderlite 500

Anderlite 500 Concrete Cable Troughs

Concrete Cable Trough Part Number BRB Cat/No Internal Dimensions External Dimensions Weight (kg) Pack Size
Width (W) Depth (D) Width (WE) Depth (DE)
C.1.7 Trough 500
4/131433 130 130 220 170 16 70
C.1.8 Trough 500
4/131436 150 200 250 240 23 40
C.1.9 Trough 500
4/131438 190 130 280 170 18 48
C.1.10 Trough 500
4/131440 250 130 340 170 20 48
C.1.29 Trough 500
4/131442 350 130 440 170 23 40
C.1.43 Trough 500
4/131443 350 300 440 340 38 18



Anderlite 500 Concrete Cable Trough Lids

Concrete Cable Trough Lid Part Number BRB Cat/No Lid External Dimensions Weight (kg) Pack Size
Width W Depth D
C.1.8 Lid 500
4/131437 250 40 9.5 50
C.1.9 Lid 500
4/131439 280 40 11 48
C.1.10 Lid 500
4/131441 340 40 13 36
C.1.29 Lid 500
4/131444 440 50 22 24
C.1.43 Lid 500
4/131444 440 50 22 24





Concrete Cable Troughs & Lids - Anderlite 500

Data Sheets
