MOS EHS130 Cutting & Peeling Tool
Cable Peeling Tool for HV Polymeric Cables

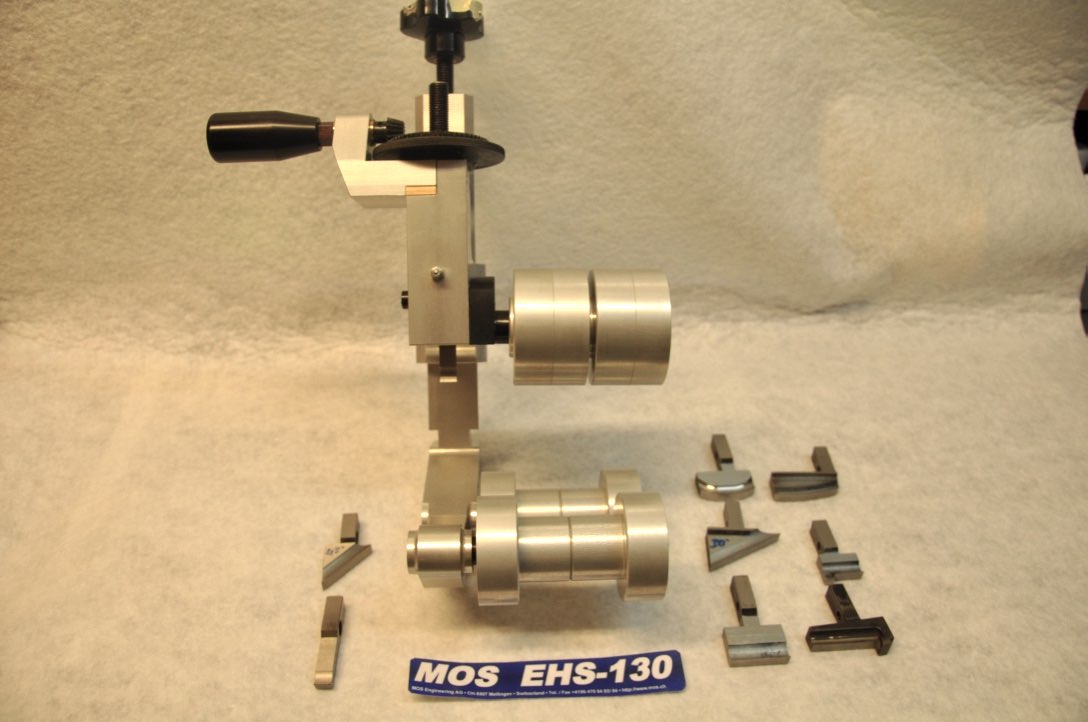

Type EHS130 With Knife
The MOS Cable Peeling Tool from the EH series are used to prepare HV cables with high precision for mounting cable joints and terminations.
Outer Diameter 35 – 130 mm. Cutting Depth 0.1 – 50 mm.
Thorne & Derrick distribute a wide range of Cable Jointing Tools from leading manufacturers including Alroc, Ripley and Boddingtons for all types of LV, MV and HV cable stripping, preparation and jointing requirements. Cable types include 11kV, 33kV, 66kV and 132kV-400kV polymeric cables with XLPE or EPR insulation and bonded/peelable semi-conductive cable screens.
Insulated tools are also available for live-working on low voltage cables, joints and electrical equipment up to 1,000v.
MOS EHS130 Multi Tool
- Cutting knife placed on the (left) side of the guide rolls
- Allows cable preparation directly at the cable end
- Automatic feed rate
- Very simple operation
Scope of Cable Jointing Tool Application

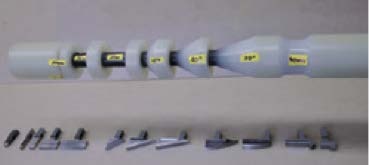

- Precise cutting of circumferential notches into the insulation (5, 10, 20, 30, 40, 50, 60 mm wide)
- Precise tapering of the insulation with 20°, 30°, 45 pitch
- Cut and remove insulation, max. cutting depth 50 mm
Wide selection of knives available to suit different shapes
| Technical Specification | EHS130 Jointing Tools |
| Cable-Ø: | 35 – 130 mm |
| Knife: | Notch-Knife 10 mm, Cone-Knife 45° |
| Weight: | 6.5 kg |
| Maximum Cutting Depth: | 0.1 – 50 mm |
