11kV-33kV HV High Voltage Insulation Removal Tool Set 15-52mm | Boddingtons Electrical 244230
Boddingtons Electrical 244230 | Cable Insulation Removal Tool Set Ø 15-52mm
Product Code: 244230
Boddingtons Electrical 244230 is a professional cable insulation removal tool set for preparing LV, MV and HV power cables with an application range of Ø 15-52mm. Designed to remove primary insulation from cables rated from 6kV to 45kV, the tool enables controlled helical and circular cuts for accurate cable preparation during jointing and termination work.

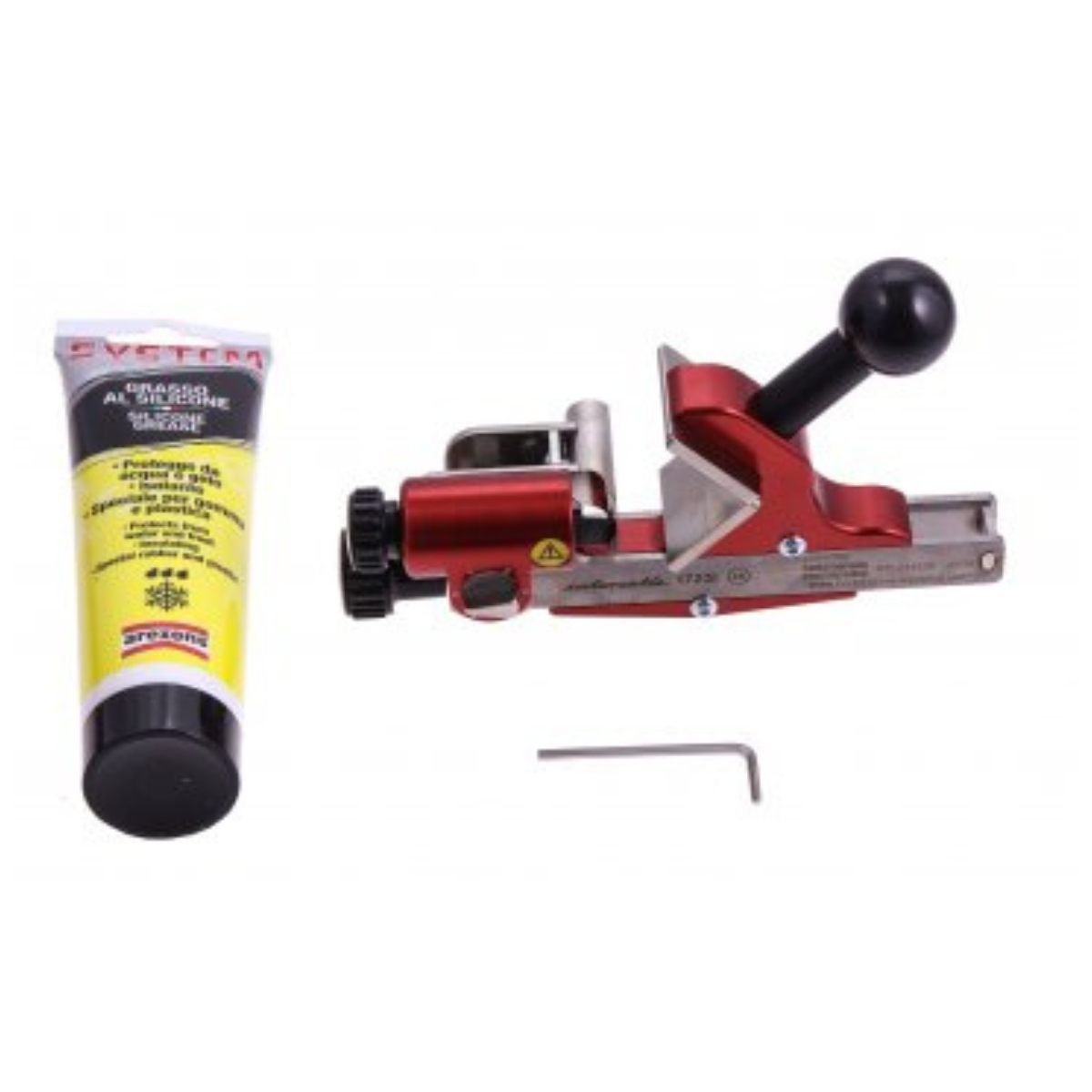

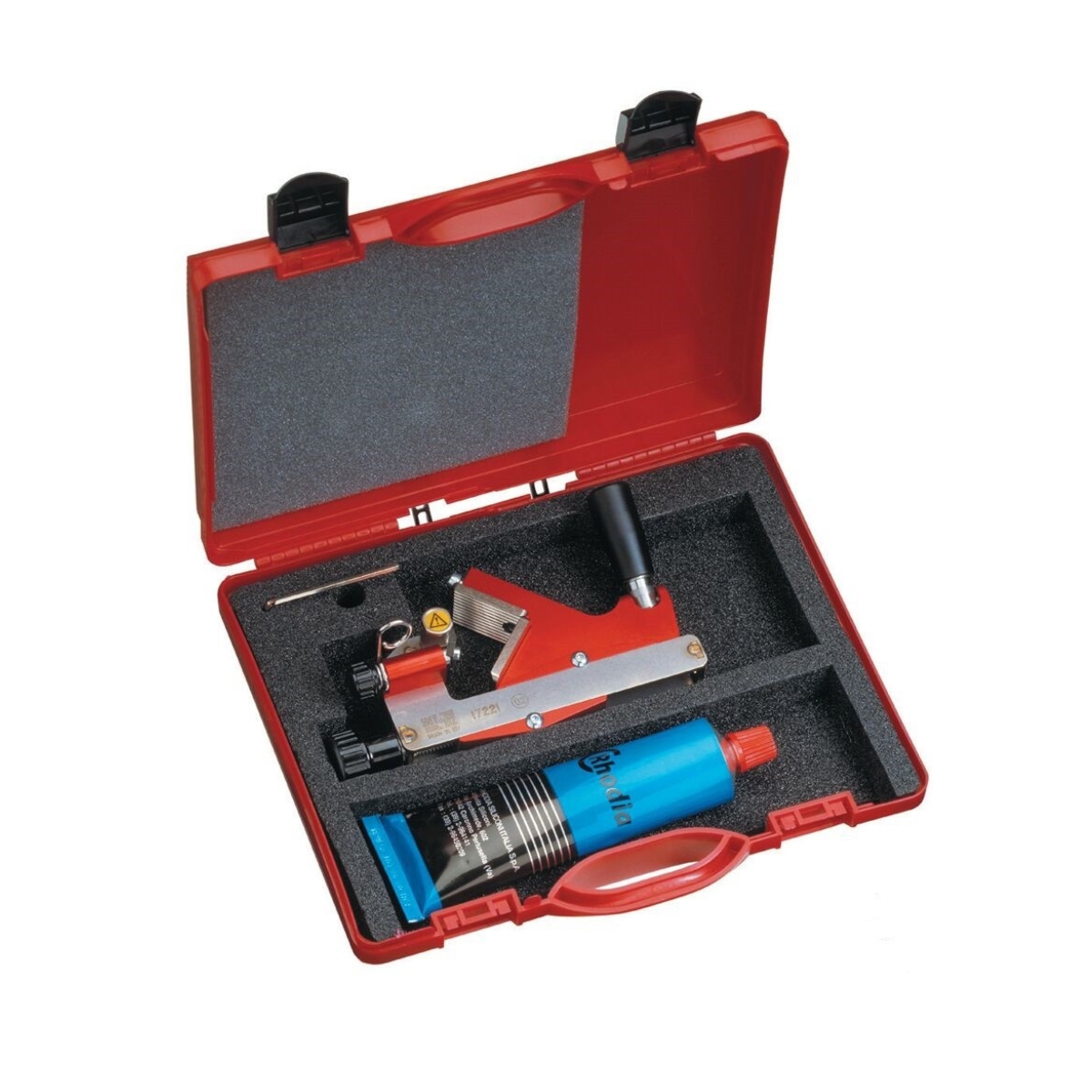

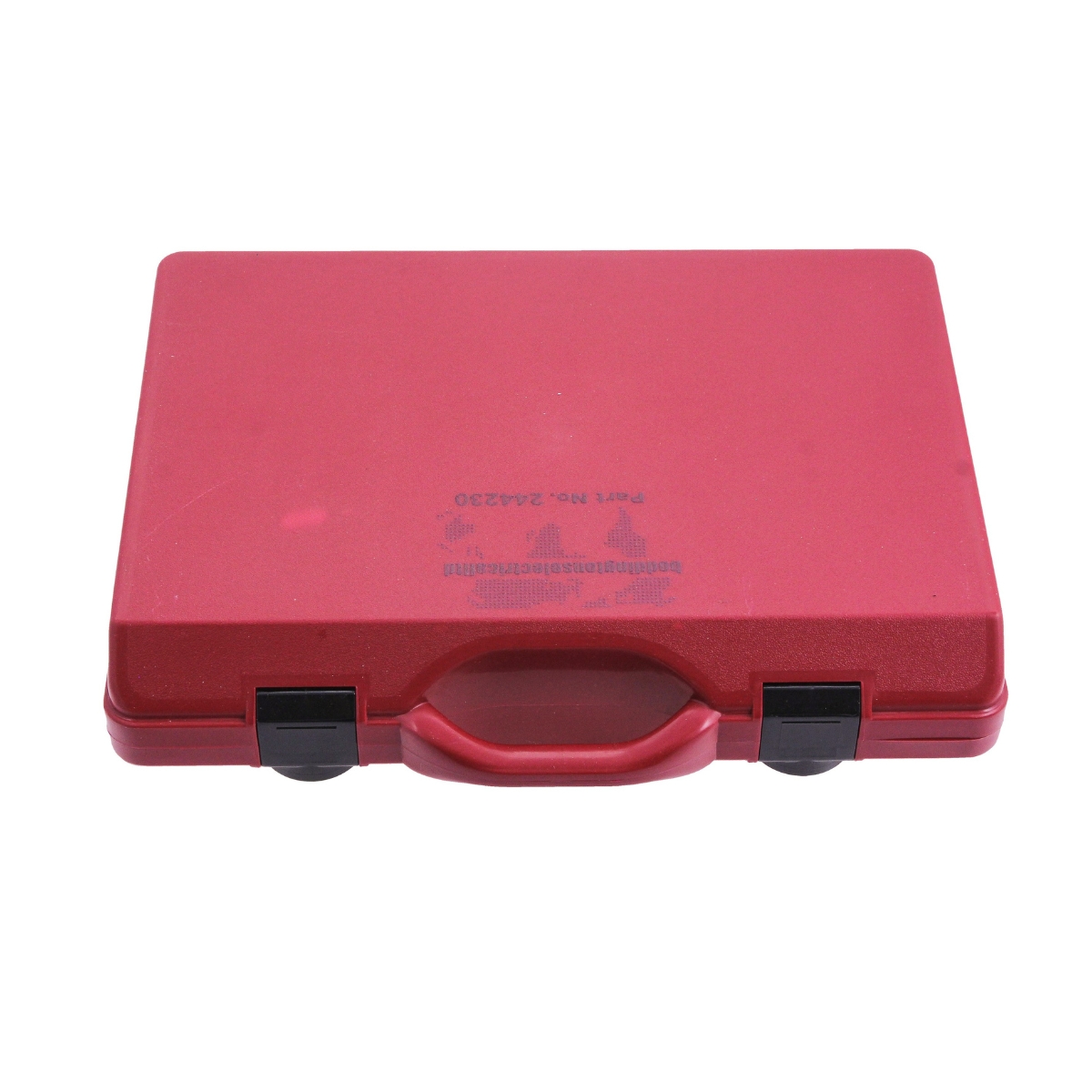

Supplied as a complete set with the IMS II cable stripper, 2.5mm Allen wrench, tube of silicone grease and a rigid resin case, this insulation stripping tool is suited to cable jointers and contractors working across utility, industrial and infrastructure applications. Not suitable for work under voltage.
GO TO DOWNLOADSCable Insulation Removal Tool for LV MV HV Cable Preparation
The Boddingtons Electrical 244230 is a specialist cable stripping tool developed for removal of primary insulation from power cables used across low, medium and high voltage systems. It is suitable for cable diameters from 15mm to 52mm and insulation thicknesses from 0mm to 15mm, making it a practical choice for jointers working on a wide range of cable preparation tasks.
Controlled Cable Preparation

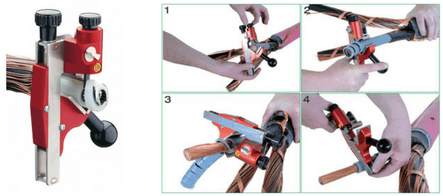

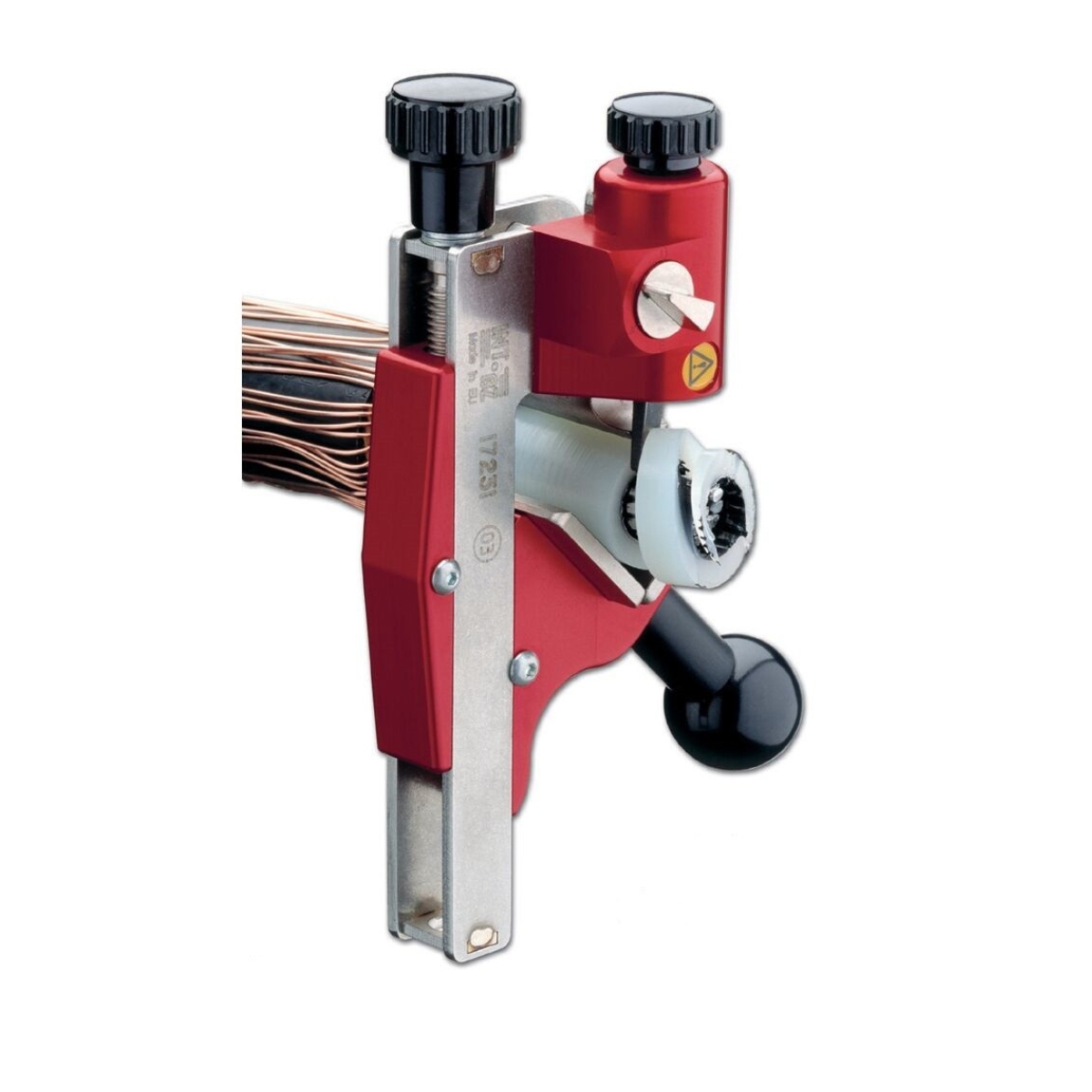

Designed to produce both helical and circular cuts, the IMS II stripper enables controlled removal of insulation without unnecessary damage to the cable surface beneath when correctly used. The tool is positioned on the cable using a vice-style system, while the snap knob allows the axial feed to be activated or deactivated depending on the cut required.
For 6kV to 45kV Cable Systems
Suitable for cables rated from 6kV to 45kV, the 244230 is used as part of professional cable jointing and termination preparation on utility, industrial and infrastructure projects. The set is supplied in a rigid resin case with the stripper, Allen wrench and silicone grease, giving contractors a complete cable insulation removal solution ready for site use. This tool is not suitable for live working or work under voltage.
Need the right cable jointing tools for preparing LV, MV or HV cables? Thorne & Derrick supply specialist stripping, chamfering, cutting and crimping tools for cable jointers, utilities, contractors and industrial power projects worldwide.
Boddingtons 244230 – Technical Specifications
Cable Preparation Tools – Quick Guide
Cable Insulation Removal Tool – Key Benefits
✔ Designed for primary insulation removal on cables from 6kV to 45kV
✔ Suitable for cable diameters from Ø 15-52mm
✔ Handles insulation thicknesses from 0-15mm
✔ Produces controlled helical and circular cuts for accurate cable preparation
✔ Vice-style positioning helps keep the tool stable on the cable during operation
✔ Snap knob enables or disables axial feed to suit the stripping method
✔ Designed to strip both cable ends with unlimited stripping length
✔ Interchangeable blade supports maintenance and continued site use
✔ Supplied as a complete set with accessories and protective case
✔ Suitable for cable jointers working on LV, MV and HV cable systems
Applications
✔ Preparation of LV, MV and HV power cables prior to installing joints and terminations
✔ Removal of primary insulation from cables in the 6kV to 45kV range
✔ Utility and contractor cable jointing work on distribution and infrastructure projects
✔ Industrial power, process and plant cable preparation tasks
✔ Cable accessory installation for switchrooms, substations and private networks
✔ Workshop and on-site cable preparation where controlled circular or helical stripping is required
✔ Preparation of cables with any type of primary insulation within the stated range
✔ Professional use by cable jointers, utilities and power contractors
Boddingtons 244230 – Notes & Selection
The Boddingtons Electrical 244230 is selected primarily by cable diameter, insulation thickness and the type of preparation needed before installing cable accessories. With an application range of Ø 15-52mm and insulation thickness of 0-15mm, it is suited to a broad span of power cable preparation tasks where accurate stripping of primary insulation is required. The tool is described for any type of primary insulation, but final suitability should always be confirmed against the actual cable construction, the accessory manufacturer’s instructions and the site method statement.
Because the tool is used on cables from 6kV up to 45kV, it is important that users follow correct isolation and safe systems of work. This is not a live working tool and is not suitable for work under voltage. For complete cable preparation, it may be used alongside other stripping, screen removal, cutting and crimping tools depending on the jointing or termination procedure.
✔ Suggested application: any type of primary insulation within the stated size range
✔ Max. rotating diameter: 220 mm
✔ Interchangeable blade: supports replacement and maintenance
✔ Accurate cable preparation: designed for controlled stripping before jointing and termination work
✔ Professional use only: follow cable accessory instructions and site safety procedures
✔ Not for live working: not suitable for work under voltage
Boddingtons Electrical 244230
LV MV HV Cable Insulation Stripping Tools

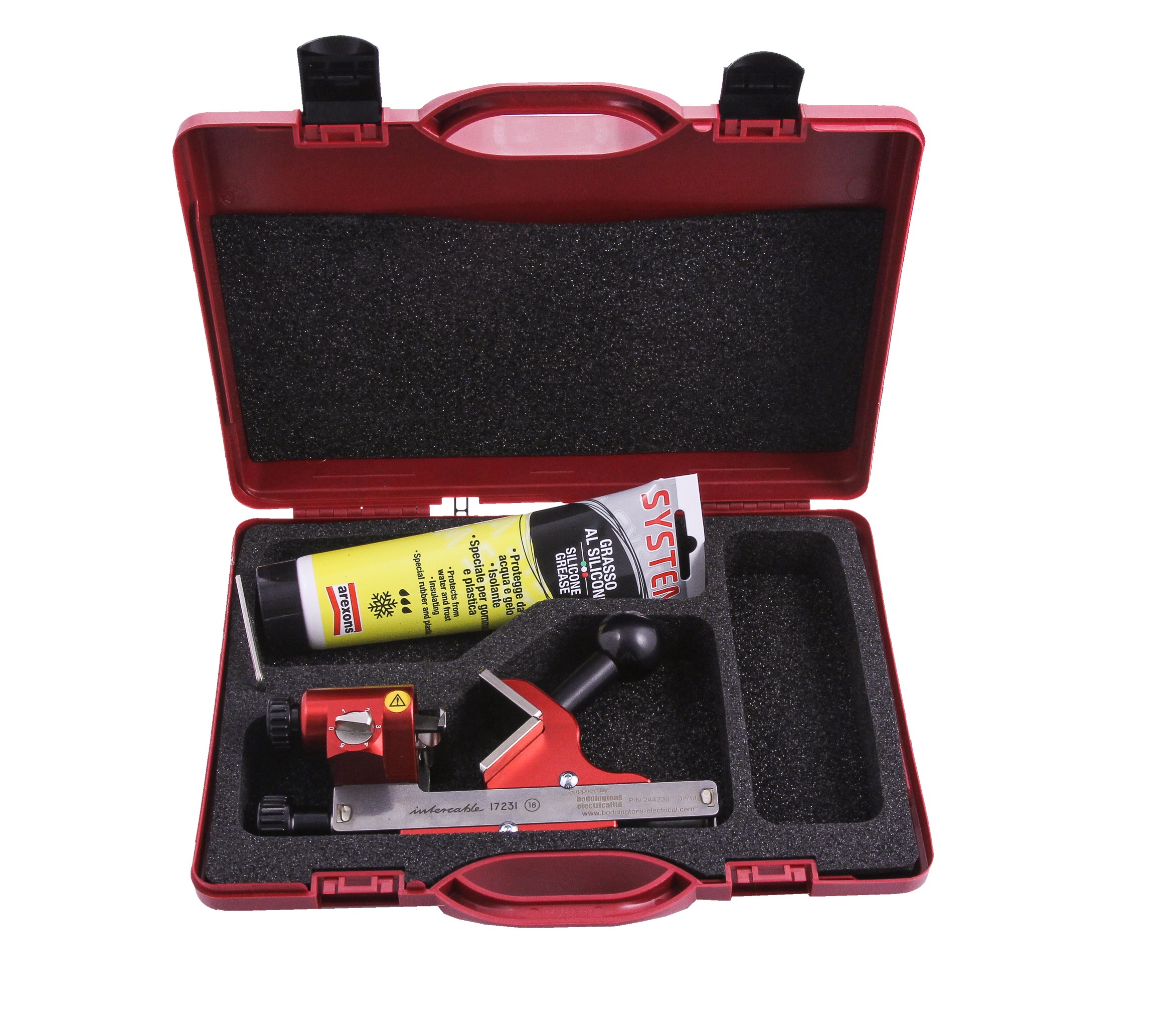

The 244230 Insulation Removal Tool Set with Universal Cable Stripper is manufactured by Boddingtons Electrical and is suitable for ø 15 – 52 mm. The set includes IMS II – cable stripping tool, 2.5mm allen wrench and a tube of silicone grease in a rigid plastic case.
Boddingtons Electrical 244230 | Insulation Removal Tool Set with Universal Cable Stripper ø 15 – 52 mm
Boddingtons Electrical 244230
Technical Features
- Designed to remove the primary insulation of 6kV up to 45kV cables
- Helical and circular cuts
- Max. rotating diameter 200mm
- Snap knob to activate/deactivate axial feed
- Positioned on the cable like a vice
- Designed to strip both ends
- Unlimited stripping length
- Interchangeable blade
- Reduced rotation enables to work on limited space
- Perfect precise circular cut
- No incisions on HV cable surface below
- Weight: 1000g
- Order Code: 244780
- Manufacturer: Boddingtons Electrical
- HS Commodity Codes: 82055980
- Also Cable Cutting Tools | Cable Crimping Tools
Universal Cable Stripper
- Cable Application Range: Ø 15 – 52mm
- Cable Insulation Thickness: 0 – 15mm
- Suggested application: Any type of primary insulation
- Dimensions: 275 x 220 x 65 mm
- ATTENTION: not suitable for work under voltage
- See Cable Insulation Removal Tools for more cable tooling.
Boddingtons 244230 Tool – Cut, Strip & Remove Cable Insulation
