CX16* Cable Gland Kit – Prysmian Bicon KA414-81

CX Brass Cable Gland Kits – Prysmian Bicon KA414 Glands (Braid Wire Armoured Cables Terminations)

CX16* Brass Cable Gland Kits

CX16*

Prysmian Bicon KA414-81 (CX16*) CX brass cable glands with 16mm entry thread enable cable termination of plastic or rubber sheathed wire braid armoured cables in indoor or outdoor applications  – the CX16* cable glands are weatherproof and waterproof and suitable for 3.5-9.2mm cable diameters.

CX16* brass cable gland kits have a three part armour lock with separate armour locking ring, ideal for checking electrical continuity complying with BS EN 50262 & BS 6121-1: 1989 with a service temperature range of -20ºC to +90ºC.

Prysmian Bicon CX16*

Brass Cable Gland Kit

Technical Specification

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Material: Brass
  • Cable Gland Size: CX16*
  • Quantity Per Kit: 2 Cable Glands
  • Under Braid Max ∅: 7.5mm
  • Cable Diameter (B): 3.5-9.2mm
  • Braid Armour Wire ∅: 0.2/0.3mm
  • Entry Thread (D) : M16 x 1.5
  • Thread Length (E) : 10mm
  • Protrusion Length (F): 40mm
  • Hexagon A/F (G): 19mm
  • Hexagon A/C (H): 21.5mm
  • Order Code: KA414-81 (CX16*)

CX16* Brass Cable Gland Kit

CX16* Gland Kit Contents: CX Gland, Brass Earth Tag and Brass Locknut. CX gland packs also available for low smoke zero halogen and ATEX hazardous area applications. For 11kV-33kV high voltage cable terminations see MV-HV cable glands.

Also available from Prysmian ➡ BW Brass Cable Glands CW Aluminium Cable Glands A2 Brass Cable Glands

Gland kit order code: pRYSMIAN CX16* KA414-81
CX16* Brass Cable Gland Kit

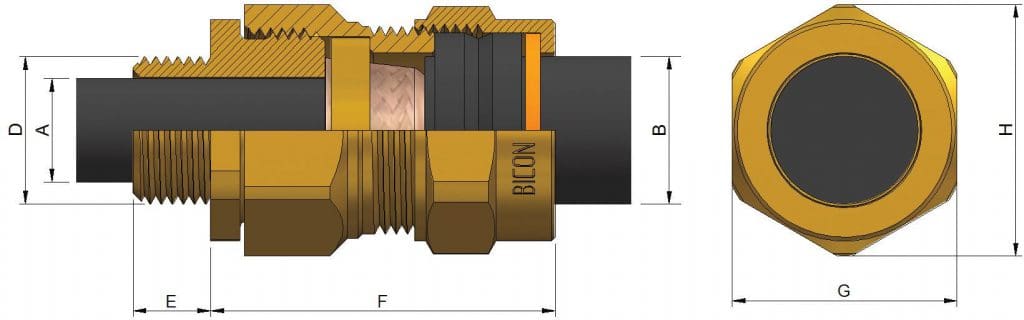

Prysmian Bicon CX16* Brass Cable Gland Kits – Dimensions Illustration
