Discharge Rod for Electrostatic Air Filter Equipment

Pfisterer 363 800 000 00158

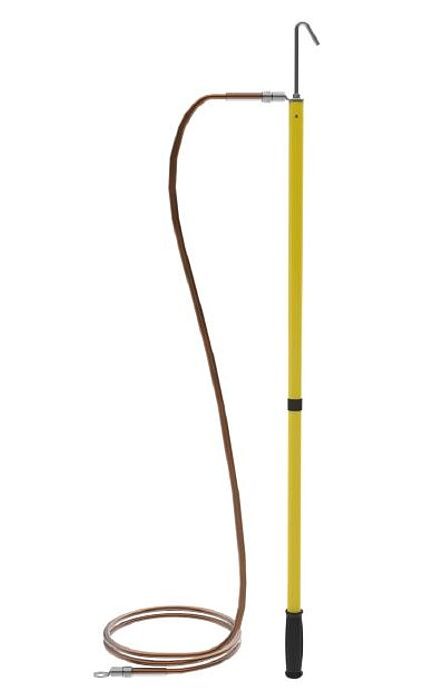

The Pfisterer 363 800 000 00158 is a HV discharge rod that is used for discharging induced and equalising voltages on electrostatic air filter equipment. This earthing and short-circuiting device is used to discharge induced and equalizing voltages

The Pfisterer 363 800 000 00158 is a reliable piece of electrical safety equipment for technicians working with electrostatic air filter equipment in various industrial applications.

Technical Description:

Fibreglass-reinforced polyester tube, colour yellow
Spring-loaded knife contact permanently mounted
Earthing cable with earthing clamp type E2
Suitable for mounting on round conductors with diameters between 12 – 26.5 mm

Discharge Rods & Sticks for Medium & High Voltage Power Networks | MV HV

➡ See also static discharge sticks for use on MV HV Electrical Power Systems up to 33kV (CATU CM50) – supplied with 6m length copper cable fitted with insulated alligator clamp and Tested in accordance to IEC 60855. Additionally, the Westminster range of discharge sticks from PENTA manufactured from 1.2 metre-long lightweight insulating tubing and fitted with a dischargeable hook are available for use on 11kV/35kV medium/high voltage power cables.

Discharge Rods | Westminster | PENTA | 11kV (15kV) to 33kV (35kV)

Static Discharge Sticks | CM50 CATU Electrical Safety Equipment

Discharge Rod for Electrostatic Air Filter Equipment

Pfisterer 363 800 000 00158

Pfisterer 363 800 000 00158 Technical Data

Part Reference \| High Voltage	Pfisterer 363 800 000 00158
Cable Cross Section	25sqmm
Pole Length	1500mm
Diameter of Insulating Element	33mm
Insulating Length	500mm
Cable Length	3000mm

Operating Poles

An extensive range of Operating Poles manufactured from lightweight resin-impregnated fibreglass provide highest levels of electrical safety and insulation across standard voltages: 11kV, 33kV 66kV. The operating poles can be inter-connected to achieve extended lengths for both Medium Voltage & High Voltage (MV-HV) overhead line and substation applications. The poles are compliant to ENA Technical Specification TS 41-21 which combines substation and overhead line portable earthing requirements (previously covered by ENA TS 43-81).
