Copper Rod to Earth Cable ‘G’ Clamps

‘G’ clamps are earth clamps used for joining and connecting earth rods with various diameter of shank to different sizes (CSA – cross section area) of stranded copper conductor – earthing clamps are highly resistant to corrosion and mechanically strong offering a long life span.

‘G’ clamps are manufactured from Gunmetal with M10 x 25mm phosphor bronze set screw except AN Wallis ERR 1035 in naval brass with M6 x 20mm stainless steel set screw.

Copper Earth Rod to Earth Cable 'G' Clamps

Earth Clamps

Selection Table

The following table shows the full range of G type earth clamps available to connect and joint earth rods with various shank dimensions up to 20mm diameter to stranded copper conductors 6-185sqmm.

Earth Rod Shank mm	Copper Conductor Range sqmm	L mm	W mm	H mm	Unit Weight kg	Pack Quantity	AN Wallis Part Number
9.5	6-35	32	20	16	0.04	25	ERR 1035
12.7	6-35	34	25	15	0.05	25	ERR 1635
12.7	35-70	41	25	17	0.08	50	ERR1670*
14.2	6-16	34	25	15	0.05	25	ERR 1635
	16-70	41	25	17	0.08	50	ERR1670*
	70-185	48	30	19	0.10	50	ERR2095*
15.0	6-16	34	25	15	0.05	25	ERR 1635
	16-70	41	25	17	0.08	50	ERR1670*
	70-150	48	30	19	0.10	50	ERR2095*
16.0	6-70	41	25	17	0.08	50	ERR1670*
16.0	70-120	48	30	19	0.10	50	ERR2095*
17.2	6-95	48	30	19	0.10	50	ERR2095*
20.0	6-70	48	30	19	0.10	50	ERR2095*

*Suitable for use with 8mm solid circular copper conductor

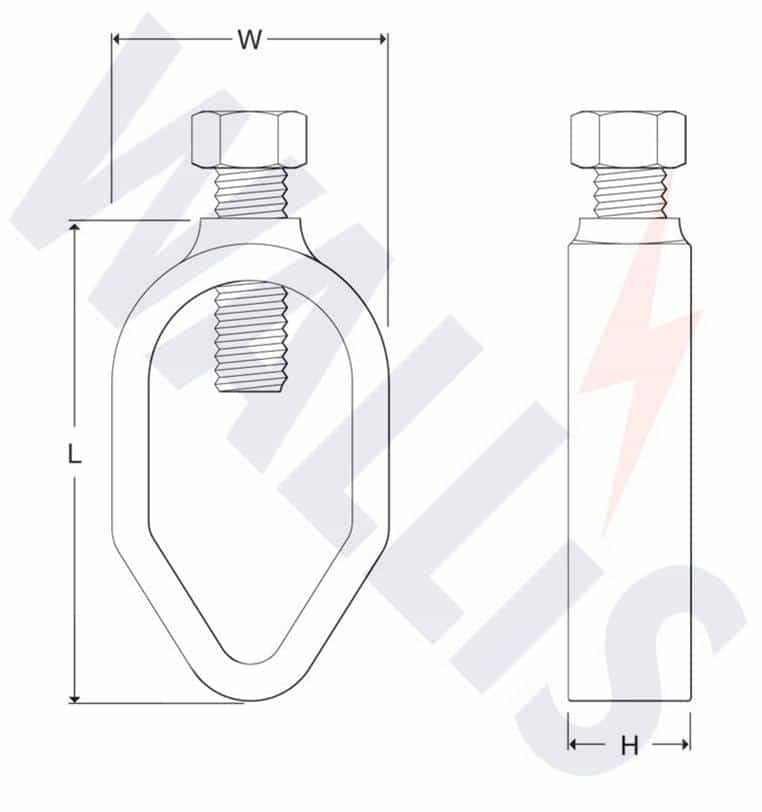

Earth Cable ‘G’ Clamps – Dimensions

➡ Complete range of A type earth clamps are available for the connection of copper rods to earth tape.
