Ellis NBC32-39 No Bolt Cable Cleats are manufactured from nylon and are London Underground (LUL) approved cleats for supporting and clamping power, signalling and telecommunications cables.

The cable cleat is manufactured from a high strength nylon specifically formulated to meet the London Underground 1-085 specification and due to the non-metallic design is suitable for use in arduous environments.

No Bolt Cleats form part of the Ellis Patents range of single cable cleats.

Ellis Cable Cleat NBC32-39

Technical Specification

  • Cable Cleat Diameter Min 32mm
  • Cable Cleat Diameter Max 39mm
Cable Cleat Orientation Peak  Phase Spacing Cleat Spacing IEC61914
Stacked 71.7kA 75mm 300mm Cat. 2 pass
Horizontal 101kA 110mm 300mm Cat. 2 pass



Ellis NBC32-39 No Bolt Cleat 32-39mm

Ellis NBC32-39 No Bolt Cleat 32-39mm

Ellis patents NBC32-39 Cleat DimensionsCable Cleats - LUL London Underground Approved

  • Width 109mm
  • Height 91mm
  • Depth 90mm
  • Weight 792g

SINGLE CABLE CLEAT SELECTION TABLE

Specification details for Ellis Patents No Bolt NBC32-39 cable cleat for single cable applications:

Ellis Patents Cable Cleat Part Number  Cable Ø Range mm Ellis Patents Cable Cleat Dimensions Fixing Hole Weight g
W (mm) H (mm) D (mm)
NBC32-39 32 – 39 109 91 90 1 x M8 792

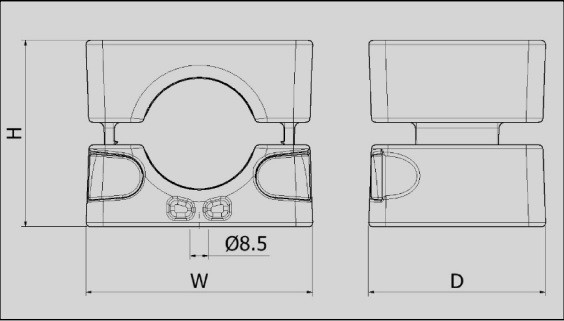

Ellis Patents No Bolts Cable Cleats - Dimensions

Ellis NBC32-39 No Bolt Cleat 32-39mm – Dimensions

Ellis No Bolt Cleats
Push for locking mechanism on the keepers and the top clamp provide fast installation The cleat can be supplied with an M8 through hole fixing option or channel twist fit feature
Push for locking mechanism on the keepers and the top clamp provide fast installation The cleat can be supplied with an M8 through hole fixing option or channel twist fit feature
The cleat be stacked on a quarter turn feature provided by channel twist fit versions Designed to accomodate 18-55mm single cable range take
The cleat be stacked on a quarter turn feature provided by channel twist fit versions Designed to accommodate 18-55mm single cable range take
Ellis Patents

See Ellis Patents for further details about cable cleats for LV-HV cable support and retention.
