Single Cable Cleats

  • Manufactured By Ellis Patents
  • Cable Cleat Type – Single Cables
  • Material – Polymeric
  • Cleat Range Single Cables – 18-55mm

Thorne & Derrick International, based in the UK, stock and distribute the complete range of cable cleats and cable hangers manufactured by Ellis Patents including No Bolts cleats for short circuit retention and cable protection of LV (Low Voltage), MV (Medium Voltage) and HV (High Voltage) cable systems in single-way formation in accordance with London Underground 1-085 Specification.

The Ellis No Bolts cleat, from cable cleat and clamp innovator, Ellis Patents is an all polymeric stackable cable management product that is the first ever cable cleat to be granted PADS approval by Network Rail.

  • PADS 0111/120321 18-22mm Cable Cleat
  • PADS 0111/120332 20-26mm Cable Cleat
  • PADS 0111/120323 24-30mm Cable Cleat
  • PADS 0111/120324 28-34mm Cable Cleat
  • PADS 0111/120325 32-39mm Cable Cleat
  • PADS 0111/120133 37-47mm Cable Cleat
  • PADS 0111/120134 45-55mm Cable Cleat

Ellis Patents Innovative No Bolts Cable Cleats – Benefits

  • Tool-less design for ease of cleat installation
  • No bolts – twist foot function for speed of installation when stacking cable cleats
  • No metallic parts for safe installation
  • Network Rail NR PADs approval
  • Meets London Underground LUL 1085-1 material approval requirement

Cable Cleats

Ellis Patents No Bolts cable cleats are non-metallic polymer single cable cleats for cable diameters ranging from 18-55mm for industrial and rail cable applications.

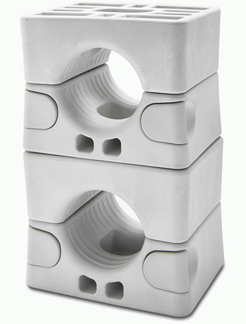

Ellis Patents No Bolts cable cleats are part of the single cable cleat range and are fully polymeric cable cleats designed for fast installation – the cable cleats are easily “stackable” and requires no conventional fixings to supporting steel-work for use in underground rail tunnels. The Ellis Patents design also allows for additional No Bolts cleats to be stacked on top of one another with nothing more than a small turn of a unique fixing lock.

Due to its non-metallic high strength nylon design the Ellis Patents No Bolts cable cleats are impervious to ‘bi-metallic corrosion’ and suitable for use in the harshest of environments including underground rail tunnels – a range of fire-rated cable cleats are also available manufactured from stainless steel for use with fire resistant / fire performance (FR FP) cables.

➡ Watch the following video from Ellis Patents which explains the rapid installation procedure for No Bolts cleats:

International Standard IEC 61914:2009Cable Cleats Stacked

Ellis Patent cable cleats with international specifications are used to clamp and retain LV MV HV cables including 11kV and 33kV networks depending on short-circuit calculations according to IEC61914 calculations.

For cable installations where corrosion protection is required, including onshore and offshore substations or hazardous area locations, see our complete range of  ➡ stainless steel cable cleats.

Ellis Patents No Bolts Cable Cleats

Maximum Short Circuit Test Level Cleat Spacing

Cable Cleat Orientation Peak  Phase Spacing Cable Cleat Spacing IEC61914
Stacked Cleats 71.7kA 75mm 300mm Cat. 2 pass
Horizontal Cleats 101kA 110mm 300mm Cat. 2 pass
Cable Cleats - LUL London Underground Approved

LUL London Underground Approved

Ellis Patents No Bolts Cable Cleats

Features & Benefits

  • No Bolts cable cleats are compliant with the requirement of London Underground Standard 1-085
  • Stackable design for multiple cable runs
  • No risk of damaging cable jackets/sheaths
  • Range suits Ø18 – Ø55mm single cables
  • Fast installation
Ellis Patents No Bolts Cable Cleats

Ellis Patents No Bolts Cable Cleats

Installing Cable Cleats

Installation instructions for single way cables using No Bolts cable cleats manufactured by Ellis Patents:

Push for locking mechanism on the keepers and the top clamp provide fast installation The cleat can be supplied with an M8 through hole fixing option or channel twist fit feature
Push for locking mechanism on the keepers and the top clamp provide fast cable cleat installation The cleat can be supplied with an M8 through hole fixing option or channel twist fit feature
The cleat be stacked on a quarter turn feature provided by channel twist fit versions Designed to accomodate 18-55mm single cable range take
The cleat be stacked on a quarter turn feature provided by channel twist fit versions Designed to accommodate 18-55mm single cable range take



Ellis Patents No Bolt CABLE CLEAT – Single Cable Application Selection Table

➡ The following selection table provides information to enable the specification or purchase of the correct No Bolts cable cleat – contact Thorne & Derrick for further technical information, installation advice, samples or to place an order.

Ellis Patents Cable Cleat Part Number  Cable Ø Range mm Ellis Patents Cable Cleat Dimensions Fixing Hole Weight g
W (mm) H (mm) D (mm)
NBC18-22 18 – 22 109 91 90 1 x M8 830
NBC20-26 20 – 26 109 91 90 1 x M8 815
NBC24-30 24 – 30 109 91 90 1 x M8 808
NBC28-34 28 – 34 109 91 90 1 x M8 801
NBC32-39 32 – 39 109 91 90 1 x M8 792
NBC37-47 37 – 47 109 91 90 1 x M8 758
NBC45-55 45 – 55 109 91 90 1 x M8 675



Live Cables and Health & Safety Improvements

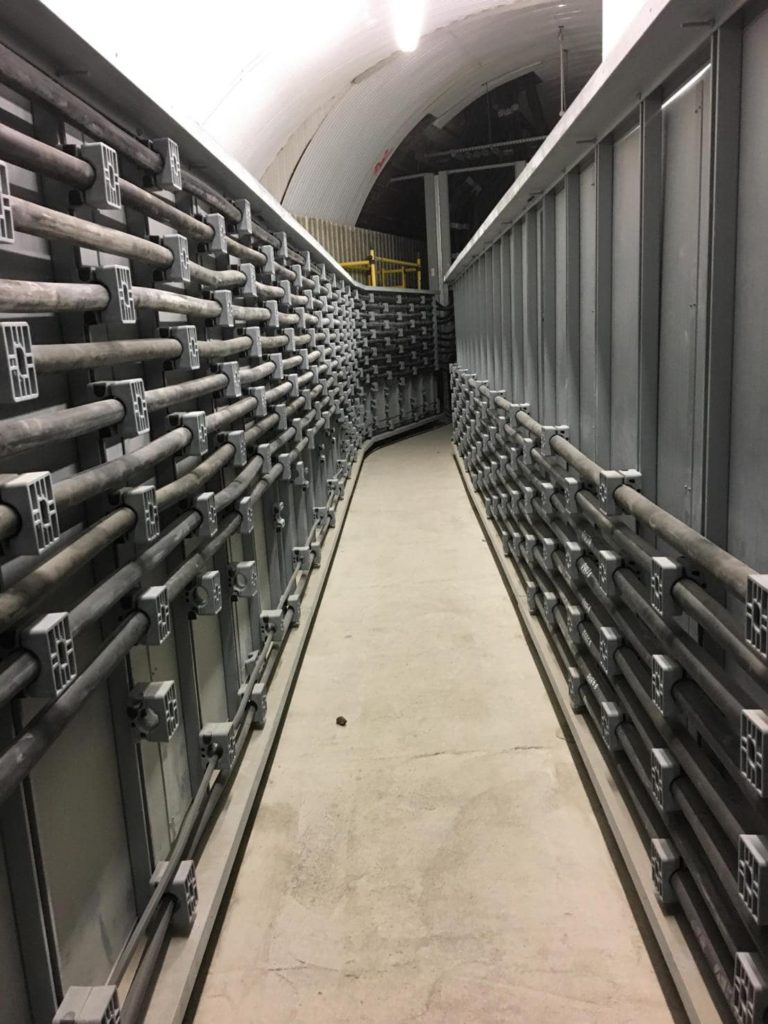

The initial problem encoutered by Network Rail was that live cables were having to be removed from cable cleats, work carried on around them, and then somehow placed back between tightly spaced upright studs at regular intervals along an entire cable run. Ellis Patents addressed the issue by designing a brand new cable cleat that could be stacked and fixed with nothing more complicated than a quarter turn fixing lock. This means additional cable runs can be added quickly and easily, without any need to tamper with existing cable installations. The rapid-fit nature of the Ellis No Bolts cleat is further enhanced by the replacement of fixing nuts with a push-fit locking mechanism that securely fastens the lower and top section of the clamp together. In addition to its PADS approval, the Ellis No Bolts cleat also meets the London Underground 1-085 approved material standard, and conforms with international cable cleat standard IEC 61914.

Cable Cleats Rail Cables Ellis Patents

Network Rail PADS Approved Cable Cleats

Ellis Patents No Bolts Cable Cleats - Dimensions

Ellis Patents No Bolts Cable Cleats – Dimensions

ELLIS PATENTS NO BOLTS CABLE CLEATS Testing Information

Should you require test samples or further specification details about No Bolts cable cleats please contact us:

Properties IEC 61914:2009 Classification Clause Units / Classification Test Data*
Cleat Type 6.1, 6.1.3 Non Metallic
Impact Resistance 6.2, 6.3.5, 9.2 Very Heavy Classification (>6.7kg @ 300mm) Pass
Resistance to Electro Mechanical Force (Undertaken at Damstra Laboratories NL) 6.4, 6.4.3, 9.5 Please contact us 71 kA peak @ 75mm phase spacing and 300mm cleat spacing. / 101kA peak @ 110mm phase spacing and 300mm cleat spacing. (PDL-16.106)
Temperature for Permanent Application 6.2 °C -40 to 40
Needle Flame Test 10.0, 10.1 Application Time (seconds) >120
Lateral Load Test 9.3 Newtons (N) 3000
Axial Movement Test 9.4 Newtons (N) Please contact us



Ellis Patents Cable Cleats

Ellis Cleats | Emperor | Vulcan | Atlas | Phoenix | Single Trefoil Quad Bundled Cables

Cable Cleats v Cable Ties

The Video produced by Ellis Patents provides compelling evidence of the need to ensure all cables are adequately supported and retained to cable containment to protect against the devastating effects of short circuit faults: 118kA Short Circuit Fault Current | 0.1 Seconds Duration | 480V Low Voltage Cables.

Data Sheets
