IEC61914 – Calculating Short Circuit Forces To Specify Compliant Cable Cleats

  • Uploaded By Chris Dodds – Thorne & Derrick Sales & Marketing Manager


IEC 61914

Why Specify Cable Cleats?

“A cable cleat is a device designed to provide securing of cables when installed at intervals along the length of the cables”

taken from IEC 61914 Cable Cleats For Electrical Installations

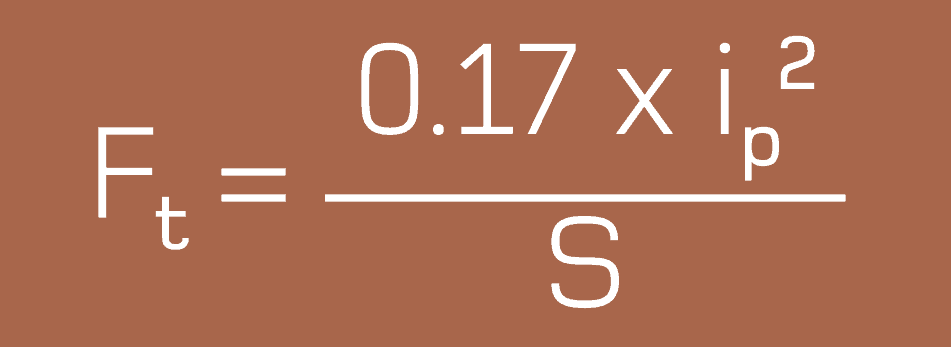

Where the system peak fault current and the cable diameter are known, the formula above, excerpted from the international standard IEC 61914, can be used to calculate the forces between two conductors in the event of a 3 phase fault in order to specify the correct type of cable cleats.

Sub-standard or under-specified cable fixings including cable cleats and cable ties can cause catastrophic damage to infrastructure, power and life – for this no scientific formula exists to calculate the costs of power outage, plus the “nuisance factor”, downtime and consequential losses of reputation. Financially, that cost is immeasurable.

♦ Cable Ties

Ellis Patents Cable Cleats vs Cable Ties (Stainless Steel)

♦ Cable Cleats

Ellis Patents Cable Cleats - Emperor Trefoil Cable Cleats (Stainless Steel)

Cable cleats are designed and specified to withstand those forces exerted by the cable in the “axial” direction in most types of cable installation, including Flexible Cable Systems and Rigid Cable Systems.

i) Flexible Cable Systems – where the LV-HV cables are “snaked” either vertically or horizontally, the cables can expand and contract freely between the fixing points.

ii) Rigid Cable Systems – where the LV-HV cables are rigidly fixed and longitudinal thermo-mechanical force is withstood by the combination of the stiffness of the cable, the cable cleat, reaction force and the rigidity of the support structure.

IEC 61914:2009 specifies requirements and tests for cable cleats and intermediate restraints used for securing cable in electrical installations.

Cable cleats provide resistance to electromechanical forces where declared – this standard includes cable cleats that rely on mounting surfaces specified by the manufacturer for axial and/or lateral retention of cables.

IEC61914 applies to the management and safe retention of all cable configurations and voltages (LV Low Voltage | MV Medium Voltage | HV High Voltage) including bundled, quadrafoil (quad cleats) or single cables installed in 3 phase formation using trefoil cable cleats.

Electrical design engineers and specifiers specify power cables from which the maximum anticipated short circuit load can be calculated.

This data enables the calculation of the force between the cable conductors in a short-circuit situation – cable cleats installed to cable containment (whether cable tray, ladder or basket) are in turn specified at the correct spacing to contain potential short-circuit forces generated by the low/high voltage power cable system.

The aspects of construction and performance covered by IEC 61914 include:

  • Material type – i.e. metallic, non-metallic or composite
  • Minimum and maximum declared service temperatures
  • Resistance to impact at the minimum declared operating temperature
  • The ability of the cleat to withstand axial slippage forces
  • Resistance to electro-mechanical forces – i.e. the ability of the cleat to withstand the forces between the cables in the event of a short-circuit
  • Resistance to UV and corrosion
  • Flame propagation

The strength of a cable cleat is often determined using a mechanical tensile test.

However, the results may be misleading because the force is applied in a slow and controlled manner, which does not replicate fault conditions.

In a short-circuit fault the forces are applied almost instantaneously and oscillate in every direction. Experience shows that a cleat that survives a mechanical tensile test at a given force will not necessarily survive a short-circuit test, even if forces are the same.

IEC 61914:2009 also provides formulae to enable the theoretical forces between conductors in the event of a short circuit to be calculated.

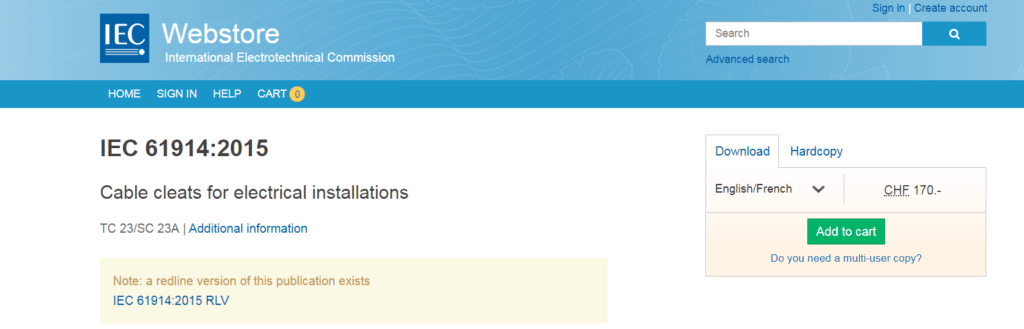

Buy A Copy of IEC 61914 from the IEC Webstore.

IEC 61914

Cleat Calculations

Where:

•             Ft = maximum force on the cable conductor in Newton/metre (N/m)

•             Ip² = peak short-circuit current in the kiloamp (kA)

•             S = distance between the centrelines of the conductors in metres (m)Cable Cleats

Once the Ft in N/m has been determined then the force for each potential cable cleat can be calculated.

For Example

Metric cable ladder typically has rungs at 300mm intervals, so cable cleat spacing is usually a multiple of this distance. So, Ft x 0.3 gives the force a cleat will see if spaced at 300mm, Ft x 0.6 for 600mm etc.

Ft x cable cleat spacing can then be compared to the maximum recommended mechanical loop strength of the cleat and then the cleat type and spacing can be selected.

Loop Strength of Cable Cleats

Cable Type Loop Strength (LS)
Alpha 15,000N
Vulcan+, Protect and Standard Duty Flexi-strap 36,000N
Emperor, Colossus and Heavy Duty Flexi-strap 63,000N
Centaur Saddle and Clamps 85,000N



The formula uses peak current, however this is often unavailable with a Root Mean Square (RMS) value given instead – to calculate the peak current from the RMS, IEC 61914-1 Low Voltage switchgear and controlgear assemblies is commonly referred to, which uses the following multiples:

  • 10 – 20kA = 2
    21 – 50kA = 2.1
    51kA = 2.2

Cleat Calculations

Example 1

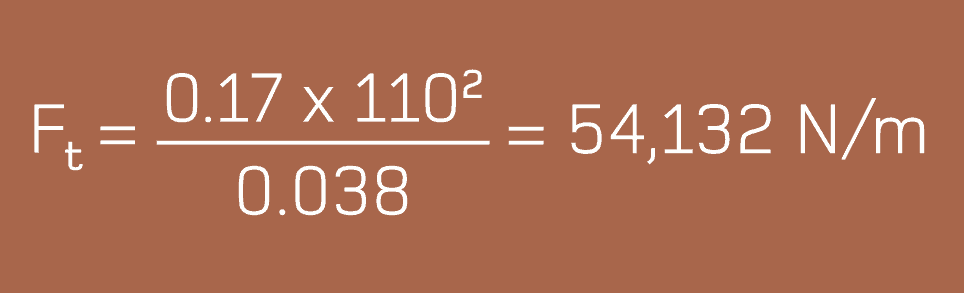

Peak fault: 110kA
Installation: Cable Ladder

Cables in trefoil with an outside diameter of 38mm.

Cable Cleats



Ft2 x Cleat Spacing  Required Loop Strength
0.3 for 300mm 16,240 N per cleat
0.6 for 600mm 32,480 N per cleat
0.9 for 900mm 48,718 N per cleat
1.2 for 1200mm 64,958 N per cleat



This force per distance can then be compared to different cleat loop strengths to ascertain the appropriate cleat and spacing requirements for specification. In this example, the Ellis
recommendation was for Vulcan+ cleats (LS: 36,000) spaced every 600mm, or Emperor cleats (LS: 63,000) every 900mm.

The overall length of the LV-HV cable run will determine the total number of cable cleats required – the spacing requirements for cleats is subject to cable formation, diameter and short circuit rating but quantity of cable cleats is a factor of the cable circuit length.

Example 2

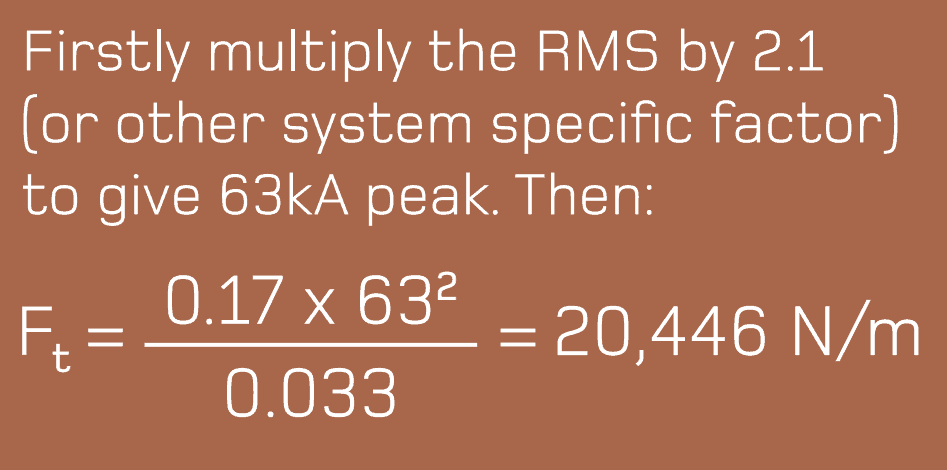

RMS fault: 30kA
Installation: Cable Ladder.

Cables in trefoil with an outside diameter of 33mm

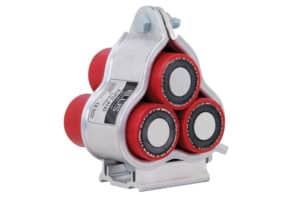

Trefoil Cable Cleats

Cable cleated in trefoil formation using stainless steel cable cleats

Cable Cleats

Ft2 x Cable Cleat Spacing  Required Loop Strength
0.3 for 300mm 6,134 N per cleat
0.6 for 600mm 12,268 N per cleat
0.9 for 900mm 18,401 N per cleat
1.2 for 1200mm 24,535 N per cleat



As with Example 1, force per distance can be compared to the cable cleat loop strengths and the appropriate cleat and spacing specified.Trefoil Cable Cleats

In this example, Alpha cleats (LS: 15,000) spaced every 600mm are the best option.

Before a cleat and spacing are finalised, two other factors should be considered irrespective of the short-circuit level.

1) It is strongly recommended that a system employs a fault rated cleat or restraint at a maximum spacing of 1500mm.

2) On bends and risers it is recommended that the maximum cleat spacing is 300mm.

IEC 61914 has provided a standardised method for conducting a short-circuit test and a definition of the criteria for a pass. It does though allow for a significant degree of latitude and so caution must be employed when interpreting results. Note should also be taken of the full report as opposed to just its headline page.

Short-Circuit Testing

There is a major difference between the short-circuit withstand requirements of a cable and the short-circuit withstand of a cable cleat.

The former is concerned with cable degradation as a result of temperature rise (thermal stress heating), while the latter is concerned with cable retention as a result of electromechanical forces.

Typical installation specifications that have been derived from the thermal withstand of the cable would require a short-circuit withstand of 63kA for 1 second or 40kA for 3 seconds.

A short-circuit test for a cable cleat does not consider this heating effect, and instead concentrates entirely on the destructive electro-mechanical forces at peak, followed by a short term decaying RMS.

The international standard IEC 61914 requires a short-circuit test duration of just 0.1 second. This equates to five complete cycles, by which time the true strength of a cable cleat will be known.

IEC61914 notes “a cable cleat is provided with a means of attachment to a mounting surface but does not rely on an unspecified mounting surface for the retention of the cables. Examples of mounting surfaces that may be specified are ladder, tray, strut or rail, wire and beam. Where declared, cable cleats provide resistances to electromechanical forces.”

Ellis Patents Cable Cleats

All Ellis Patents cable cleats have been tested for both axial and lateral loads – this ensures the cleats will support the weight of all cable voltages including LV Low Voltage, MV Mediujm Voltage or HV High Voltage.

➡ See the complete range of Ellis Patents Cable Cleats

Ellis Patents Cable Cleats

Ellis Patents Cable Cleats

♦ Further Reading

CIGRE Technical Brochure TB194 – Mechanical Forces in Large Conductor XLPE Cables



CPD Course
Learn More About Cable Cleats

Ellis Patents the world’s leading cable cleat manufacturer has taken its UK accredited Continuing Professional Development (CPD) course – Cable cleats: a device for short circuit protection– online so that it can be used by engineering professionals, wherever they are in the world, as part of their on-going programme of career development and learning.

Mod 1. Introduction – includes a brief history of standards plus the importance of detailed specification to ensure the correct cable cleats and fixings are chosen for the environmental conditions and applications.

Mod 2. Electrical Theory – learn more about short circuit faults, why they occur and their impact on cable systems. Also, how to calculate the forces involved and therefore how to ensure the correct strength of cable cleats are specified.

Mod 3. Materials – different cable applications require different solutions. Learn how sunshine, pollution and marine environments can cause problems if the wrong cable cleat materials are specified. How to avoid bimetallic issues and how to prevent corrosion. The importance of fire safety and low emissions is also studied.

Mod 4. Testing Cleats – some exciting video clips of when things go wrong, and of good engineering practice. Appreciate the international standards that apply to cable cleat design and the rigorous procedures involved.

Mod.5 Cable Cleat Applications – an overview of some cable cleating applications and interesting special cable fixing projects.

CLICK & REGISTER HERE  ➡
