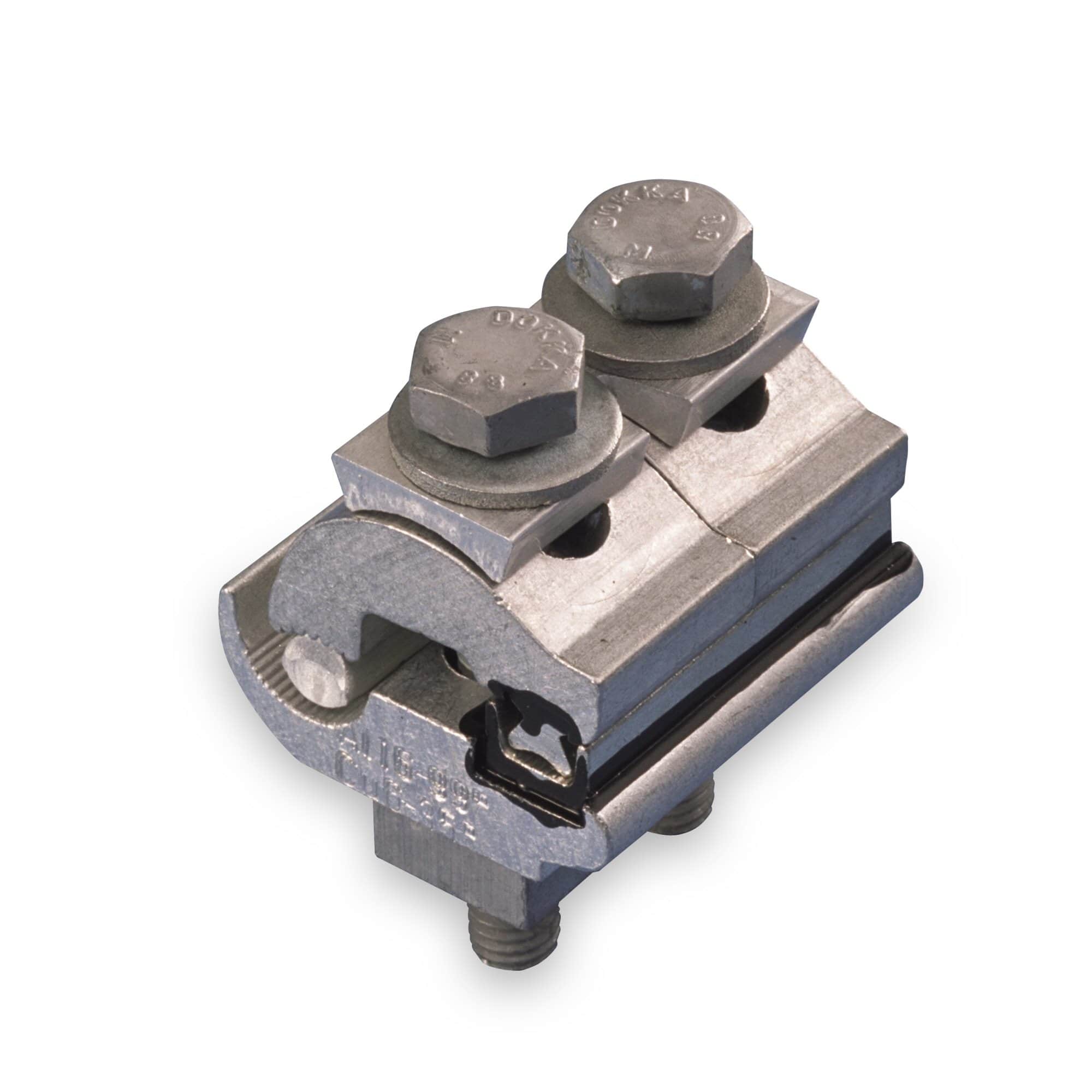

ENSTO KG44 Busbar Connectors
BUSBAR Connectors
Overhead Line EquipmentÂ
Low Voltage LV Overhead Lines
- ENSTO KG44
- GTIN 6418677400261
- Conductor Size – Aluminium: 16 – 120 mm²
- Conductor Size – Copper: 6 – 35 mm²
- Conductor Diameter – Aluminium: 4.4 – 12.8 mm
- Conductor Diameter – Copper: 2.8 – 7.5 mm
- Max. Thickness of Bar: 7.5 mm
- Weight: 0.17 kg
- See the full range of ENSTO Busbar Connectors
ENSTO KG44 busbar connector is used for connecting aluminium or copper conductors to aluminium busbars or tin plated copper busbars in distribution boards, disconnectors, medium voltage and low voltage transformer bushings. Max thickness of the bar 7.5 mm.
