ENSTO SL11.118 Insulation Piercing Connectors
Insulation Piercing Connectors
Overhead Line Equipment
Low Voltage LV Overhead Lines
- ENSTO SL11.118
- GTIN 6418677403538
- Main Conductor: Aluminium 10 – 95 mm² Copper 1.5 – 70 mm²
- Branch Conductor: Aluminium 10 – 95 mm² Copper 1.5 – 70 mm²
- Conductor Diameter: 3 – 16 mm
- Tightening Torque: 26 Nm
- Weight: 0.12 kg
- Connectors per Pack: 50
- See the full range of ENSTO Insulation Piercing Connectors

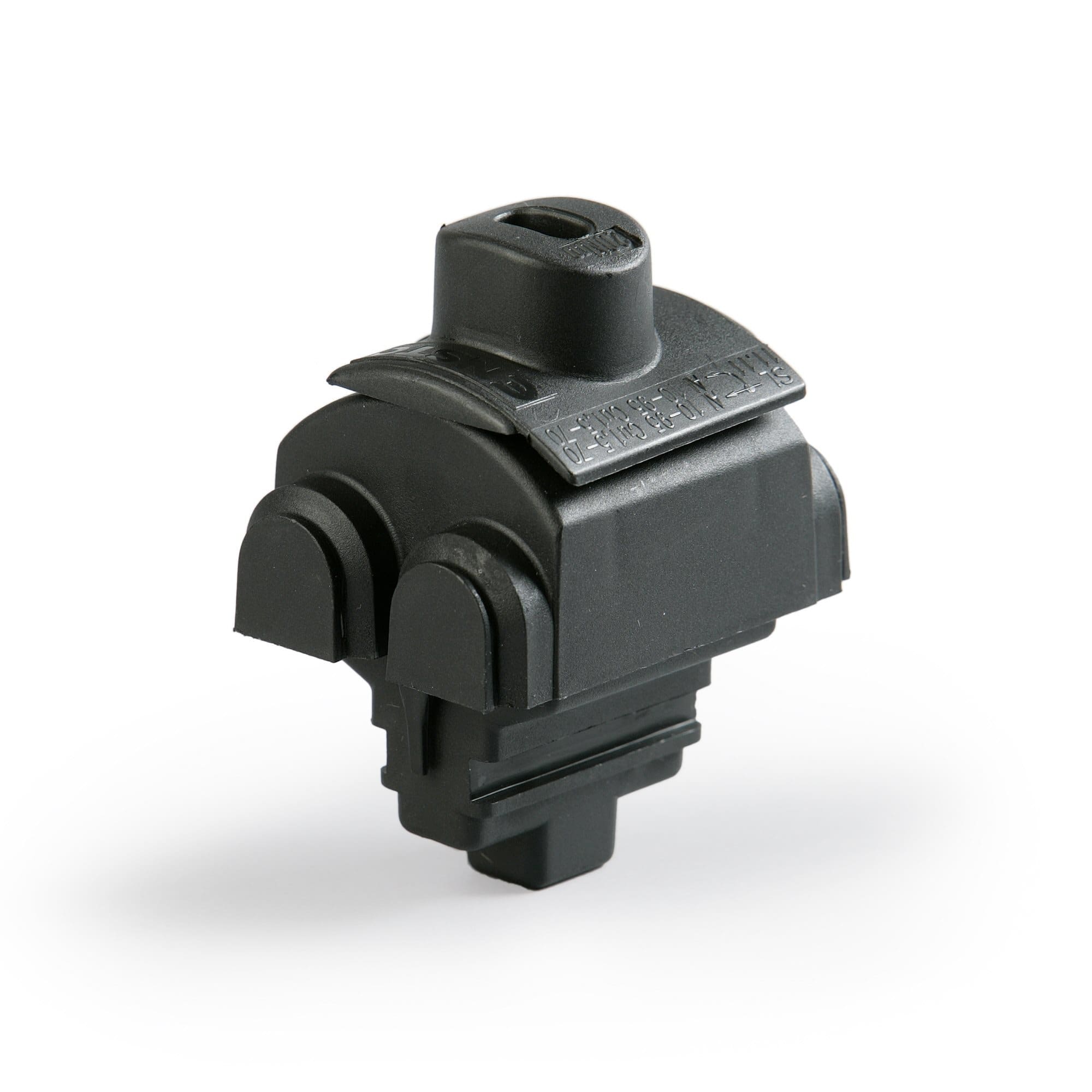

ENSTO SL11.118 is an insulation piercing connector for all combinations of aluminium and copper main and branch connectors. SL11.118 is for PEX insulated conductor.
They are made from hard, corrosion resistant aluminium alloy with tin plated teeth. The connectors are waterproof and tested according to international standards.
