ENSTO SLIW50 Insulation Piercing Connectors


Insulation Piercing Connectors

Overhead Line Equipment

Low Voltage LV Overhead Lines

  • GTIN 6438100303921
  • Main Conductor: 10 – 50 mm²
  • Branch Conductor: 1.5 – 10 mm²
  • Conductor Diameter: 6.1 – 12.5/3 – 7 mm
  • Weight: 0.05 kg
  • Connectors per Pack: 120
  • See the full range of ENSTO Insulation Piercing Connectors

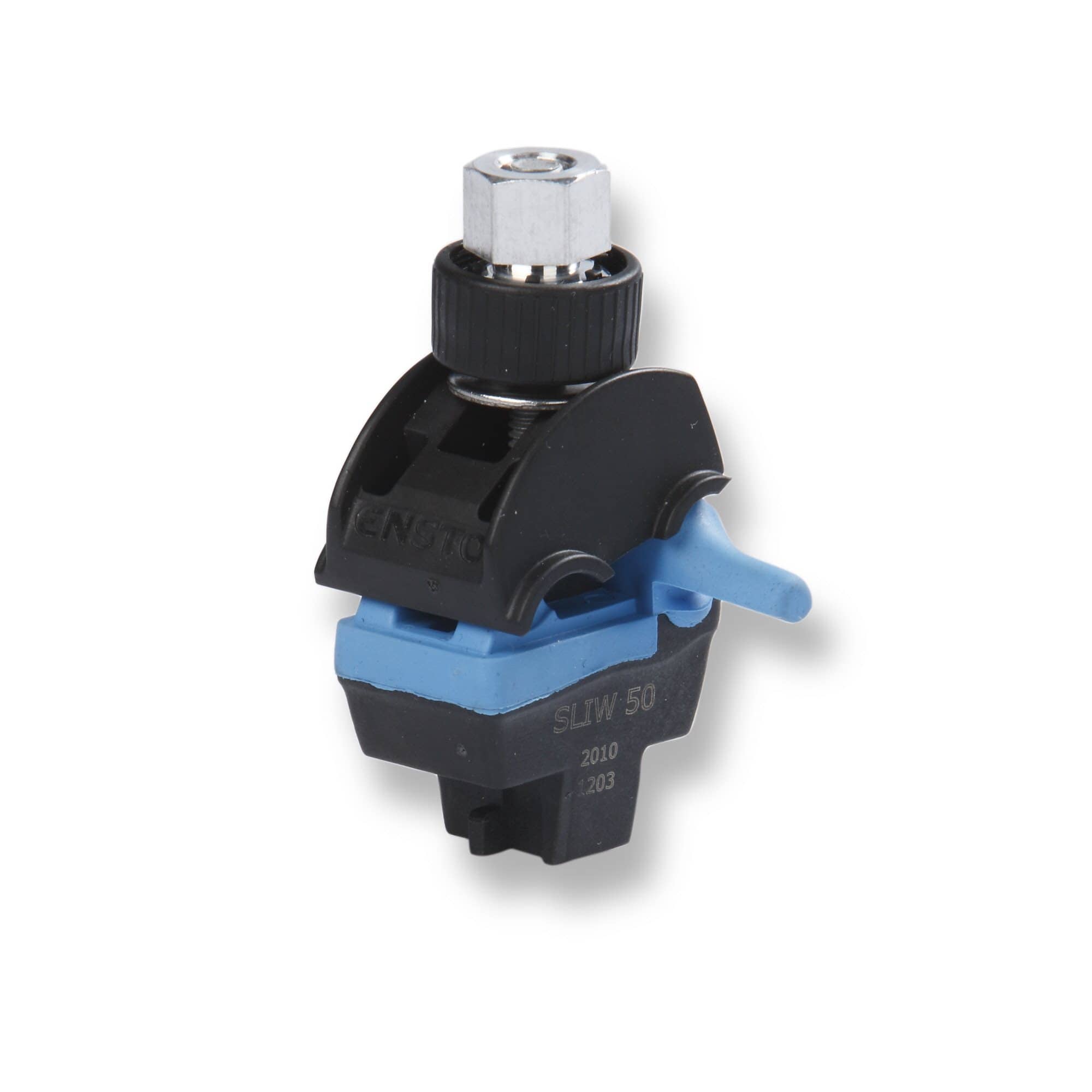

ENSTO SLIW50ENSTO SLIW50 is an insulation piercing connector for use with insulated aluminium or copper conductors. The fully insulated bolt provides safe live overhead line (OHL) working.

Both main and branch conductor insulations are pierced with a single bolt action.

The design of the connectors enables hot line installation without peeling the insulation from the conductor. Test voltage 6 kV/50 Hz/1 min in water.
