Euromold 672T1 Interface D Bushing 11kV 24kV

Euromold 672T1 Equipment Bushing 11kV 24kV

Interface D Bushing

Euromold 672T1 is an Interface D bushing specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)

Euromold 672T1 bushings are compatible with tee connector (676LRA) and plug-in type epoxy bushings – all suitable for use with Interface D type bushings on SF6 gas-insulated switchgear.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type D interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface D
  • Maximum Operating Current – 1250A (Amps)
  • Voltage Classes – 12kV 24kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 672T1 Specification

Euromold equipment
bushing
type
Voltage
Um
(kV)
Current Ir
(A)
672T1 12 1250
K672T1 24 1250

To order the equipment bushing, specify the type. The bushings can be supplied for use in potentially explosive atmospheres (for 12 kV max.). Order: -/ATEX.

Euromold 672T1 Equipment Bushing 11kV 24kV - Design

Euromold 672T1 Equipment Bushing 11kV 24kV – Design

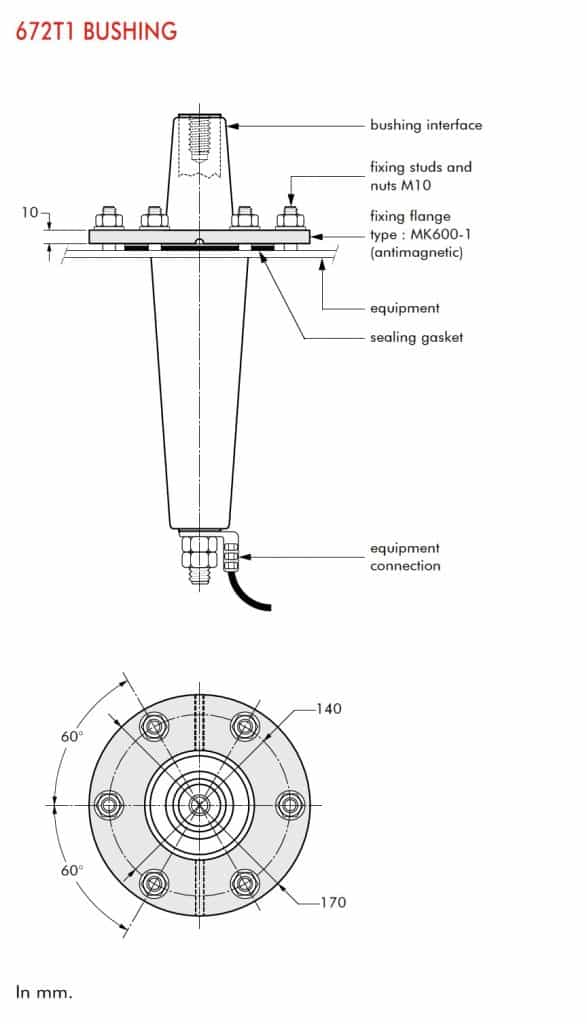

EUROMOLD 672T1 FIXINGS FOR BUSHINGS

Euromold 672T1 Fixing For Equipment Bushings
