Euromold 672TBC In-Air Bushing 11kV 24kV

Euromold 672TBC In-Air Bushing 11kV 24kV

Euromold 672TBC is a bushing specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)

Euromold 672TBC bushings are compatible with tee connector (676LRA) and plug-in type epoxy bushings – all suitable for use with Interface D type bushings on SF6 gas-insulated switchgear.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type D interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface D
  • Maximum Operating Current – 1250A (Amps)
  • Voltage Classes – 12kV 24kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 672TBC Specification

Euromold equipment
bushing
type
Voltage
Um
(kV)
Current Ir
(A)
672TBC 12 1250
K672TBC 24 1250

To order the equipment bushing, specify the type. The bushings can be supplied with for use in potentially explosive atmospheres (for 12 kV max.). Order: -/ATEX.

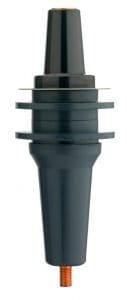

Euromold 672TBC In-Air Bushing 11kV 24kV - Design

Euromold 672TBC In-Air Bushing 11kV 24kV – Design

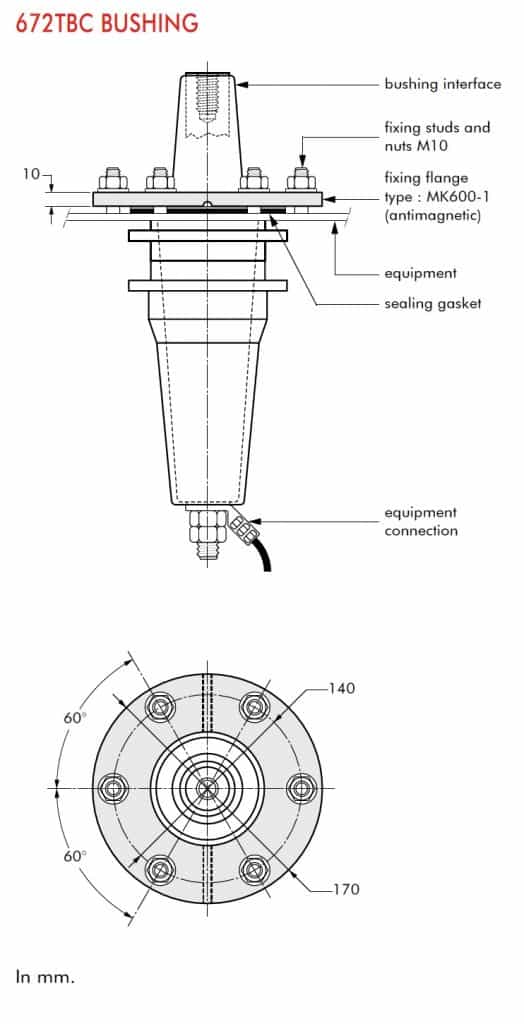

EUROMOLD 672TBC FIXINGS FOR BUSHINGS

Euromold 672TBC Fixing In-Air Bushings
