Euromold 900AR is a bushing specified to terminate and connect medium/high voltage cables in the following voltage classes:

  • 6/10 (12) kV
  • 6.35/11 (12) kV
  • 8.7/15 (17.5) kV
  • 12/20 (24) kV
  • 12.7/22 (24) kV
  • 18/30 (36) kV
  • 19/33 (36) kV
  • 20.8/36 (42) kV

Euromold 900AR bushings can be supplied with a coupling connector (909PB) or as a tee connecter (909TB or 944TB) – all suitable for use with Interface F type bushings on SF6 gas-insulated switchgear.

Connector accessories include: dead-end receptacle, dead-end plug, stand-off plug and earthing plug for type F interfaces.

  • Manufacturer – Nexans Euromold
  • MV HV Equipment Bushing Connector – Interface F
  • Maximum Operating Current – 630A, 1250A or 2500A (Amps)
  • Voltage Classes – 12kV 24kV 36kV 42kV Maximum
  • Terminate & Connect Cables – Polymeric XLPE EPR
  • Applications – MV HV Switchgear, Transformers, Motors

➡ See complete range of Nexans Euromold Connectors

EUROMOLD 900AR Specification

Euromold equipment
bushing
type
Interface Type Voltage
Um
(kV)
Current Ir
(A)
900AR-1 F3 42 1250
900AR-2 F2 42 630
900AR-3 F1 36 2500
900AR-4 F1 36 2500

To order the equipment bushing, specify the type. The bushings can be supplied with an earth jumper (/J) or an earth plate (/GS). E.g. 900AR-4/GS.

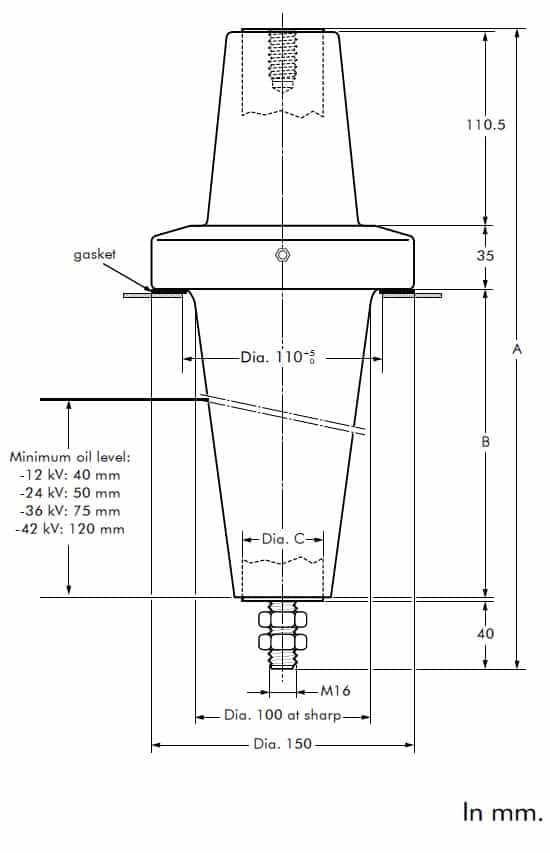

Euromold 900AR Equipment Bushing 11kV 33kV 42kV - Design
