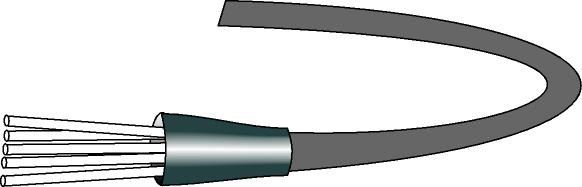

Heatshrink Tube

Thin Wall Flame Retarded 2:1 Shrink Ratio

Heatshrink Tubes

The below table features technical specification for heatshrinkable polyolefin tube with thin wall and flame retarded 2:1 shrink ratio – typically installed using heat shrink gas torches to provide cable insulation, repair and identification.

Other Heat Shrink Cable Joints For Rail Cable Connections

Cable accessories with Network Rail approvals manufactured by 3M Electrical and using cold shrink are also available to joint, terminate, insulate and repair damaged cables.

PART NUMBER	P.A.D.S CAT. NO	EXPANDED DIAMETER	RECOVERED DIAMETER	STANDARD LENGTH	RECOVERED THICKNESS	HEAT SHRINK COLOUR RANGES
TWM 48	54/73439	4.8mm	2.4mm	60mtr	0.51mm	RED YELLOW BLUE BLACK CLEAR GREEN/YELLOW
TWM 64	54/73440	6.4mm	3.2mm	60mtr	0.64mm
TWM 95	54/72441	9.5mm	4.8mm	60mtr	0.64mm
TWM 127	54/73442	12.7mm	6.4mm	60mtr	0.64mm
TWM 191	54/73443	19.1mm	9.5mm	60mtr	0.76mm
TWM 254	54/44058	25.4mm	12.7mm	30mtr	0.89mm
TWM 381	54/44059	38.1mm	19.1mm	30mtr	1.02mm
TWM 508	54/44060	50.8mm	25.4mm	30mtr	1.14mm

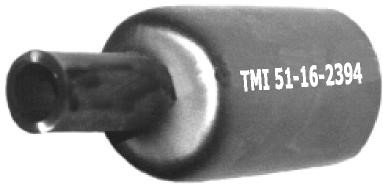

Heatshrinkable Polyolefin Tube

Thick WalL 3:1 Shrink Ratio sealant lined

Heatshrink Thin & Thick Wall Tube

The below table features technical specification for heatshrinkable polyolefin tube with thick wall 3:1 shrink ratio sealant lined.

PART NUMBER	P.A.D.S CAT. NO	EXPANDED DIAMETER	RECOVERED DIAMETER	STANDARD LENGTH	RECOVERED THICKNESS	HEAT SHRINK COLOUR RANGES
TMI 12-3	54/73436	12mm	3mm	1500mm	2.0mm	BLACK ONLY
TMI 22-6	54/73431	22mm	6mm	1500mm	2.5mm
TMI 33-8	54/73432	33mm	8mm	1500mm	3.2mm
TMI 45-12	54/73433	45mm	13mm	1500mm	4.1mm
TMI 55-16	54/73434	55mm	16mm	1500mm	4.1mm
TMI 69-22	54/73435	69mm	22mm	1500mm	4.1mm
TMI 95-30	54/73437	95mm	30mm	1500mm	4.3mm
TMI 130-36	54/73430	130mm	36mm	1500mm	4.3mm
TMI 160-50	—	160mm	50mm	1500mm	4.3mm

Rail Cable Accessories, Electrification & Installation Equipment

Thorne & Derrick stock and distribute an extensive range of 400V-33kV Rail Cable Accessories & Power Distribution Sytems including feeder pillars to contractors undertaking Low Voltage Power Distribution, HV Electrification & Substations, DC Traction & Networks, OLE and Track Feeder Cable Renewals – complete range of Network Rail PADS approved track terminations, cable joints, cable repair and connection products up to 25kV, including 3M Cold Shrink, Pfisterer CONNEX and Nexans Euromold products.

Full range of Cable Pulling Equipment & Products to ensure safe and efficient of rail cables in to cable ducts and containment infrastructure including cable troughs.
