HV Circuit Breaker Monitors By Franklin Electric
The Incon Optimizer 3, by Franklin Electric, brings over 30 years of breaker monitoring experience – monitoring circuit breaker performance and SF6 gas density.
This HV Circuit Breaker Monitor identifies SF6 leaks sooner and is in full compliance with the SF6 regulatory. There are many applications for the Optimizer 3, including high voltage circuit breakers, generators, transmission, distribution and circuit switchers.
What is SF6 gas?
Sulfur hexafluoride (SF6) is an incombustible gas and is nontoxic. However, SF6 is a highly potent greenhouse gas with the warming potential 23,900 times greater than CO2. Rapid suffocation can also be caused. Sulfa hexafluoride is mainly used as insulation in electrical transmittance systems and electrical distribution devices. Find out more about SF6 Gas.

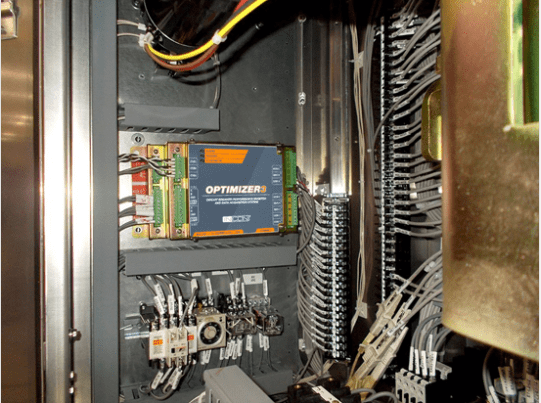

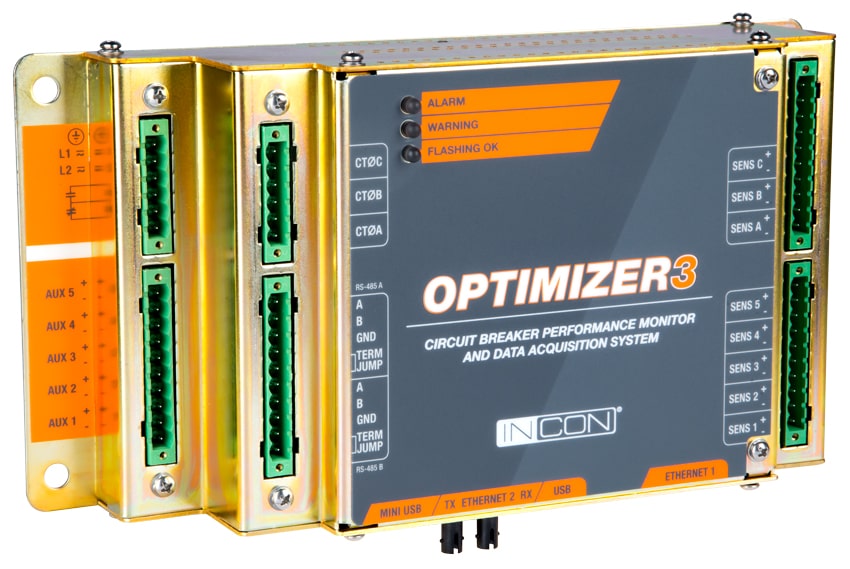

Incon Optimizer 3 Circuit Breaker Monitor
Incon Optimizer 3 Features and Capabilities
- Ethernet RJ-45 or fibre communication
- Master & slave RS485 connections
- DNP 3.0 offers over 1000 points
- Multi-Level access passwords
- Secure HTTPS web-server
- External antenna
- Web application
- Five powered 4-20 ma sensor inputs
- AC or DC supply voltage is logged
- Trip coil identified in logged operation
- Easily configured for IPO or ganged mechanisms
- Separate reporting of fault & switching operations
- Connections made to pluggable Phoenix connectors
- Spring/compressor run time is logged, monitored & alarmed
Support for sensor types
- SF6 compensated pressure – analog / LenSense
- SF6 Density – digital / analog
- AC/DC current & voltage
- Hydraulic pressure
- Heater function
- SF6 dew point
- Cabinet door
- Temperature
- Air pressure
Additional features
- Five Control Signal Inputs:Â
-
-
- 52a, 52b
- Closecoil
- Tripcoil1, Tripcoil2
-
-
- Built-in temperature sensor:
-
-
- Ambient temp is measured & logged
-
-
- Three dual-mode, powered sensor inputs:
-
-
- 4-20 ma or digital
-
-
MODEL |
DESCRIPTION |
| OM3D | Circuit Breaker Monitor with SF6 Density |
| OM3D-F | CB Monitor with SF6 Density & Fiber Optic Interface |
| OM3D-W | CB Monitor with SF6 Density & WiFi Communication |
POWER SUPPLY |
|
| Nominal Input Voltage: | 110 to 370 Volts DC / 85-264 Volts AC 50/60 Hz |
| Power Dissipation:
|
100 W maximum
|
CURRENT INPUTS |
|
| VA Burden @ 20% Full Scale: | 0.1 VA |
| Continuous Input Current: | CT Full Scale Rating |
| Full Scale Peak Current:
|
CT Full Scale Rating
|
CURRENT TRANSFORMERS |
|
| Ranges: | 0-20, -30, -50, -100, -160, -250, -400, -800 Amps |
| Accuracy:
|
± 1% of Full Scale
|
CONTROL SIGNAL INPUTS |
|
| Auxiliary Control Signal: | 48 to 250 Volts DC (5 ea.) |
| Input Resistance:
|
500K Ohms
|
CURRENT DATA ACQUISITION |
|
| Event Duration: | 10 Cycles Nominal |
| Line Frequency: | 50/60 Hz Programmable |
| Sampling Rate Per Phase:
|
32 times per line cycle
|
SF6 INPUTS |
|
| Sensor Type: | “True Density” or Temperature-Compensated Pressure |
| Sensor Signal: | 4-20 mA Analog or Digital |
| Sensor Power: | 20 VDC (Provided) |
| Measurement Range: | 0-60 Grams/Liter, (-50 to 80 °C) |
| Sampling Rate:
|
Once per second
|
RELAY OUTPUT |
|
| 1 each, Form C:
|
3A at 250 VAC or 30 VDC
|
ISOLATION |
|
| CT Input Phase to Enclosure: | 1500 Vrms |
| CT Input Phase to Enclosure: | 2500 Vrms |
| Auxiliary Input to Enclosure: | 1500 Vrms |
| Relay Contacts to Enclosure:
|
1500 Vrms
|
SURGE WITHSTAND |
|
| Exceeds:
|
IEEE 472-1972 & ANSI C37.90a
|
USER INTERFACE |
|
| LED Panel Indicators: | System OK, Warning, Alarm |
| Computer Ports: | RS-485 Full Duplex (2 ea.), Ethernet, Mini-USB, USB 2.0 |
| Protocols:
|
DNP 3.0, Web Server (TCP/IP)
|
OPERATING ENVIRONMENT |
|
| Temperature: | -40 to 150 °F (-40 to 65 °C) |
| Humidity:
|
85% non-condensing, maximum
|
WEIGHT AND DIMENSIONS |
|
| Dimensions: | 184L x 146W x 76H mm (7.25L x 5.75W x 3.00H in.) |
| Shipping Weight:
|
2.25 kg (5 lbs.)
|
