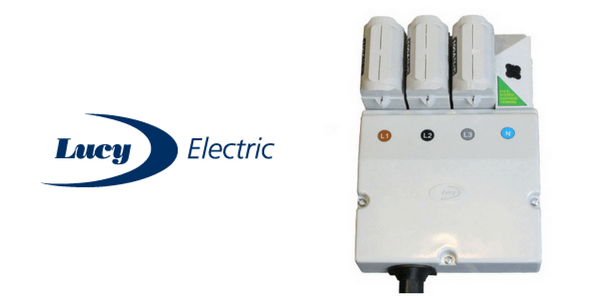

Lucy House Service Cut Out Triple Pole CNE – 60/80A

Lucy House Service Cut Outs Triple Pole CNE are available in 60/80A ratings – house service cut outs triple phase accept BS 1361 cylindrical cartridge fuses, have combined Neutral and Earth blocks and are supplied with cable protection covers.

Lucy House Service Cut Out Triple Pole CNE

LUCY HOUSE SERVICE CUT OUT Triple POLE CNE

FEATURES & BENEFITS

Incoming and outgoing Phase and Neutral terminations accept up to 35sqmm conductors in either copper or aluminium, stranded or solid
Silver plated Phase terminal contact block
Serrated bores on Phase/Neutral terminal contact blocks with two M8 hexagon drive screws per conductor
Earth / Timer connections on Earth block accept up to 25sqmm conductors
Safety interlocked mouldings. Neither the N/E terminal chamber cover nor the cable cover itself can be removed until the right hand fuse carrier has been withdrawn
Sealing wire facility
Blanking plugs for unused cable entries provided
Choice of bottom or side cable entries in cable cover
Additional accessories include cable cover, cable sealing chamber and busbar extensions

LUCY HOUSE SERVICE CUT OUT triple POLE CNE – 60/80A

TECHNICAL SPECIFICATION

Lucy House Service Cut Out Triple Pole Rating
60/80A	57 x 22mm Type IIa BS 1361
Construction
Body, base and cover	Glass reinforced polyester DMC in RAL 7035 colour
Terminal blocks	Brass (silver plated on Phase)
Cable shrouds	Synthetic nitrile rubber
Performance
Rated voltage	240/415V a.c
Supply frequency	50-60Hz
Flammability rating	UL94 VO, self-extinguishing 30 seconds at 960°C
Recommended terminal torque	2.25Nm
Fuse short circuit rating	33kA at 0.3pf
Dimensions
Height	250mm
Width	181mm
Depth	96mm
Weight (excluding fuse)	1.92kgs
