Lucy Zodion Fortress Feeder Pillars – THM0024687

Lucy Zodion Feeder Pillars (Double Door)

Lucy Zodion THM0024687

Lucy Zodion double door feeder pillars are manufactured from galvanised steel (with optional painted versions) for LV power distribution and control. The feeder pillars are available from the Fortress range of sizes including Lucy Zodion THM0024687.

Manufacturer: Lucy Zodion

Range: Fortress

Feeder Pillar Stock Code (3mm Galv) – Lucy Zodion Fortress Feeder Pillars THM0024687
Lucy Zodion Double Door Feeder Pillar Size Code – 26
Height (H) Above Ground –1600mm
Root Section (R) – 380mm
Width (W) – 1750mm
Depth (D) – 450mm
Door Opening Height (DH) – 1280mm
Door Opening Width (DW) – 1648mm
Working Depth (WD) – 375mm
Backboard Size (WxH) – 1725 x 1385mm
Weight (kg) (3mm thickness) – 269kg

The Lucy THM0024687 pillar is supplied as standard in mild steel with hot dip galvanised material – this feeder pillar is also available Painted Grey (Lucy Zodion Fortress THM0024688).

Feeder Pillar Specification

• Long life solid stainless steel hinge blocks on all feeder pillars
• Three vandal resistant fully flush hinges per pillar door
• Two Lucy wedge locks fitted as standard for anti-vandal protection
• Backboard made from 18mm treated exterior grade plywood
• Detachable roof with lifting hooks on pillar body
• ‘Danger’ warning label fitted in door recess
• Detachable root section finished in bitumen enriched paint
• Earth lead between pillar body and door
• High quality UV resistant paint to an average thickness of 60 microns
• Door seal to IP65

Order Code Lucy Zodion Fortress Feeder Pillars THM0024687.

From the largest UK Stocks Thorne & Derrick can deliver standard galvanised steel feeder pillars from the Fortress range on a 2-3 day lead time – overnight delivery options.

Pre-wiring & Testing
Design Services
Bespoke & Specialist Products
Painted Pillars
Maintenance Packages
Special Locks & Electric Heaters

Customer Service & Support | should you require technical support or guidance on the standards for installation of feeder pillars including cable access, sealing ducts, concrete foundation details, backfill procedure, cable pulling and wiring drawings.

➡ Lucy Zodion also offer a range of single door feeder pillars.

Lucy Titan & Trojan

Lucy Trojan Isolators

Street Lighting Cut-outs & Isolators

Compatible with Lucy Zodion feeder pillars for Low Voltage Power Distribution the Lucy Titan range of street lighting cut-outs are available as primary or secondary types for single pole or double pole isolation of cables with conductors up to 25sqmm.

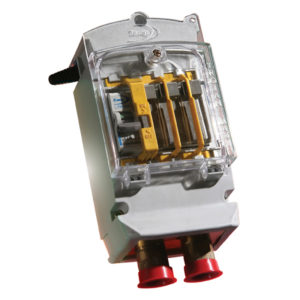

The Lucy Trojan range of street lighting isolators, compatible with Trojan cut-outs, provide double pole isolation with extension troughs for a range of cable terminations and cable gland plates to suit armoured power cables (XLPE SWA) – for the repair, diversion or extension of power cables we stock armoured cable joints in resin cast, heat shrink and Cold Shrink.
