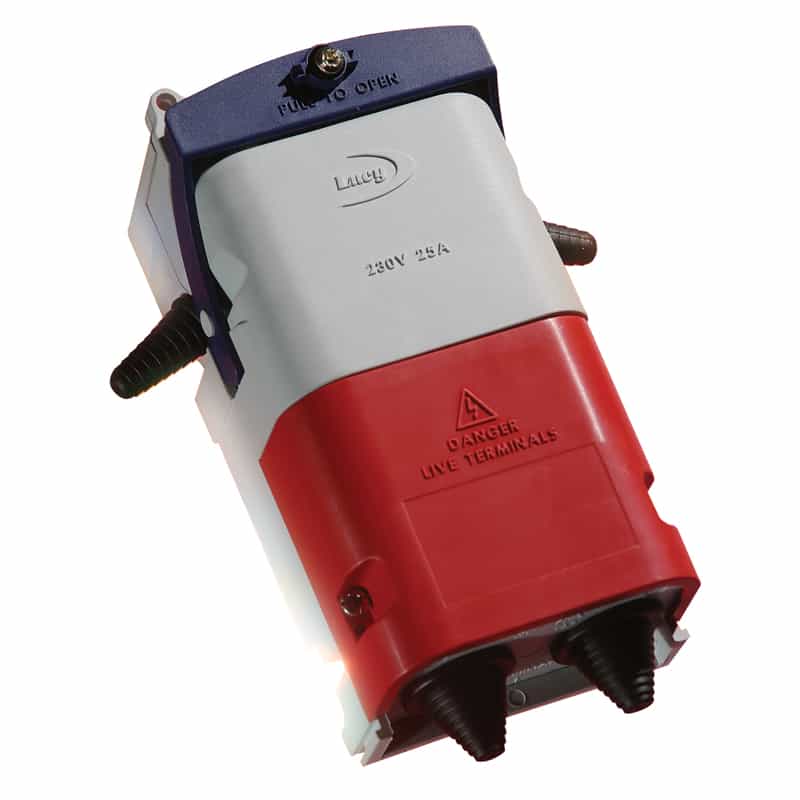

Lucy Titan

Street Lighting Cut Outs

Lucy Titan street lighting cut outs are suitable for single or double pole isolation and are available with a wide range of configurations and options – Titan variants are manufactured from high quality engineering thermoplastics making them a wise choice for use in demanding locations.

Street lighting cut outs are compact and robust in design and offer an extensive range of cable terminations demanded by street lighting engineers.

Lucy Titan cut outs provide increased access to allow easier cabling for incoming terminations – the new model cut-out includes 2 x mini extension troughs to accommodate 2 and 3 way cable entries and a new triple entry extension trough.

Street Lighting Cut Outs Range

  • Single or double pole cut outs
  • Single or twin fuse cut outs
  • Brass or insulated gland plate options
  • Extensive trough options
  • 1 up, 2 up, 1 up 1 down circuit arrangements
Street Lighting Cut Outs - Titan Single & Double Pole Cut Outs – Lucy Zodion

Lucy Titan Single & Double Pole Cut Outs – Lucy Zodion


Street Lighting Cut Outs

Titan Single & Double Pole Cut Outs

Features & Benefits

  • Designed and tested in accordance with BS 7654:1997 and IEC/EN 60947-Part 1
  • Accepts fuses to IEC 269-1 and BS 88 Part 1, AC16 tag type
  • Moulded in high performance thermoplastics
  • IP43 rating street lighting cut outs
  • Detachable terminal block in extension trough facilitates termination of heavy duty cables
  • Electroplated brass terminal blocks accept conductors up to 25mm²
  • Terminal blocks for 1 to 3 conductors
  • Stud and lug connections
  • Serrated bores in terminals to ensure good contact with all conductor types
  • Red terminal block cover for safety
  • Padlock and sealing wire facilities provided
  • Captive screw on cam lever

TITAN SINGLE & DOUBLE POLE CUT OUTS

Product Specification

Should you require any technical support and advise in order to select the correct street lighting cut out please do not hesitate to contact us.

Lucy Street Lighting Cut Out Part Number Fuseways Components Description Cable Entry Image
Titan2 (NT06) double pole single fuse cut out, complete with earth block, and brass plate with:
THM0006032 1 2 x 20mm grommets NT06-TT-NG12 Cable Entry Titan2 (NT06) Cut Outs
THM0010170 1 2 x BW20 brass glands NT06-TT-NG18 Cable Entry
THM0010121 1 2 x 20mm tubes NT06-TT-NG25 Cable Entry
THM0031147 1 2 x 25mm tubes NT06-TT-NG26 Cable Entry
Titan2 (NT06) double pole single fuse cut out, complete with earth block, small extension trough, and brass plate with :
THM0010657 1 2 x 20mm grommets NT06-TT-NEF-NG12 Cable Entry Titan2 NT06 Cut-outs
THM0017257 1 2 x 20mm grommets NT06-TT-NEF-NG13 Cable Entry
THM0013678 1 2 x BW20 brass glands NT06-TT-NEF-NG18 Cable Entry
THM0010211 1 2 x 20mm tubes NT06-TT-NEF-NG25 Cable Entry
THM0010212 1 2 x 25mm tubes NT06-TT-NEF-NG26 Cable Entry
Titan2 (NT06) double pole single fuse cut out, complete with earth block, large extension trough, and brass plate with :
THM0036546 1 2 x 25mm grommets NT06-TT-NED-NG13 Cable Entry Titan2 (NT06) Cut-outs
THM0037191 1 2 x 20mm tubes NT06-TT-NED-NG25 Cable Entry
THM0028975 1 2 x 25mm tubes NT06-TT-NED-NG26 Cable Entry
THM0016546 1 2 x BW25 glands and 1 x 25mm grommet NT06-TT-NEE-NG82 Cable Entry
Titan2 (NT08) double pole twin fuse cut out, complete with earth block, and brass plate with :
THM0009901 2 2 x 20mm grommets NT08-TT-NG12 Cable Entry Titan2 (NT08) Cut-outs
THM0012689 2 2 x BW20 brass glands NT08-TT-NG18 Cable Entry
THM0013303 2 2 x 20mm tubes NT08-TT-NG25 Cable Entry
THM0014521 2 2 x 25mm tubes NT08-TT-NG26 Cable Entry
Titan2 (NT08) double pole twin fuse cut out, complete with earth block, small extention trough, and brass plate with :
THM0010563 2 2 x 20mm grommets NT08-TT-NEF-NG12 Cable Entry Titan2 NT08 Cut-outs
THM0029334 2 2 x 25mm grommets NT08-TT-NEF-NG13 Cable Entry
THM0014659 2 2 x BW20 brass glands NT08-TT-NEF-NG18 Cable Entry
THM0011708 2 2 x 20mm tubes NT08-TT-NEF-NG25 Cable Entry
THM0010841 2 2 x 25mm tubes NT08-TT-NEF-NG26 Cable Entry
Titan2 (NT08) double pole twin fuse cut out, complete with earth block, large 2-way extention trough, and brass plate with :
THM0037298 2 2 x 25mm grommets NT08-TT-NED-NG13 Cable Entry Titan2 (NT08) Cut-outs
THM0037316 2 2 x 20mm tubes NT08-TT-NED-NG25 Cable Entry
THM0037323 2 2 x 25mm tubes NT08-TT-NED-NG26 Cable Entry
Titan2 (NT10) double pole twin fuse cut out, complete with earth block, 3-way extension trough, and brass plate, with :
THM0027135 2 3 x 25mm tubes NT10-NED-NEE-NT6-NG61 Cable Entry Titan2 (NT10) Cut-outs
THM0012093 2 3 x 20mm grommets NT10-NEC-NT6-NG68 Cable Entry
THM0010786 2 2 x 25mm grommets, 1 x 20mm grommet NT10-NEC-NT6-NG52 Cable Entry
